Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
MORI SEIKI - NL 2500 SY/700DE-TUR-MOR-2004-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used MORI SEIKI NL 2500 SY/700 For Sale | gindumac.com

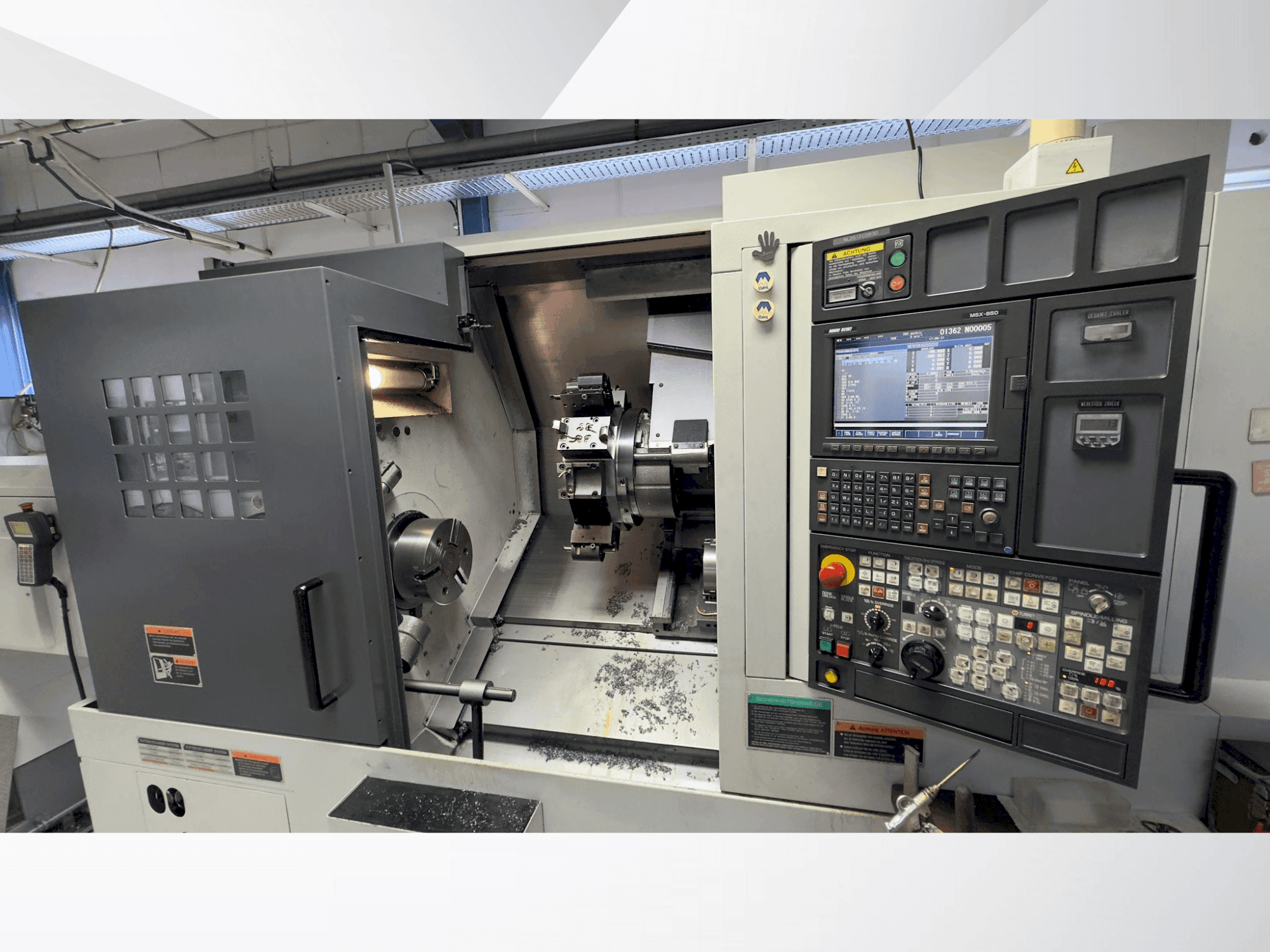

This 4-axis MORI SEIKI NL 2500 SY/700 turn-mill centre was manufactured in 2004. Ideal for precision machining, it features a robust design and advanced control system. Consider the opportunity to buy this MORI SEIKI NL 2500 SY/700 turn-mill centre. Contact us for more information.
Overview
- brand: MORI SEIKI
- year: 2004
- MODEL: NL 2500 SY/700
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
Technical Information - MORI SEIKI NL 2500 SY/700
Dimensions
- Machine Depth: 3100 mm
- Machine Height: 2120 mm
- Machine Weight: 6200 kg
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 795 mm
Additional Information
Additional equipment
- Counter-spindle: Yes / Y-axis: Yes / Driven tools: Yes/ Bar loader: Yes
- Number of tool stations: 12 (10) / Shank height for square tool: 25 mm / Boring bar tool shank: Main Spindle: Max. 50 mm / Sub-spindle Max. 32 mm / Boring bar tool shank: Main Spindle: Max. 50 mm / Sub-spindle Max. 32 mmz / Turret switching time: 0.25 s / Max. speed of driven tools: 6000 rpm
- Rapid traverse speed: X/Z-axis: 30000 mm/min / Y-axis: 10000 mm/min / C-axis: 400 min⁻¹
Machine Benefits
Technical Machine Benefits
- Swing over bed: 923. 8 mm (579. 8 mm with front cover) / swing over cross slide: 755 mm / max. Turning diameter: 356 mm / standard turning diameter: 275 mm / max. Turning length: 510 mm / max. Bar capacity: 80 mm
- B-axis travel (sub-spindle movement): 734 mm
- Max. Spindle speed: main spindle: 4000 rpm / sub-spindle: 6000 rpm / spindle nose: main spindle: jis a2-8 / sub-spindle: jis a2-5 / spindle bore: main spindle: 91 mm / sub-spindle: 43 mm / spindle bearing (inner diameter): main spindle: 140 mm / sub-spindle: 85 mm
- Spindle motor power: main spindle: 16. 5/18. 5/15 kw // sub-spindle: 11/7. 5 kw
- Drive motor for driven tools: 5. 5/5. 5/3. 7 kw
- Feed motor power: x/y/b: 2. 0 kw // z: 3. 5 kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
