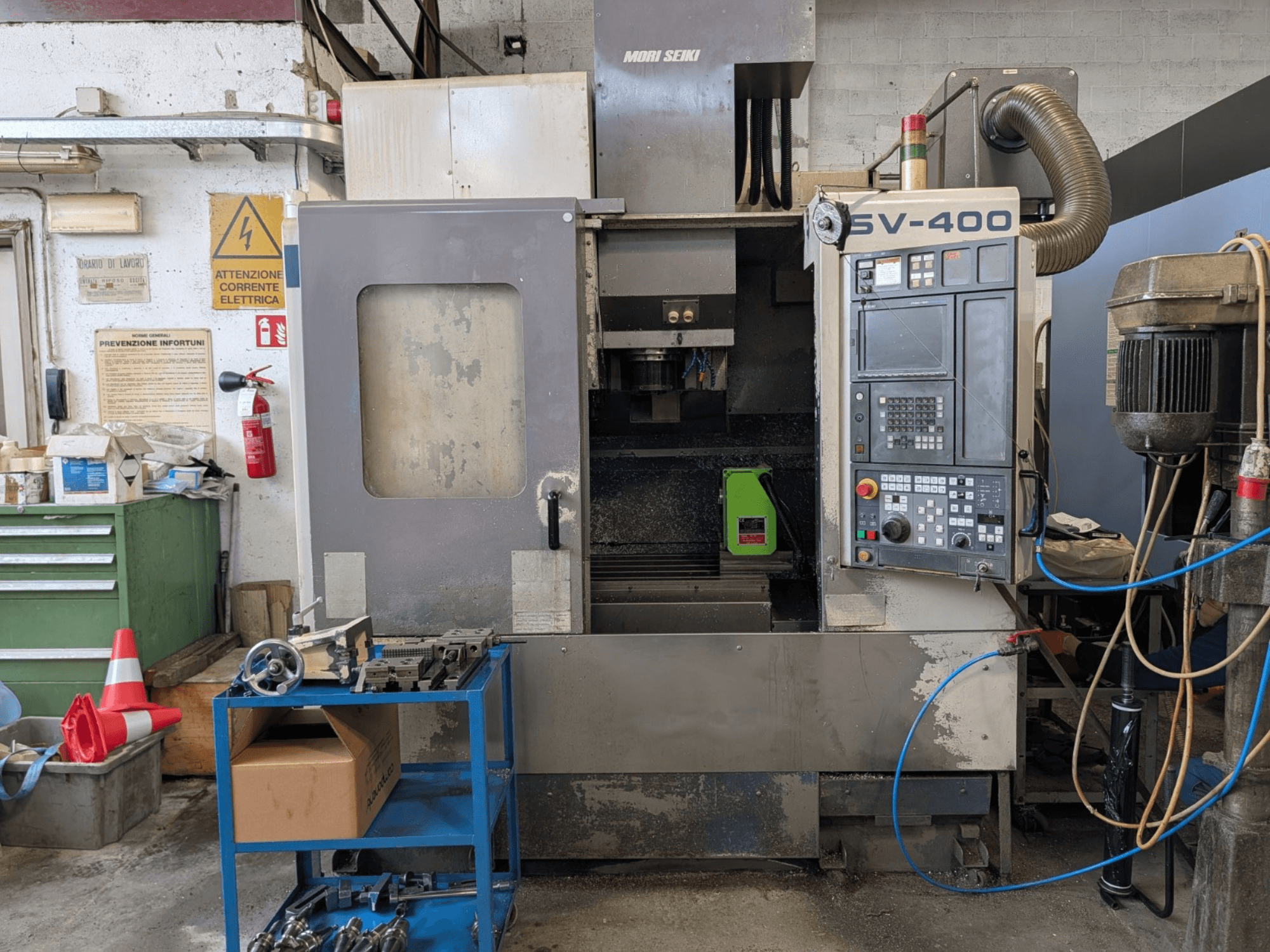

This 4-axis MORI SEIKI SV-400 was manufactured in 1998. It features a table size of 900 × 500 mm and impressive travels of 600 mm in the X-axis, 430 mm in the Y-axis, and 460 mm in the Z-axis. The machine includes a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 30 stations. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI SV-400 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 1998
- MODEL: SV-400
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - MORI SEIKI SV-400
Dimensions
- Machine Height: 2770 mm
- Machine Weight: 5200 kg
- Table Load: 500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 600 mm
- Y-axis Travel: 430 mm
- Z-axis Travel: 460 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Tool Stations: 30
- Spindle Power: 22 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Table: 900 × 500 mm; 4 T-slots (18 mm width × 100 mm pitch)
Number of axes: 4 (X, Y, Z + 4th rotary axis; 4th axis supplied by accessory listed below)
Distance spindle nose to table: 150–610 mm
Spindle: max; 22 / 18.5 kW motor; 85 mm front bearing ID
Tool magazine: max tool Ø 80 mm (adjacent) / 125 mm (non-adjacent); max tool length 300 mm; chip-to-chip 3.2 s
Feedrates: Rapid X/Y/Z 32,000 mm/min; max working feed 16,000 mm/min
Axis motor power: X/Y 2.1 kW; Z 4.4 kW
CNC control: MORI-FANUC MSC-501 (compatible with MSC-518); memory 320 m; functions include helical interpolation and cutting force control (Power Monitor)
Coolant system: 50 bar high-pressure through-spindle coolant (TSC)
Features: air blow for part cleaning, full enclosure, end-of-cycle lamp, RS-232 interface
Floor space: 2,200 × 2,550 mm
Electrical: total installed power 50.2 kVA; 380 V, 50 Hz
Additional equipment
4th axis attachment: Tsudakoma RN-150R rotary table with 200 mm faceplate and tailstock
Chip management: 2× rear-discharge chip conveyors
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
