MTcut Cut V110H

Photo Gallery

MTcut - Cut V110HAT-MIL-MT-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

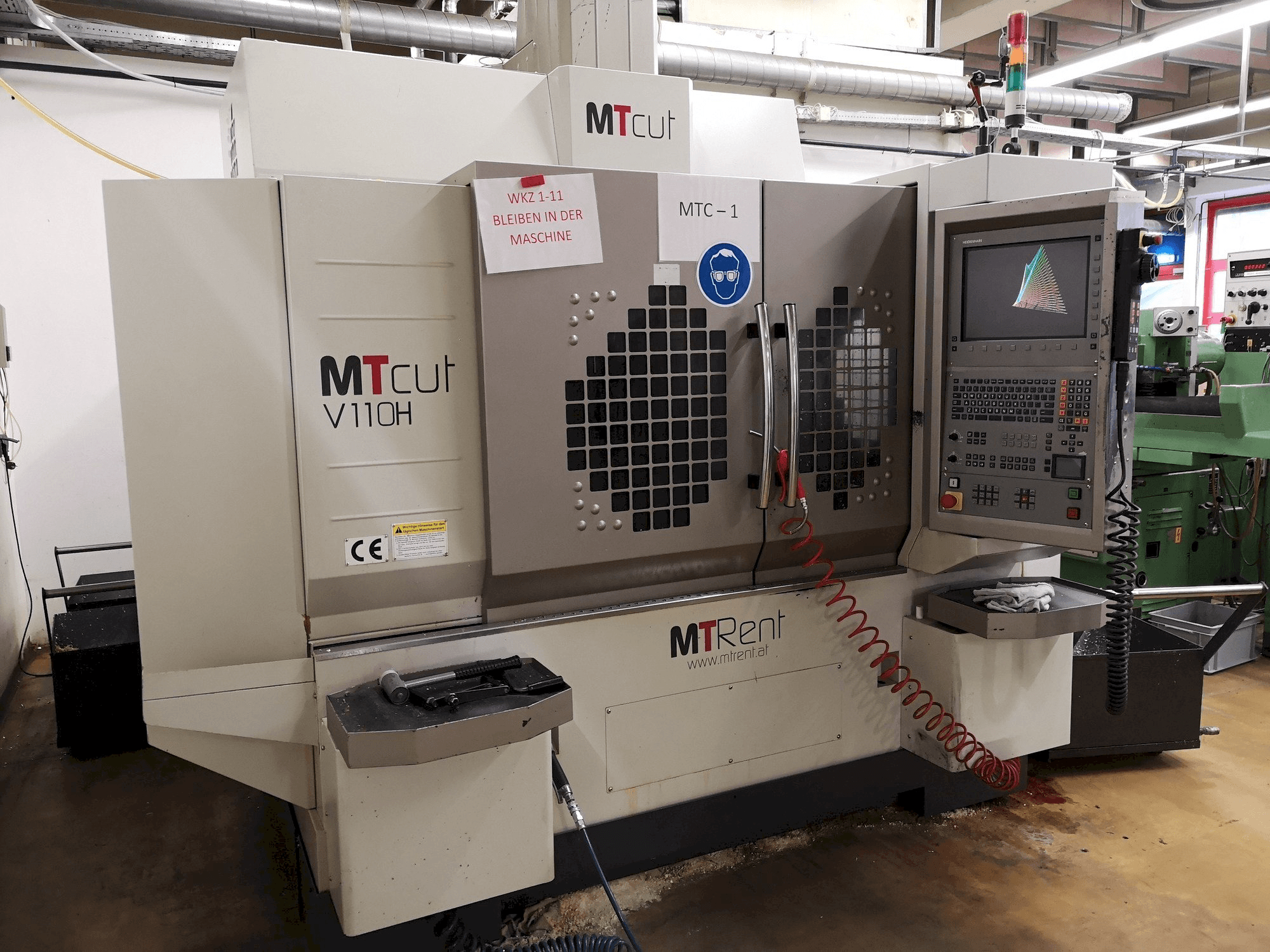

MT Cut V110H Vertical Machining Center

This MT Cut V110H Vertical Machining Center was built in Taiwan in the year 2007. It is equipped with a Heidenhain control unit. Its BB40 spindle can operate with a speed up to 12000 rpm.

Overview

brand: MTcut
year: 2007
MODEL: Cut V110H
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MTcut Cut V110H

General Data

Measurements width: 3160 mm
Measurements depth: 2870 mm
Measurements height: 3000 mm
Machine weight: 8500 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 1 - 12000 1/MIN

Movement

X-AXIS Movement: 1100 mm
X-AXIS Rapid traverse: 32m/min
Y-AXIS Movement: 610 mm
Y-AXIS Rapid traverse: 32m/min
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 32m/min

Table

Outer length: 1250 mm
Outer width: 610 mm
TSlots size: 18mm x 5 x 100mm
Table load: 1000 kg

Tools

Type of tool holder: BT40/CAT40/DIN40/BBT40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter Ø 70mm
- - Positioning accuracy 0. 005mm
- - Repeat accuracy x. Y. And z-axis 0,003mm
- - Distance spindle nose - work table 120 - 730mm
- - Distance spindle centre to stand 668mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
