MTE Kompakt Plus

Photo Gallery

MTE - Kompakt PlusDE-MIL-MTE-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MTE Kompakt Plus For Sale | gindumac.com

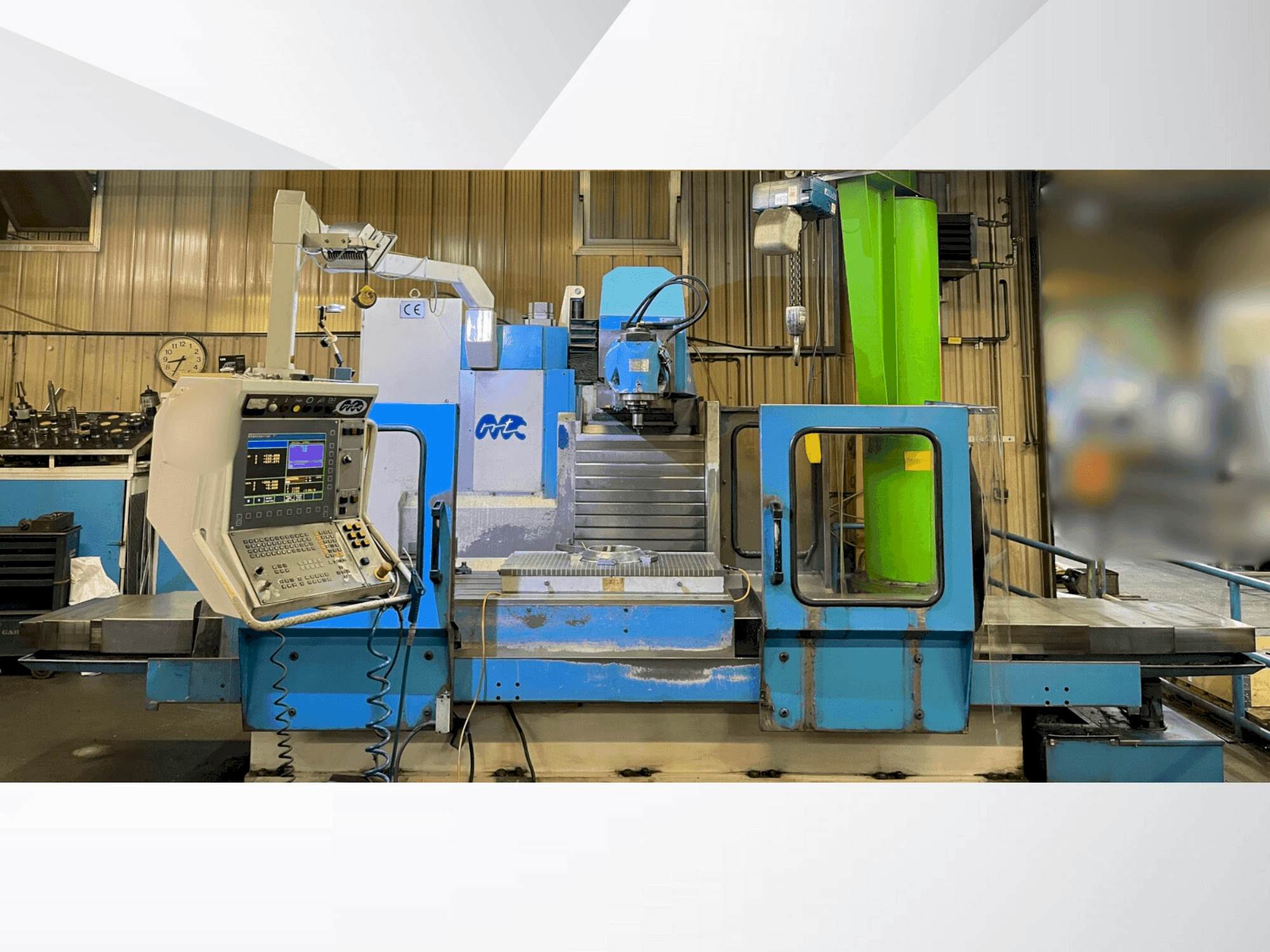

This 3-axis MTE Kompakt Plus vertical machining center was manufactured in 1999. It offers robust construction and precision for a variety of machining applications. Consider the opportunity to buy this MTE Kompakt Plus vertical machining center. Contact us for more information.

Overview

brand: MTE
year: 1999
MODEL: Kompakt Plus
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MTE Kompakt Plus

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 410

Dimensions

Machine Weight: 10000 kg
Table Load: 4000 kg

Movement

Number of Axes: 3
X-axis Travel: 2000 mm
Y-axis Travel: 800 mm
Z-axis Travel: 800 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Maximum feed force: (x-z) 1350 - (y) 1000
Maximum feed force: (x-z) 1350 - (y) 1000
Positioning accuracy (mm): < 0. 012
Repeatability (mm): < 0. 007
Hydraulic unit power: 2. 2 kw pump capacity: 8 l/min operating pressure: 70 bar tank capacity: 30 l
Coolant unit capacity: 0. 28 l/min pump capacity: 75 l/min tank capacity: 1202. 3 l
Guideways on all three axes made of pearl cast iron (gg-25), induction-hardened (hardness 480-500 vickers) and ground. Counter-guides made of plastic designed for slow driving (anti-stick-slip). High load resistance up to 20 kg/cm² with good vibration absorption.
High wear resistance
Good vibration absorption

Technical Machine Benefits

Clamping surface: 2200x750
T-slots number-width: 5-18
Distance between t-slots: 140
Hydraulic tool clamping: yes
Tool clamping bar: iso 7388/2-a
Spindle angle position: manual
Motor power: 15 kw
Infinitely variable speed: 40-2500 rpm
Milling feed rate: 0-4000
Positioning feed: 10

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
