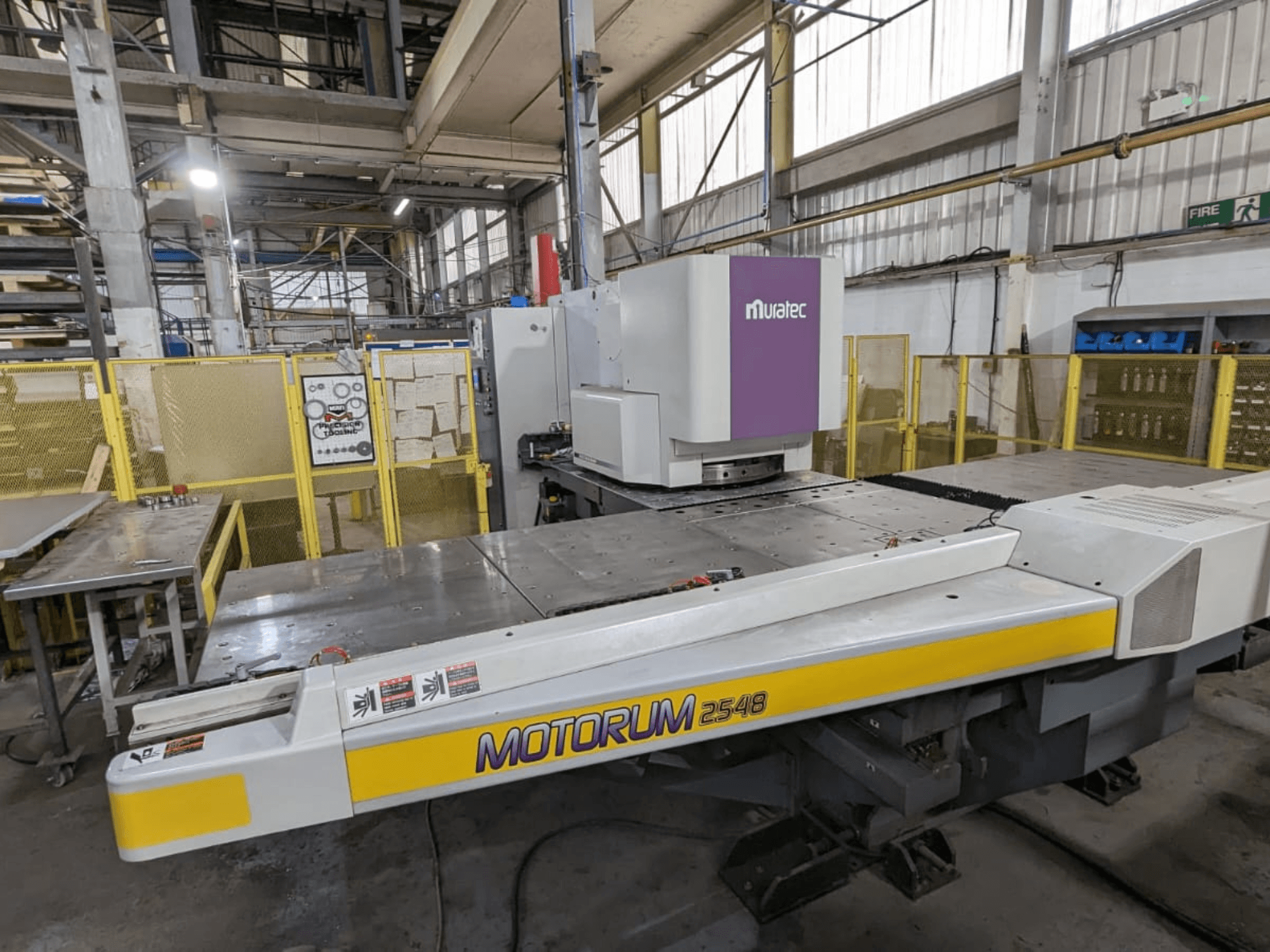

CNC punch press manufactured in 2008. This Muratec Motorum 2548 features a punching force of 25 t and a maximum sheet thickness of 6.35 mm. It offers an impressive X-axis travel of 2550 mm and Y-axis travel of 1600 mm, accommodating sheets up to 1250 x 5000 mm with repositioning. If you are looking to get high-quality punching capabilities, consider the Muratec Motorum 2548 machine we have for sale. Contact us for further details.
Overview
- brand: Muratec
- year: 2008
- MODEL: MOTORUM 2548
- application type: Punching
- Location: United Kingdom
- machine type: CNC Punch Press
Technical Information - Muratec MOTORUM 2548
Dimensions
- Machine Height: 2250 mm
- Machine Length: 5200 mm
- Machine Weight: 12000 kg
- Machine Width: 2500 mm
Movement
- X-axis Travel: 2550 mm
- Y-axis Travel: 1600 mm
Technical Specification
- Max. Sheet Thickness: 6.35 mm
- Punching Force: 245 Kn
Additional Information
Maximum sheet size without repositioning: 1250 x 2500 mm
Maximum sheet size with one reposition: 1250 x 5000 mm
Throat depth: 1340 mm
Feed clearance: 25 mm
Maximum sheet weight: 150 kg
Hit rate at 25 mm pitch: X 400 hpm / Y 300 hpm
Hit rate at 1 mm pitch: X 800 hpm / Y 700 hpm
Simultaneous axis speed: 125 m/min
Punching accuracy: ±0.1 mm
Turret index speed: 40 rpm
Index tool speed: 180 rpm
Compressed air requirement: 100 NL/min
Compressed air pressure: 0.5 MPa
Power supply: 23 kVA
Turret / Tooling:
Turret: 44 stations
Index stations: 3 x F A/I
Multi-tool: 1 x M/T, 12 stations
Tooling type: Wiedemann tooling
Optional turret configuration (catalogue): 44 stations / 4 index
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
