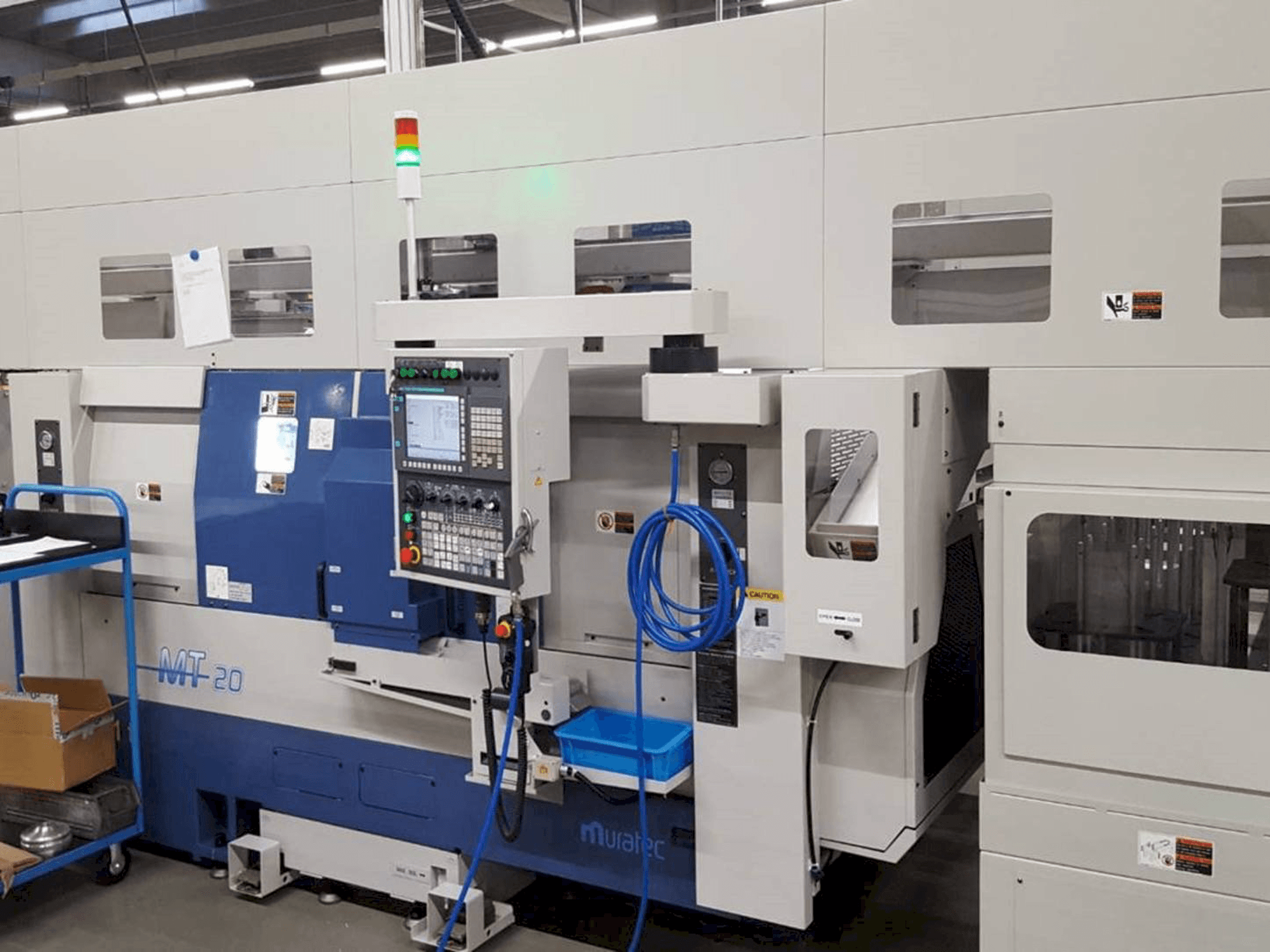

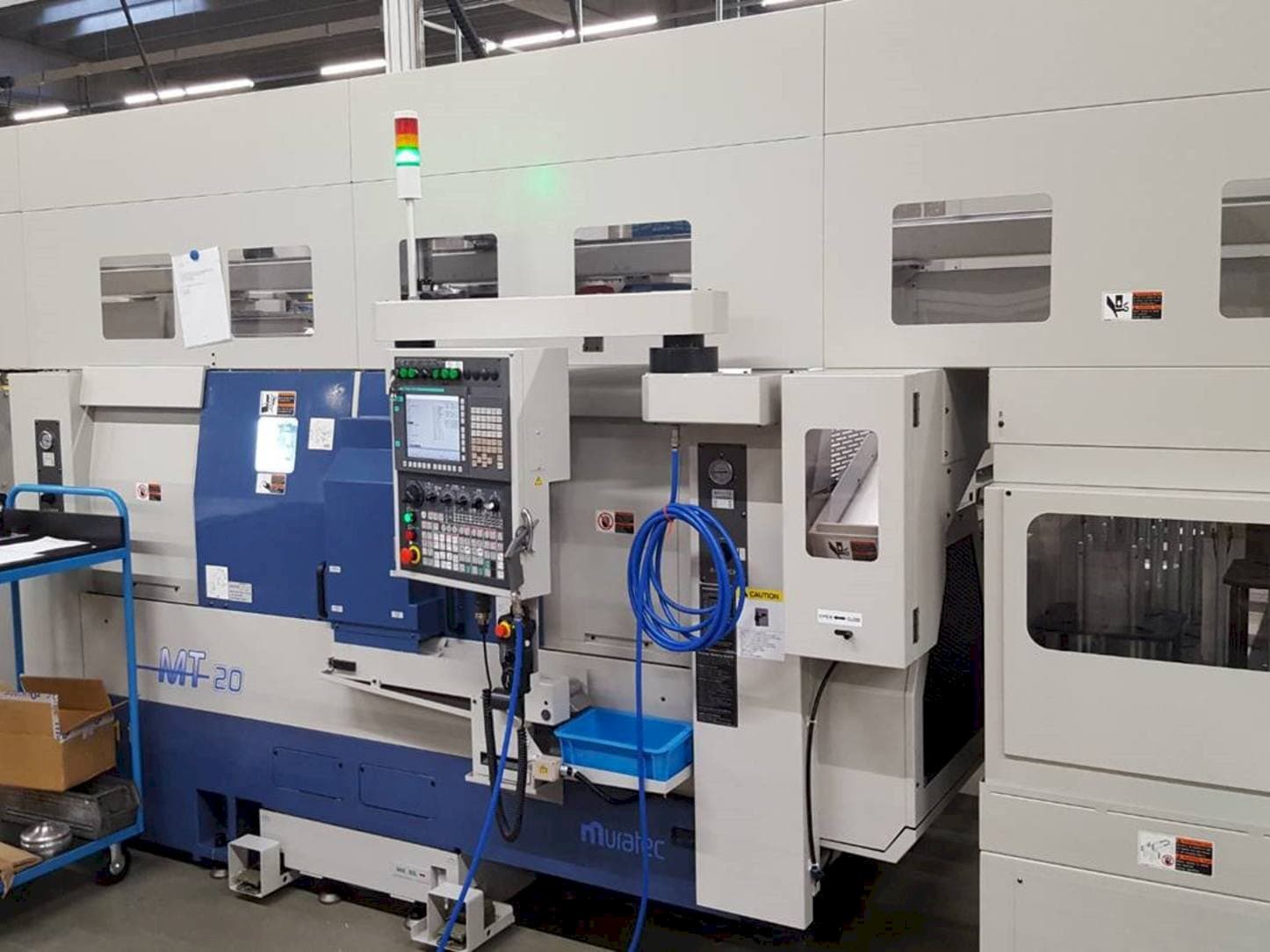

Front view of Muratec MT 20 GYMC  machine

Muratec MT 20 GYMC

Muratec - MT 20 GYMC

2012

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Muratec MT 20 GYMC Lathe was manufactured in the year 2012. It has 9 axis. The machine has a spindle speed of 4200 rpm.

Overview

  • brand: Muratec
  • year: 2012
  • MODEL: MT 20 GYMC
  • application type: Turning
  • Location: Spain
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Muratec
  • GINDUMAC ID: ES-TUR-MUR-2012-00001

Technical Information

General Data

  • Machine weight: 11000 kg

Control Unit

  • Brand: Muratec
  • Model: FANUC-CNC

Main drive

  • Spindle speed range: 4200 1/MIN
  • Spindle motor power: 15 Kw
  • Tool taper: A2-6
  • Number of axis: 9

Movement

  • X-AXIS Movement: 230 mm
  • Y-AXIS Movement: +50 /-50 mm
  • Z-AXIS Movement: 850 mm
  • C-AXIS Movement: 0.001° MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Bar hole 65 mm.
      • - Machine with two heads, both with c axis, machine with two upper turrets, both with y axis.
      • - Renishaw automatic tool measuring arms on each head, air and coolant outlet through both spindles.
      • - Independent high pressure coolant power plant at 50 bars, daikin cooling station for coolant temperature control.
      • - Engine starting torque 320 nm, 15-position turrets, all of them motorized.
      • - Interface for bar loader installation, 3-axis gantry type robot for loading and unloading parts.
      • - Double doll in robot, remote steering wheel and independent programming for robot, digitized programming using gantry robot plc.
      • - Rapid robot movement speed 120,110 and 35 m/min for z, y and x axes, part loading retry function due to bad support. (rechuking)
      • - Lubricate all robot axes with oil and grease, part loading retry function due to bad support. (rechuking)
      • - Warehouse for loading and unloading material with 14 pallets, department for optional unloading of finished parts on the left side of the machine, verification, checking and measurement station for finished parts.
    • Qualitative Machine Benefits:
      • - Machine in very good condition
      • - Automatic cleaning using air and coolant for each head, internal cleaning of chips using jets and rain of coolant, automatic control and monitoring of efforts and tool consumption monitor, piece transfer system between heads with automatic torque control.
      • - Cnc system, servos, cards and fanuc motors, ports for communication via pcmcia card and rs232 port, tool lashing with bmt system. Two 210 mm kitagawa hydraulic plates, turret change indexing time 0. 2 seconds.
      • - Opening and closing pedal for both plates, distance main spindle - counter spindle max. 1150 mm,
      • - Power of motorized tool drive motors 3 kw, speed of driven tools 3500 rpm, starting torque of motorized tools 148 nm.
      • - Fast turret movement speed 24, 20 and 20 m/min for z, y and x axes, complete equipment including static outdoor and indoor tool holders.
      • - Hinge type rear chip conveyor.
      • - Electric transformer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
