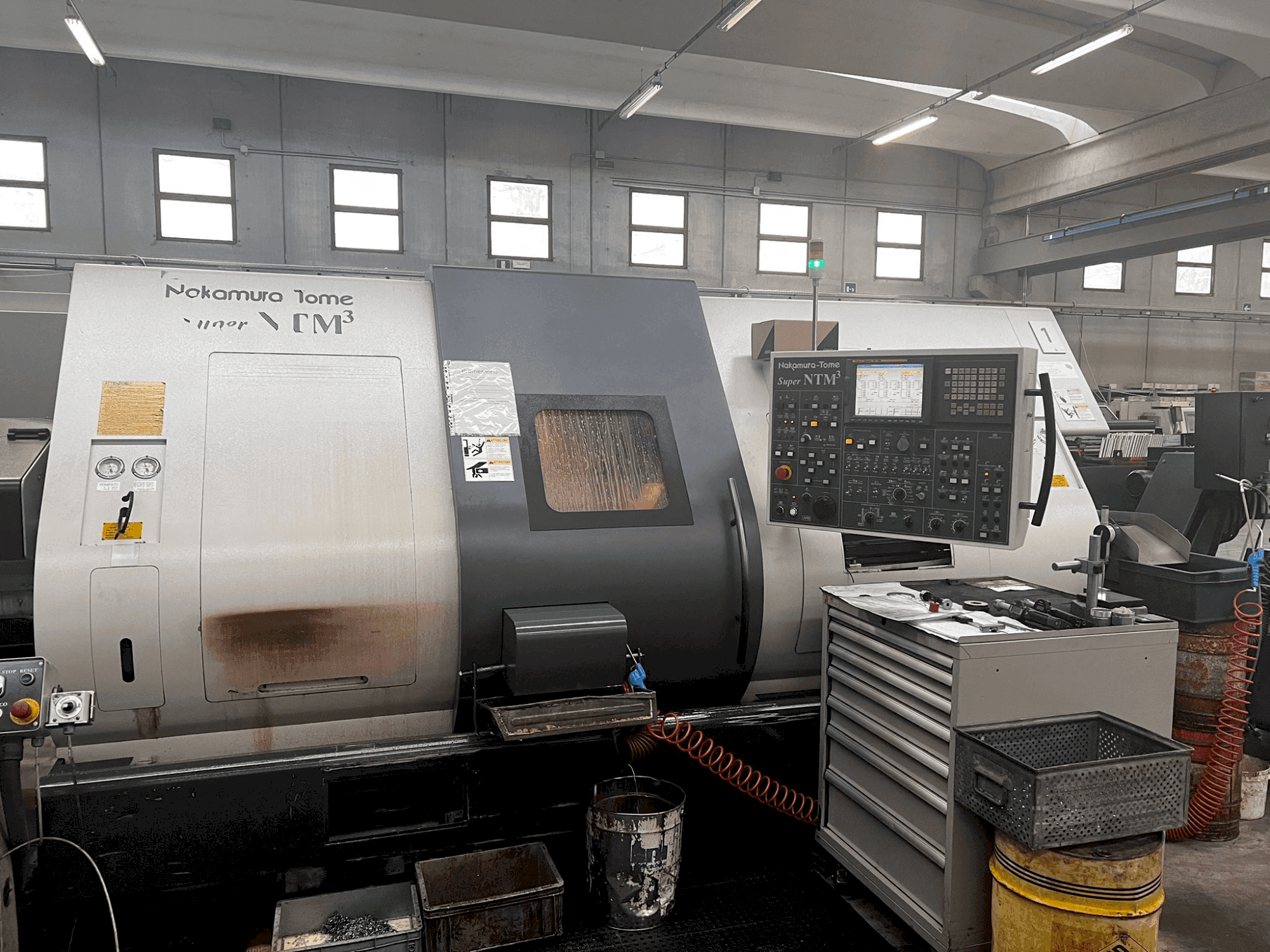

Front view of NAKAMURA NTM3  machine

NAKAMURA - NTM3IT-TUR-NAK-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

The Nakamura NTM3 lathe, built in 2007, features a 9-axis system ideal for complex and precise machining. It uses a Fanuc 16T control system for reliable and easy operation. The lathe has three motorized turrets with dual Y-axes on the upper turrets, enabling multi-tasking and reducing production time for complex parts. Key features include a main spindle workpiece unloader, a workpiece-to-head unloader, and a 2019 Top Automazione Xfiles bar loader. It also has a 65 Haimbuch collet holder for various bar sizes. Contact us for more details.

Overview

  • brand: NAKAMURA
  • year: 2007
  • MODEL: NTM3
  • application type: Turning
  • Location: Italy
  • machine type: Turn-Mill Centre
  • availability: Sold
  • control unit brand: FANUC

Technical Information - NAKAMURA NTM3

General Data

  • Measurements width: 2270 MM
  • Measurements depth: 3930 MM
  • Measurements height: 2100 MM
  • Machine weight: 12000 KG

Control Unit

  • Model: 16T
  • Brand: FANUC

Main drive

  • Spindle speed range: 5000 1/MIN
  • Spindle motor power: 15/11 kw
  • Number of axis: 9

Movement

  • X-AXIS Movement: 167.5 mm
  • Y-AXIS Movement: 102 (+61/ -41) mm
  • Z-AXIS Movement: 250 mm

    Additional Equipment

    • - Bar Loader: Top Automazione Xfiles (2019)
    • - Collet Holder: 65 Haimbuch

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum bar diameter: 65
        • - Enhanced productivity and flexibility with 3 motorized turrets and dual y-axes, allowing complex multitasking operations.
        • - Reliable fanuc 16t control unit provides precision in control for high-quality turning operations. Reliable fanuc 16t control unit provides precision in control for high-quality turning operations.
        • - X2 axis movement: 167. 5 mm
        • - Z2 axis movement: 250 mm
        • - Y2 axis movement: 102 (+61/-41) mm
        • - X3 axis movement: 167. 5
        • - Z3 axis movement: 685
      • Qualitative Machine Benefits:
        • - High precision and efficiency in handling through specialized unloaders and advanced bar loader.
        • - Capability to handle diverse and complex parts efficiently due to extensive turret and axis configurations.

      Extra information

      • - Machine still under power.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
