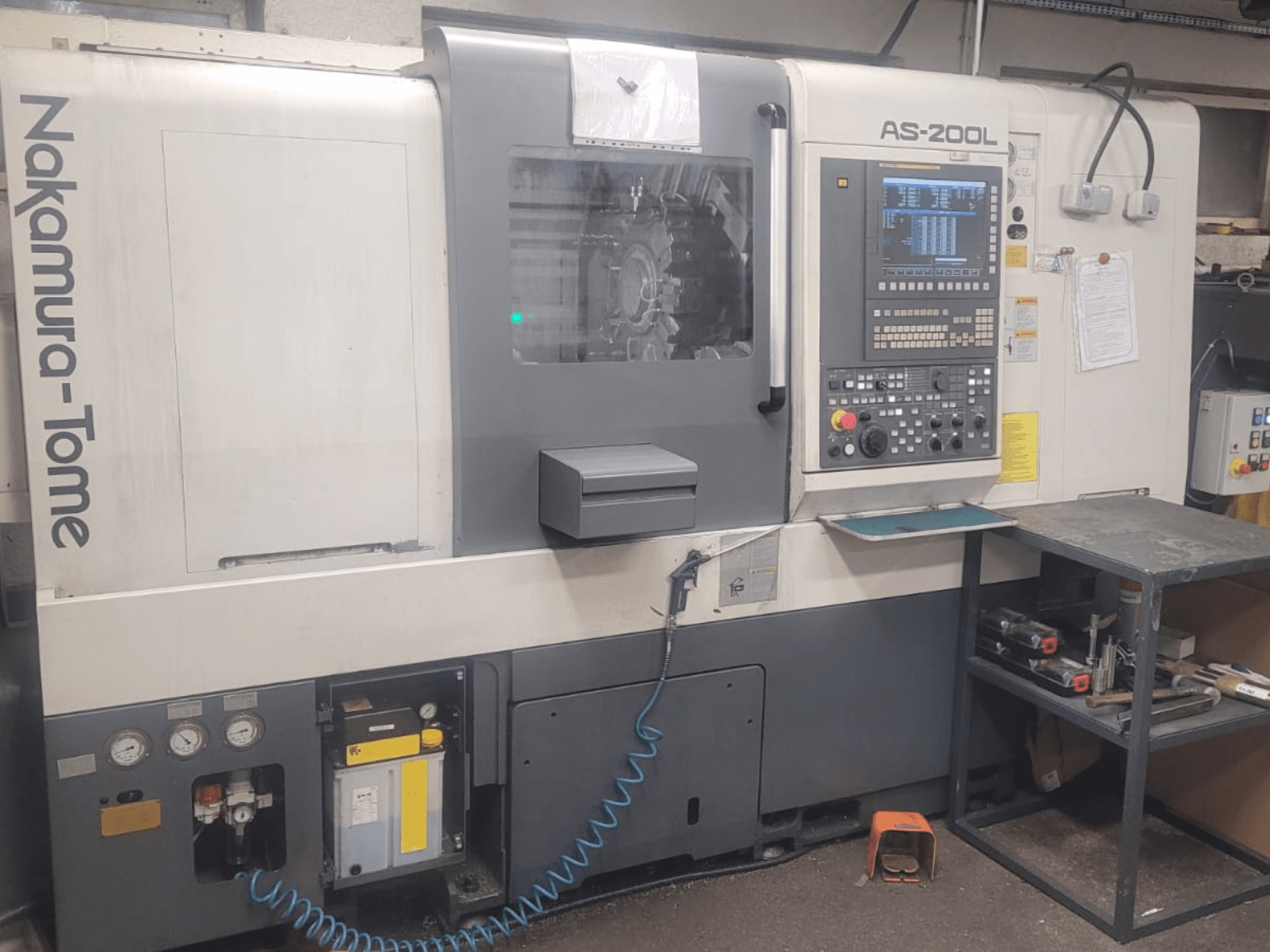

This 4-axis NAKAMURA-TOME AS-200L was manufactured in 2017. It features a maximum turning diameter of 320 mm and a turning length of 570 mm. The machine includes a 12-station turret and a main spindle speed of up to 4500 rpm. If you are looking to get high-quality turning capabilities, consider the NAKAMURA-TOME AS-200L horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: NAKAMURA-TOME
- year: 2017
- MODEL: AS-200LMYS
- production hours: 18417
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - NAKAMURA-TOME AS-200LMYS
Control Unit
- Control Brand: FANUC
- Control Model: 0i-TF
Dimensions
- Machine Height: 1852 mm
- Machine Length: 2716 mm
- Machine Weight: 6000 kg
- Machine Width: 1935 mm
Movement
- Number of Axes: 4
- X-axis Travel: 202.5 mm
- Y-axis Travel: 82 mm
- Z-axis Travel: 585 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 65 mm
- Number of Tools: 12
- Spindle Power: 15 kW
- Spindle Speed: 4500 RPM
Additional Information
Standard Equipment
Turret: 12-station drum turret
CNC control, 4 axes (including C-axis), Fanuc 0i-TF
Anti-collision protection system (mechanical “Airbag”)
Y-axis
15″ LCD monitor with USB port
Live tooling – 12 positions
Automatic central lubrication system
Machine working area lighting
Coolant pump – 180 W
Initial coolant filling (Blaser coolant)
Options included
Transformer
Luck-Beil II (NT Manual Guide – graphical interface for control)
Increased spindle bore to 71 mm (4500 rpm; A2-6)
Upgraded main spindle motor Fanuc 15 / 11 kW (258 Nm)
High-pressure coolant system with Brinkmann pump
Shut-off valve for high-pressure coolant system
Low coolant level sensor
Part ejector cylinder from sub-spindle (cylinder stroke 100 mm)
Signal tower for machine status (3 colors)
Operator shelf under control panel
Type A parts catcher (Ø71 mm / L150 mm / 3 kg)
Preparation for LNS bar feeder
Air blow through main and sub spindle
Manual tool probe (Renishaw, one arm for both spindles)
Spindle cooling system for main and sub spindle
Preparation for oil mist extraction system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
