NAKAMURA-TOME - STW-40PT-TUR-NAK-2000-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used NAKAMURA-TOME STW-40 For Sale | gindumac.com

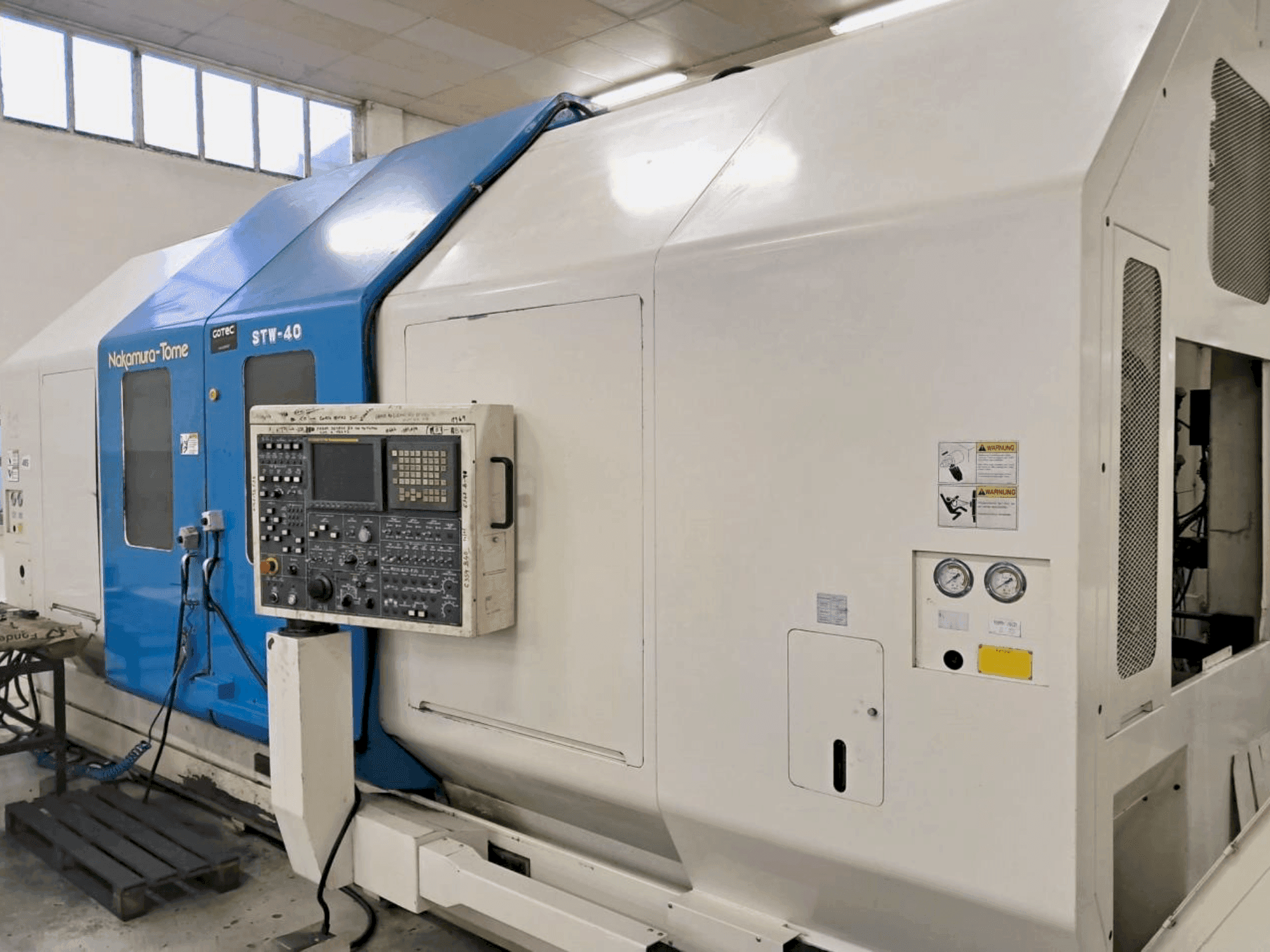

This 9-axis Nakamura-Tome STW-40 was manufactured in 2000, featuring a max. turning diameter of 570 mm and a turning length up to 1550 mm. It boasts spindle speeds up to 3500 rpm and rapid traverse rates of 25 m/min on X-axes and 30 m/min on Z-axes. Ideal for complex machining tasks, it includes a 80-fold WZG magazine and a hinged belt chip conveyor. Contact us for more information about this machine.
Overview
- brand: NAKAMURA-TOME
- year: 2000
- MODEL: STW-40
- application type: Turning
- Location: Portugal
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - NAKAMURA-TOME STW-40
Control Unit
- Control Brand: FANUC
- Control Model: 16i-TA
Dimensions
- Machine Depth: 6200 mm
- Machine Height: 3200 mm
- Machine Weight: 22000 kg
Movement
- Number of Axes: 9
- X-axis Travel: 400 mm
- Z-axis Travel: 1550 mm
Technical Specification
- Spindle Speed: 3500 RPM
Additional Information
Additional equipment
- 12000 rpm for upper WZG spindle with 11/7.5 kW drive power and 79/47 Nm torque
- 80-fold WZG magazine
- Automatic start-up and shut-down of the machine with warm-up program function
- WZG breakage control with scanning flag for upper WZG spindle
- 2 HD - Brinkmann pumps for upper WZG spindle and lower turret (pump capacity = 45 liters per minute)
- Hinged belt chip conveyor with ejection to the right
Machine Benefits
Technical Machine Benefits
- Max turning diameter upper wzg spindle: 570 mm // max turning diameter turret lower left and right: 400 mm
- Standard turning diameter: 300 mm
- Max turning length turret-bottom left and right: 500 mm
- Max turning length upper wzg spindle: 1550 mm
- Distance between spindle noses: 1900 mm
- Distance between 2 3-jaw chucks: 1500 mm
- Power requirement: total connected load of 160 kva
- Air consumption: approximately 500 liters per minute
- C1 + c2: 400 rpm
- B-axis: 12. 5 r/min
Extra Information
Left / Right spindle: Driving power and torque: 22/15 kW Torque: 500/794 Nm Spindle speed: 30-3500 rpm Spindle nose: A1-8 Inside diameter in front bearing: 130 mm Spindle bore: 85 mm Max bar capacity: 71 mm Max chuck size: 315 mm C - Axis 3 axes simultaneous: X, Z, C Switch-on time: 0.5 sec Rapid traverse speed: 400 rpm (144000 °/min) Feed rate: 1 - 4800 °/min Graduation accuracy: 0.011° (30 angular sec) Repeatability: ± 0.006° (± 20 angular sec) Spindle disk brake torque: 25 kgfm Milling and Bphr drive for upper WZG spindle: CAPTO-C6 Drive power: 15/11 kW from 800 rpm Motor speed: 60 to 6000 rpm Torque: WeldonS, 10, 12, 14, 16, 20, 25 Clamping fixtures attached tools: ER-25/ER-32 collet chuck
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
