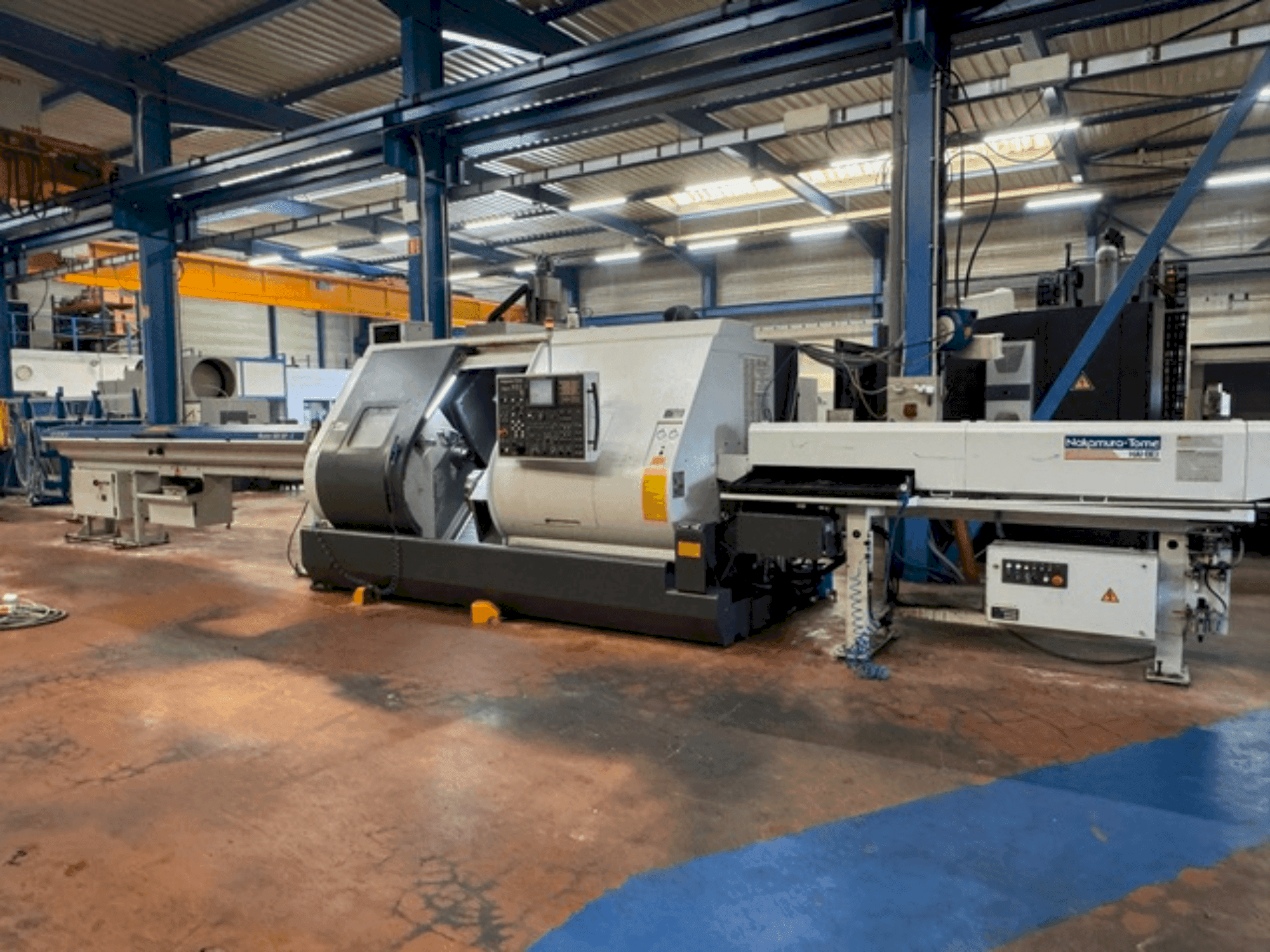

Front view of NAKAMURA-TOME Super NTJ  machine

NAKAMURA-TOME - Super NTJFR-TUR-NAK-2009-00001

107,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis NAKAMURA-TOME Super NTJ was manufactured in 2009. Ideal for precision horizontal turning, this machine offers robust construction and reliability. If you are looking to get high-quality turning capabilities, consider the NAKAMURA-TOME Super NTJ machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: NAKAMURA-TOME
  • year: 2009
  • MODEL: Super NTJ
  • production hours: 15900
  • application type: Turning
  • Location: France
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - NAKAMURA-TOME Super NTJ

General Data

  • Measurements width: 2350 MM
  • Measurements depth: 5350 MM
  • Measurements height: 2395 MM
  • Machine weight: 14425 KG

Control Unit

  • Brand: FANUC
  • Model: 18i-TB

Main drive

  • Spindle speed range: 4500 1/MIN
  • Spindle motor power: 15 kw

Movement

  • X-AXIS Movement: 345 mm
  • Y-AXIS Movement: +/- 45 mm
  • Z-AXIS Movement: 1240 mm

Workpiece

  • Workpiece drm: 190 mm

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - CNC: Fanuc 18i-TB
    • - Interfaces: Ethernet, RS232
    • - 3-Color Status Light
    • - High-Pressure Spraying
    • - IEMCA MASTER 880 MPE Bar Feeder
    • - NAKAMURA TOME HAI-BEI Bar Re-Feeder
    • - Rotating Tool Holders: 12
    • - 1 Collet Chuck + Collets
    • - 1 Hydraulic Chuck

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Bar diameter: 65 mm
        • - C axis indexing accuracy: 0. 001°
        • - Spindle nose for cnc lathe: a2-6
        • - The counter spindle features a cnc lathe spindle nose a2-5, with 11 kw power, 5000 rpm speed, a maximum bar diameter of 51 mm, c axis indexing accuracy of 0. 001°, a stroke of 760 mm, and a spindle-to-counter-spindle distance of 210/970 mm.
        • - The upper turret has 24 positions, including 12 motorized ones, with a rotating tool speed of 6000 rpm, 5. 5 kw of power, b axis travel of ±91°, and indexing accuracy of 0. 001°.
        • - The lower right turret features 24 positions, 12 of which are motorized, with x and z travel of 167. 5 mm and 685 mm respectively, a rotating tool speed of 6000 rpm, and a rotating tool power of 5. 5 kw.
        • - Power supply voltage: 400 v

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
