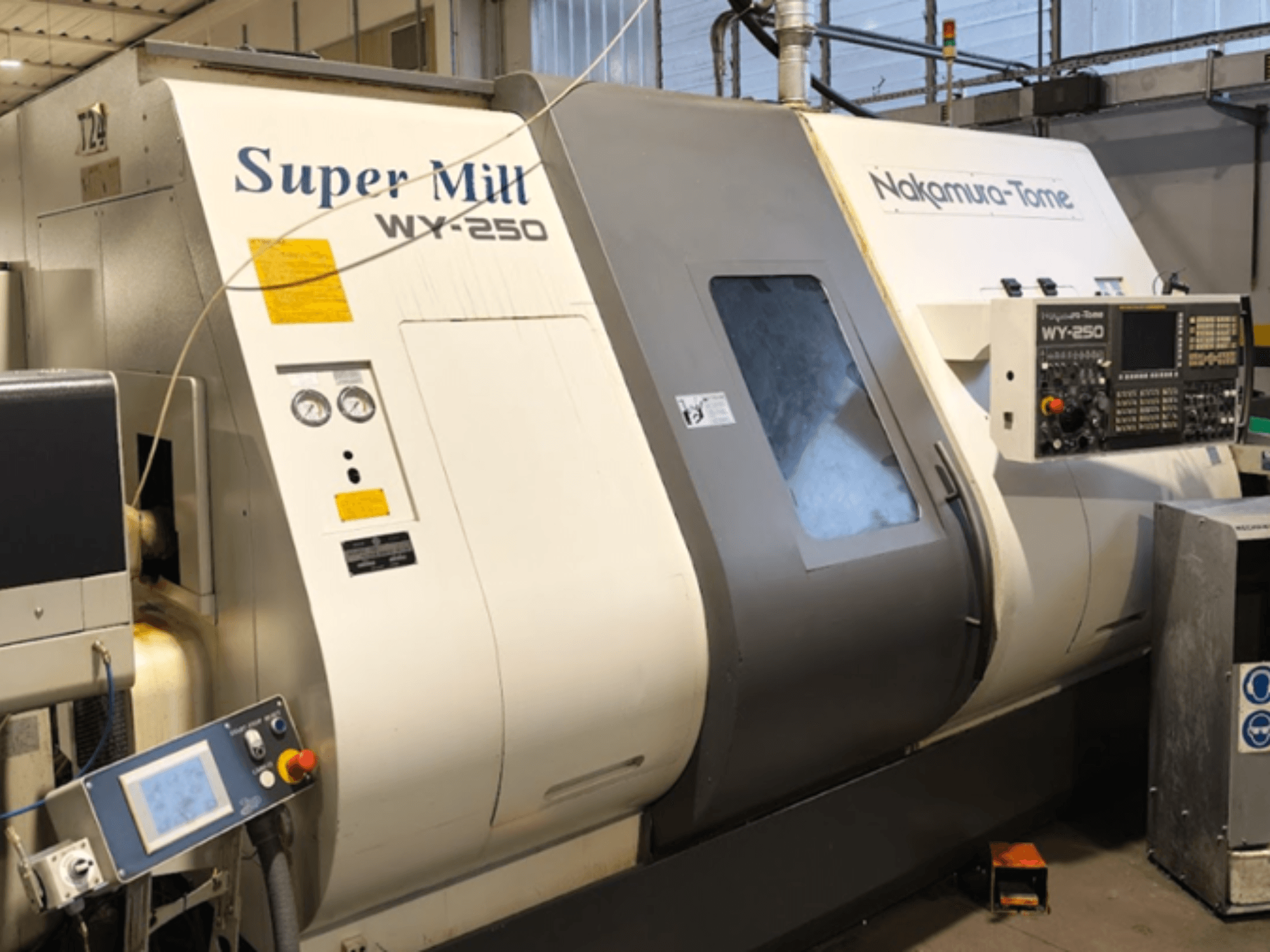

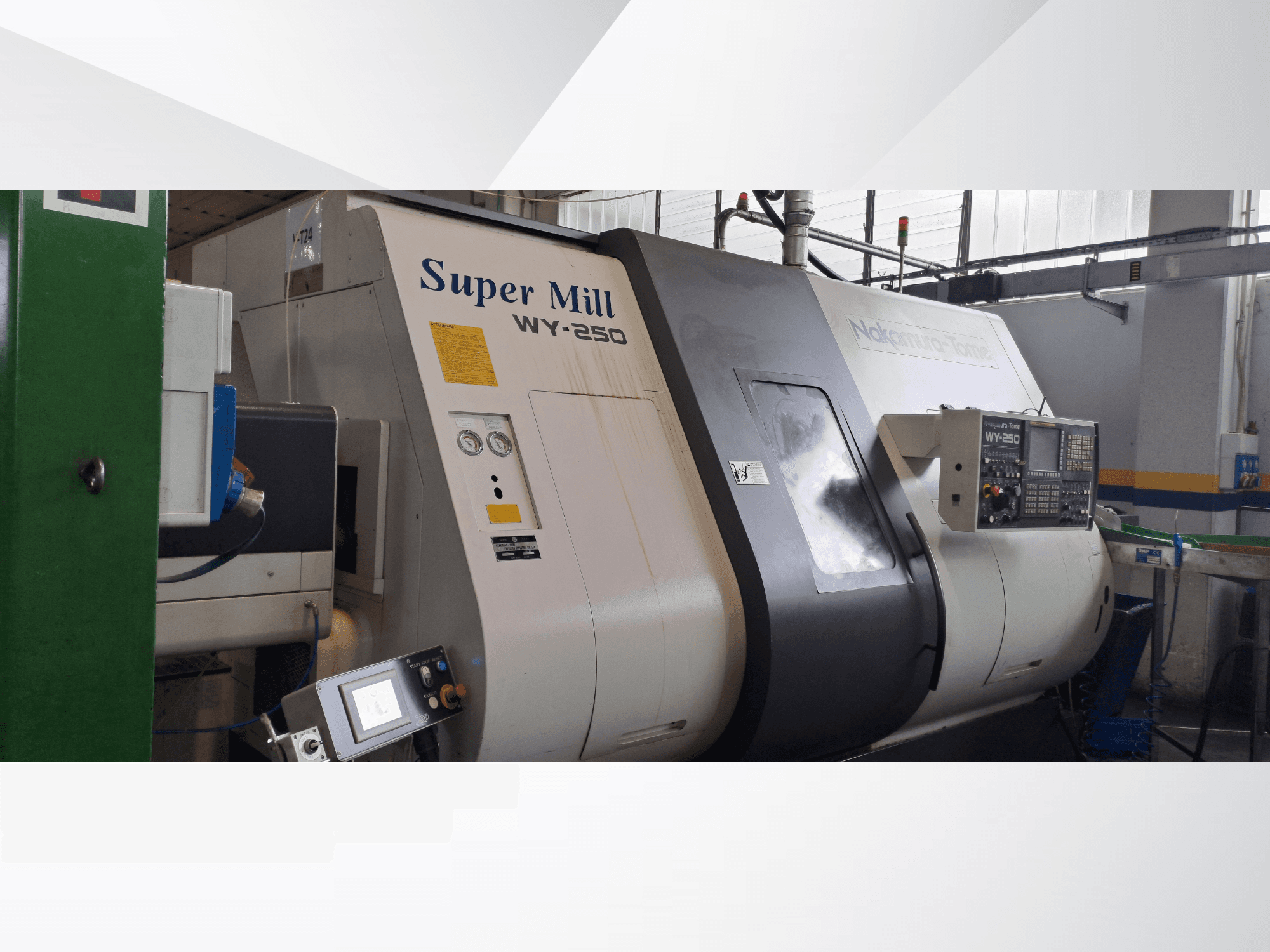

This 7-axis Nakamura Tome WY-250 was manufactured in 2007. It features a twin spindle configuration with Y-axis capabilities on both turrets, allowing for versatile machining. The machine includes a maximum Z-axis travel of 580 mm and Y-axis travel of +50 / -50 mm. If you are looking to get high-quality turning capabilities, consider the Nakamura Tome WY-250 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: NAKAMURA-TOME
- year: 2007
- MODEL: WY 250
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - NAKAMURA-TOME WY 250
Movement
- Number of Axes: 7
- X-axis Travel: 160.5 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 580 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
Travels:
X1: 160.5 mm
X2: 165 mm
Z1/Z2: 580 mm
Y1: +50 / -50 mm
Y2: +20 / -50 mm
Included tooling:
4x external tool holders
4x tool holders for simultaneous mounting of 2 opposite tools
6x boring bar holders
Driven toolholders (HEIMATEC):
4x radial
4x axial
Collet holders (Bellegrandi):
Main spindle: MSCNT70-A6” for BA & BD collets size 70, complete with related cups
Counter spindle: MSCTNR70-A5” for BA collets size 70, complete with spring ejector
Additional equipment
IEMCA Master 880/33/P bar feeder (2003), S/N: 0200347S03
Application: Automatic bar feeder for CNC lathes
Capacity:
Max bar length: 3300 mm (to be confirmed)
Max bar diameter: up to Ø80 mm (model family reference)
Guide channels: Ø65 mm included; Ø70 mm currently installed and can be supplied with the machine
Features: Automatic loading/feeding, synchronization with lathe cycle, compatible with spindle liner/guide channel systems, heavy-duty frame
Condition: Currently stopped/not in production; reported functional; available for inspection by appointment
Note: Sold together with the Nakamura Tome WY-250; some accessories/guide channels may belong to the lathe setup
Complete set of hand jaws (“Manine”) for parts unloader (parts unloader itself not specified)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
