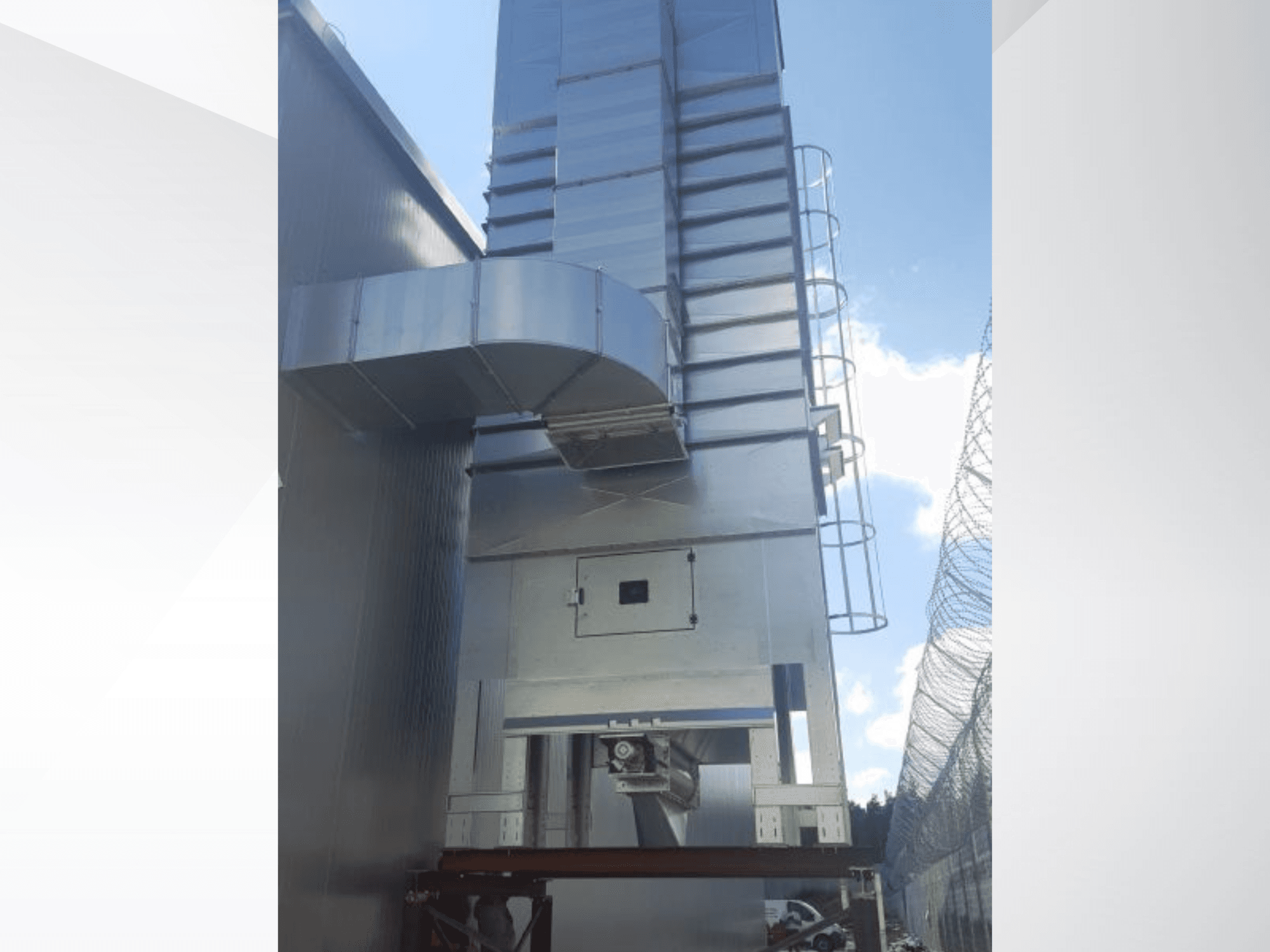

NAWARA RUBIN 2030 wood machine, side view showing metallic structure and ducts against a blue sky.
NAWARA RUBIN 2030 wood machine, side view showing metallic structure and ducts against a blue sky.

NAWARA - RUBIN 2030PL-OTH-NAW-2018-00001

30,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Dust extraction and filtration system manufactured in 2018. This Nawara RUBIN 2030 is designed for the extraction of dry dust and wood chips, making it suitable for woodworking and industrial dust collection. It features a stationary modular filter system and a warm air recovery system for continuous operation. If you are looking to get high-quality dust collection capabilities, consider the Nawara RUBIN 2030 machine we have for sale. Contact us for further details.

Overview

  • brand: NAWARA
  • year: 2018
  • MODEL: RUBIN 2030
  • application type: Other Woodworking Machinery
  • Location: Poland
  • machine type: Other (Wood)

Additional Information

  • Application:

    • Designed for extraction of dry dust and wood chips

    • Suitable for woodworking and industrial dust collection

  • Performance:

    • Capacity: approx. 30,000 m³/h

  • System features:

    • Stationary modular filter system

    • Warm air recovery system (summer/winter mode with adjustable flap)

    • Designed for continuous operation

  • Compliance:

    • EU Machinery Directive 2006/42/EC

    • ATEX Directive 2014/34/EU (for potentially explosive atmospheres)

    • Meets relevant Polish machinery safety regulations

  • Airlock / discharge system:

    • Type: SL 1400 EX

    • Length: 1400 mm

    • Height: 360 mm

    • Connection frame (top/bottom): 1490 × 420 mm

    • Drive: direct drive with elastic coupling (Rotex 38)

    • Gear motor: SEW R47 DRN80MK4 (option: DRN90S4)

    • Speed: 15 rpm (option: 29 rpm)

    • Overall dimensions (airlock unit): 2000 × 420 × 360 mm (L × W × H)

  • Electrical data:

    • Power supply: 380 V / 50 Hz

  • Scope/installation:

    • Complete external filter system included

  • Note:

    • The technical data and descriptions are copied from the order confirmation at the time. Information is for informational purposes only and not binding.

Additional equipment

  • Internal factory piping available; included but subject to separate negotiation.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
