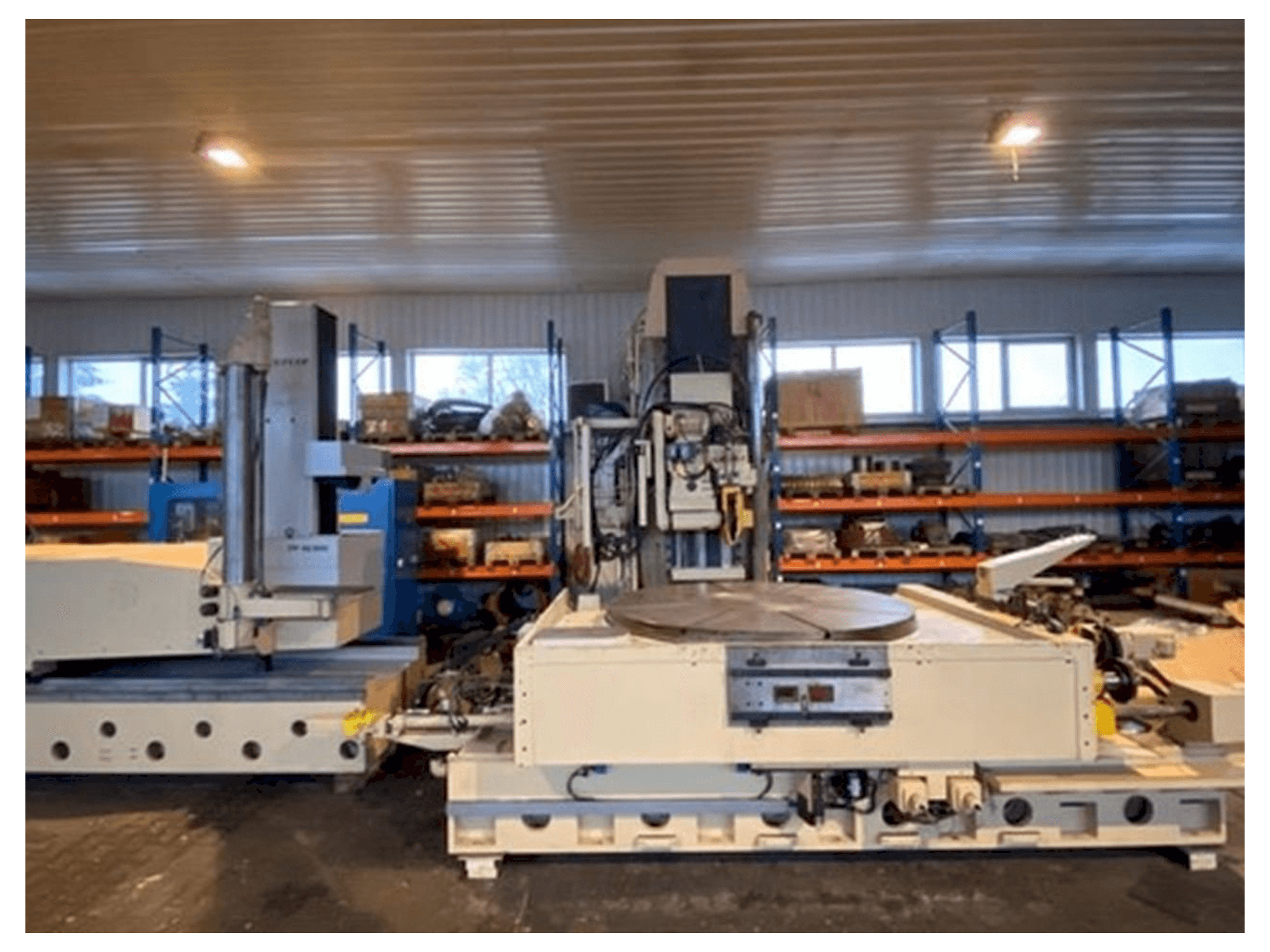

Front view of NILES ZSTZ 35 machine

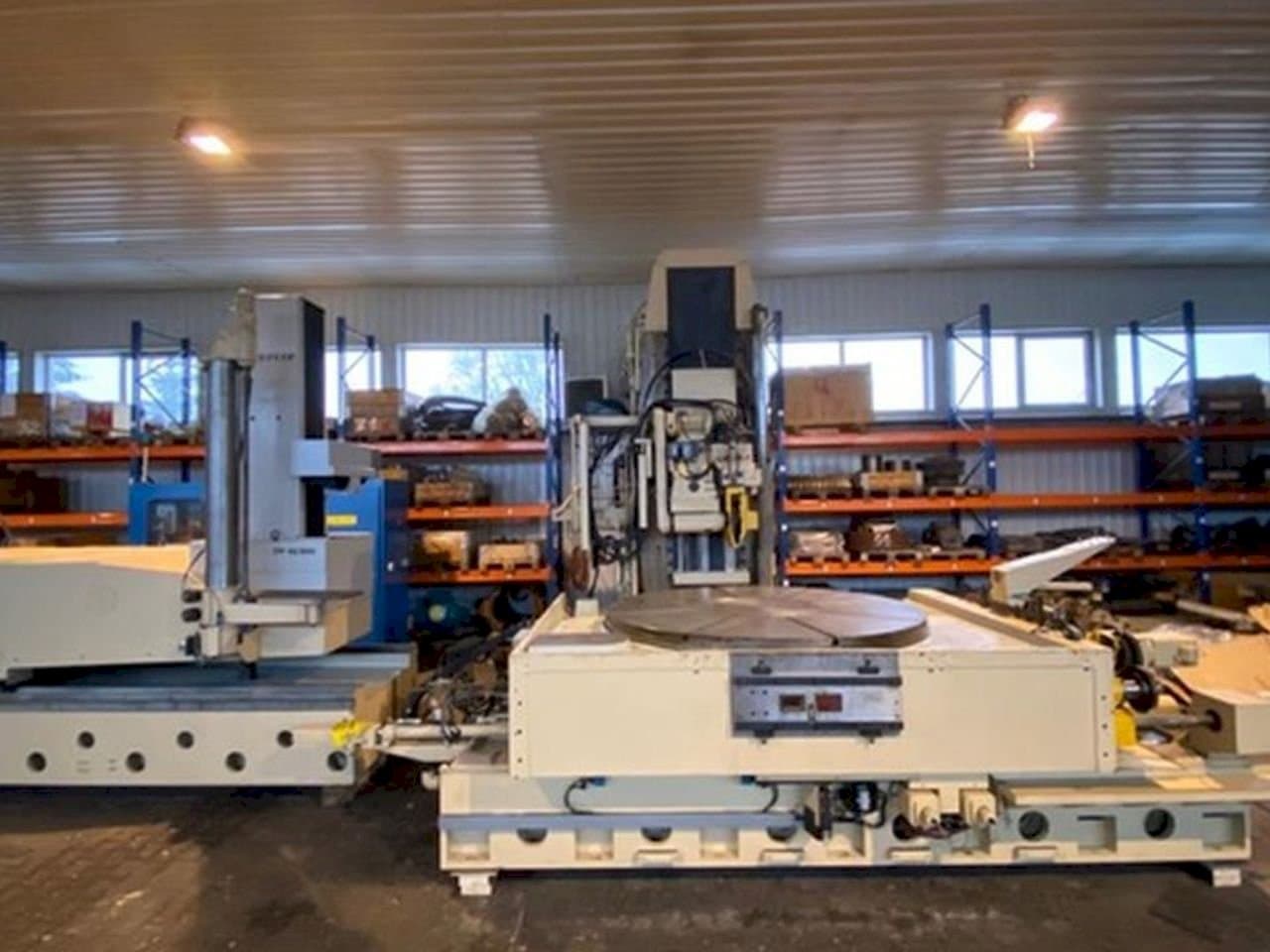

Front view of NILES ZSTZ 35 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

NILES - ZSTZ 35PL-GRI-NIL-1994-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This NILES ZSTZ 35 Grinding Machine was built in Germany in the year 1994 and mechanically renovated in 2005. It is equipped with a HEIDENHAIN control unit. This machine can operate with a grinding spindle speed range 120 - 6300 rpm. It includes an air conditioned cabinet, a geometric control center HOFLER TPF 40/1000 for certifications and a mechanical rolling with sets of gears. This machine is working and from the beginning of April 2021 is ready for tests.

Overview

  • brand: NILES
  • year: 1994
  • MODEL: ZSTZ 35
  • application type: Grinding
  • Location: Poland
  • machine type: Cylindrical Grinding Machine
  • control unit brand: HEIDENHAIN

Technical Information - NILES ZSTZ 35

Control Unit

  • Control Brand: HEIDENHAIN

Dimensions

  • Machine Depth: 7600 mm
  • Machine Height: 4500 mm
  • Machine Weight: 57300 kg
  • Table Load: 30000 kg

Additional Information

Additional equipment

  • air conditioned cabinet
  • Geometric control center: HOFLER TPF 40/1000 for certifications
  • Mechanical rolling with sets of gears

Machine Benefits

Qualitative Machine Benefits

  • The machine was mechanically renovated in 2005.
  • The machine is working and from the beginning of april 2021 ready for tests

Technical Machine Benefits

  • Max wheel diameter: 3. 500 mm
  • Gear width: 710 mm
  • Max module: 34 / min module: 4
  • Min root circle dia. : 350 mm
  • Number of teeth: 16-600
  • Max. Helix angle: 35 deg
  • Table diameter: 2000 mm / table bore diameter: 450 mm
  • Max. Ram stroke: 250 mm / min. Ram stroke: 100 mm / ram strokes: 20-120 hub/min
  • Grinding wheel diameter: 300-400 mm / grinding spindle speed: 120 - 6300 u/min
  • Max. Width of grinding wheel: 32/40/50 (63) mm / grinding wheel hole diameter: 127

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
