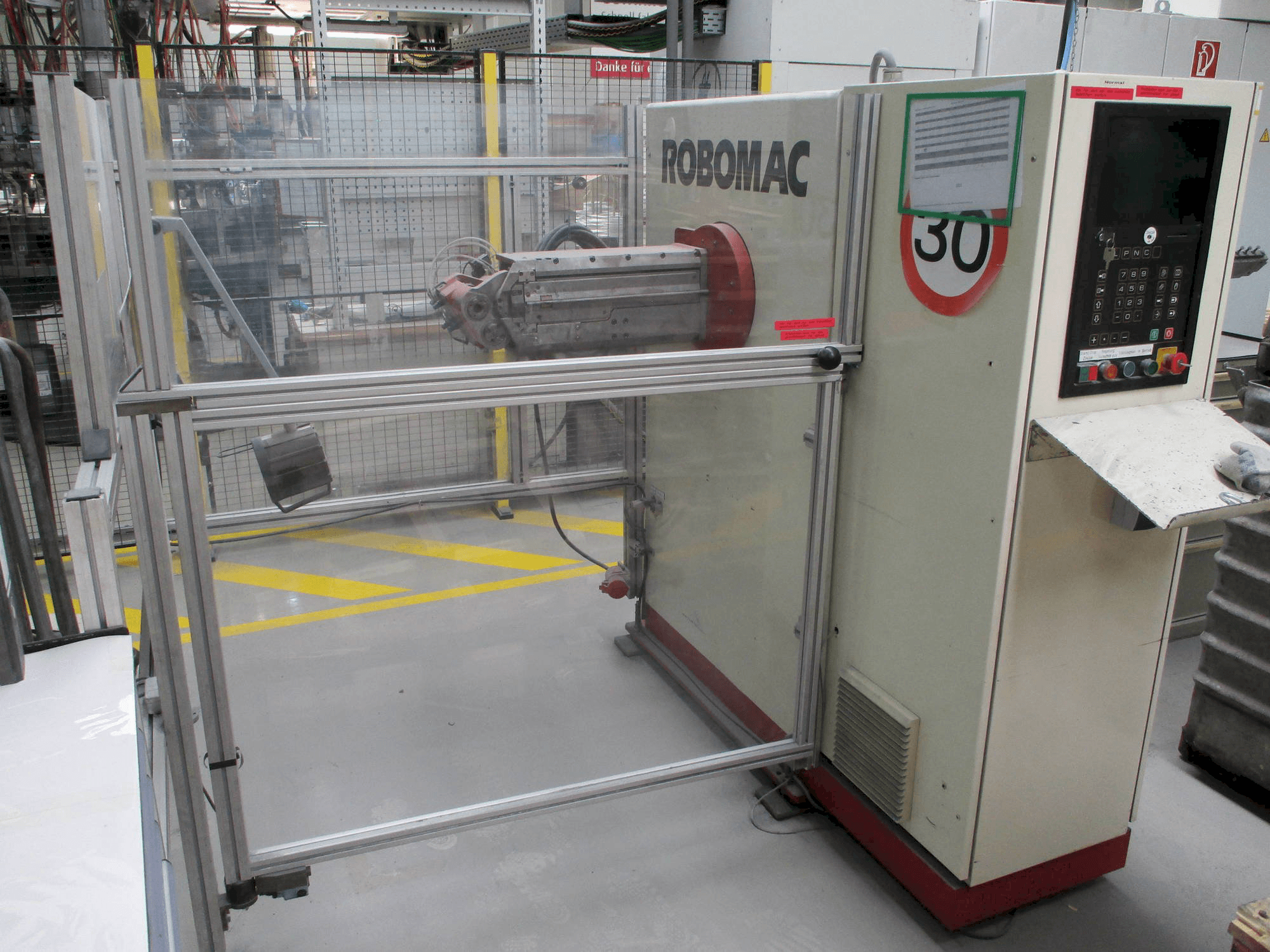

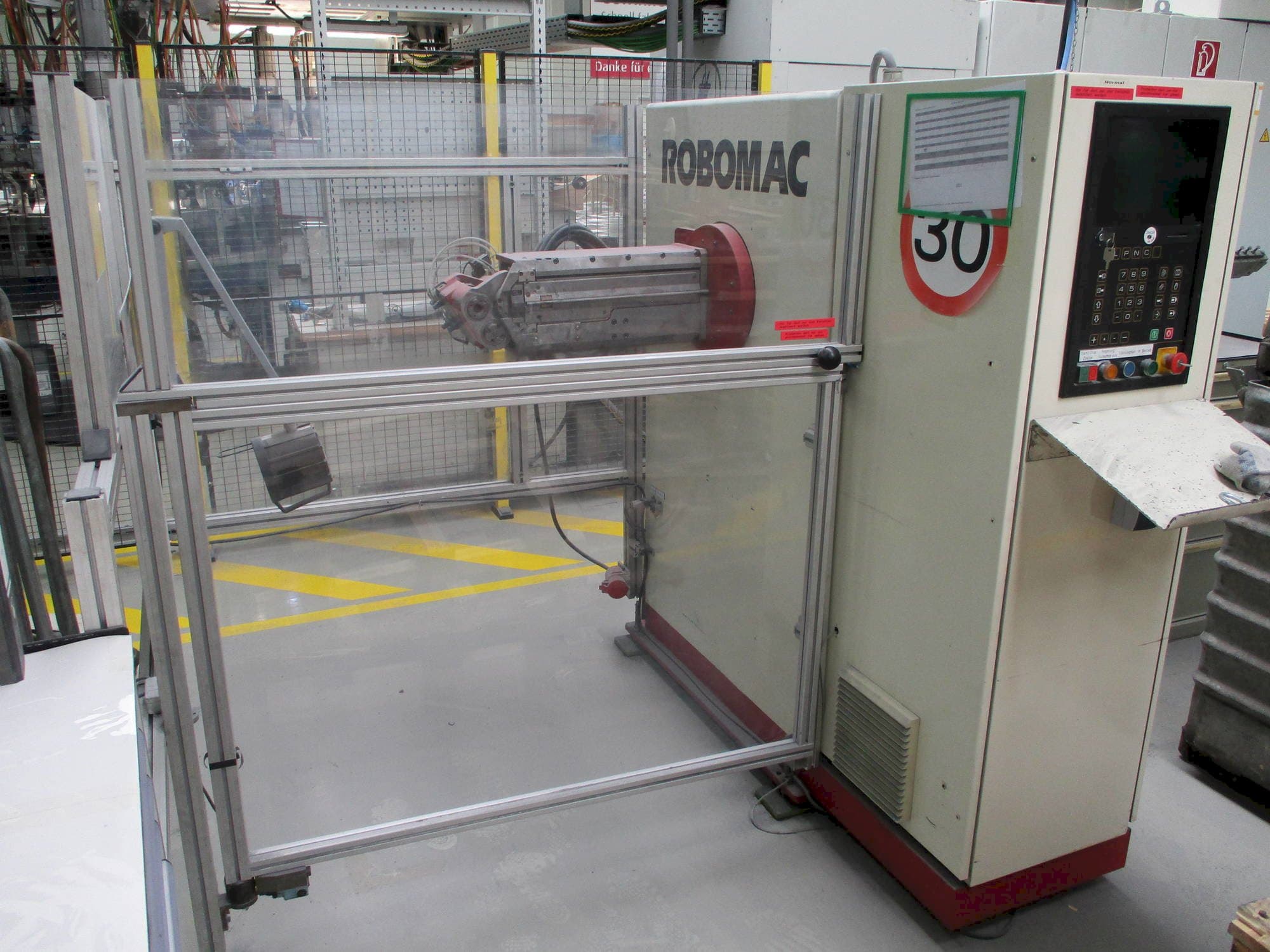

Numalliance/Latour Robomac 206

Machine Benefits

• Technical Machine Benefits:
  • - 1x ring no. 18 (tool no. 206 002 008) 1x mandrel no. 10a (tool no. 206 001 010) 1x ring no. 11 (tool no. 206 002 003) 1x mandrel no. 11 (tool no. 206 001 014)
  • - Feed rollers (each for 2 wire diameters): 2 pieces for wire diameter d= 2. 2 mm and d= 2. 5 mm 4 pieces. For wire diameter d= 2. 5 and d= 2. 8 mm 4 pieces for wire diameter d= 3,5 and d= 4,0 mm
  • - Wire cutter parts: 1x holder no. 13 (wkzg. -nr. 206 007 001) 1x wire guide for wire d= 2,2 mm (wkzg. -nr. 206 006 006) 1x knife (small) for wire d= 2,2 mm (truck no. 206 009 003) 1x movable knife for wire d= 2,2 mm (wkzg. -nr. 206 010 012) 1x wire guide for wire d= 2,5 mm (wkzg. -nr. 206 006 008) 1x knife (small) for wire d= 2,5 mm (tool no. 206 009 008) 1x movable knife "366" for wire d= 3 mm (tool no. 206 010 006)
  • - 2 pcs. Festo valves meh-5/2-1/8-p-b, new or as good as new. For pneumatic control of the bending heads.
  • - 2 pieces wire guides (for the feeding area)
  • - Wire diameter: 2-6 mm
  • - Support arm length: 600 mm
  • - Number of bending heads: 2
• Qualitative Machine Benefits:
  • - Functional/ready for use. Age-related wear and tear; corresponding tolerances in bending movements and feed/feed lengths.
