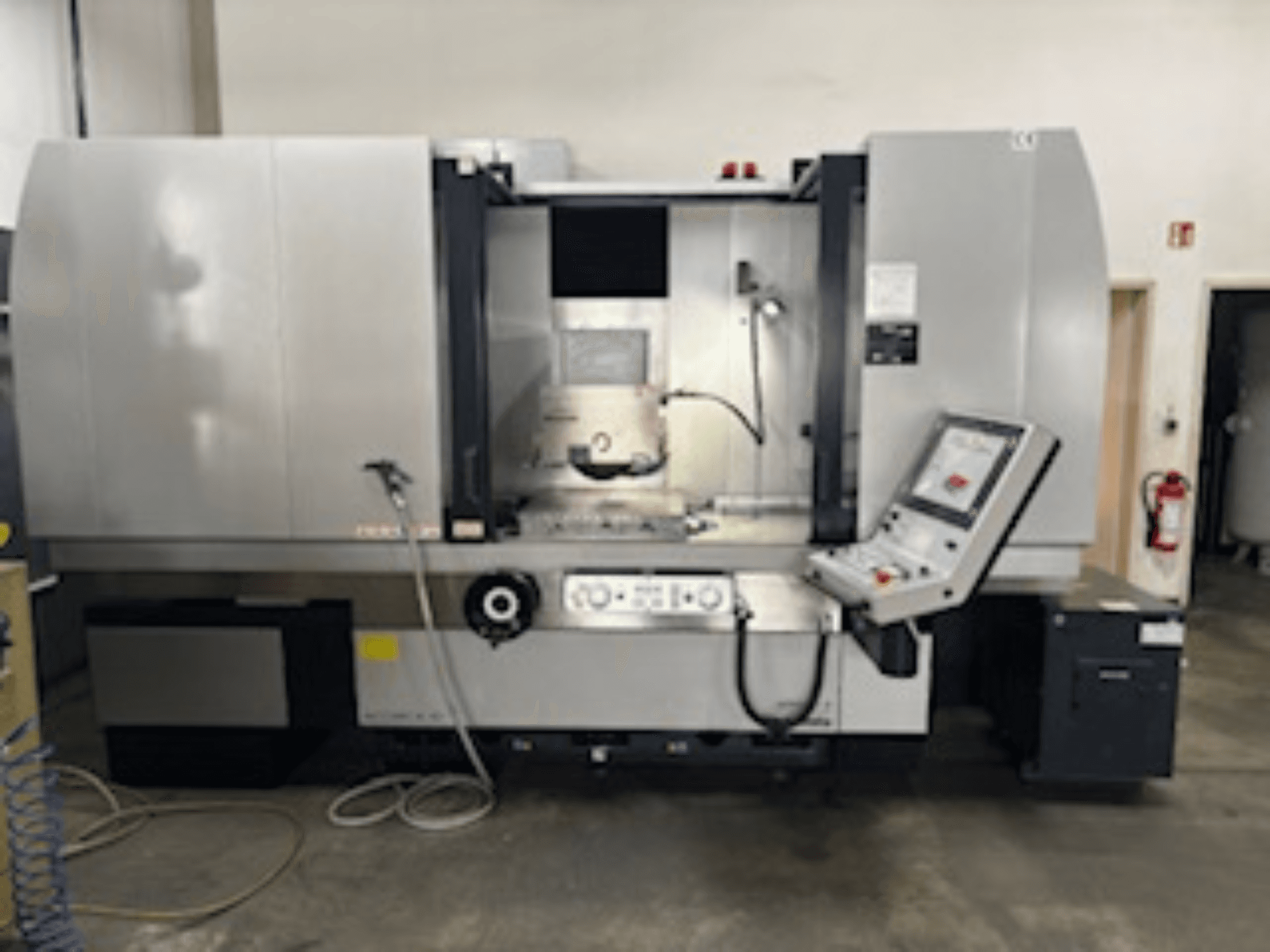

This OKAMOTO ACC 64-106 CA-iQ was manufactured in 2023. It features a variable wheel speed up to 2800 min⁻¹, a spindle motor power of 7.5 kW, and a grinding wheel size of 405 x 50 mm. Ideal for precision surface grinding, this machine offers advanced control with its hydraulic and servo motors. Contact us for more information about this machine.
Overview
- brand: OKAMOTO
- year: 2023
- MODEL: ACC 64-106 CA-iQ
- application type: Grinding
- Location: Germany
- machine type: Surface Grinding Machine
- control unit brand: FANUC
Technical Information - OKAMOTO ACC 64-106 CA-iQ
Control Unit
- Control Brand: FANUC
Additional Information
Feeds & speeds (common to all models)
X-axis (longitudinal)
Feed rate (hydraulic): 3–25 m/min (variable)
Handwheel feed: 47 mm per revolution
T-slots: 3 x 17 mm (optional)
Y-axis (vertical / grinding head)
Rapid feed: 2000 mm/min
Auto infeed (coarse): 0.001–0.03 mm (12 steps)
Auto infeed (fine): 0.0001–0.01 mm
Spark-out strokes: 0–5
Handwheel division: 0.1 / 1 / 10 µm
Z-axis (cross feed)
Continuous feed: 0–2 m/min
Intermittent feed: 0.5–20 mm
Rapid feed: 4 m/min
Handwheel division: 1 / 10 / 50 µm
Grinding wheel & motors
Wheel dimensions (dia x width): 405 x 50 mm
Bore diameter: 127 mm
Wheel speed: 1–2800 min⁻¹ (variable)
Spindle motor power: 7.5 kW
Hydraulic pump motor: 2.2 kW
Vertical servo motor: 0.5 kW
Cross feed servo motor: 0.75 kW
Electrical requirements
Voltage/frequency: 400 V / 50 Hz
Connected load: approx. 24 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
