➤ Used OKAMOTO OGM 250UDX GRIND-X For Sale | gindumac.com

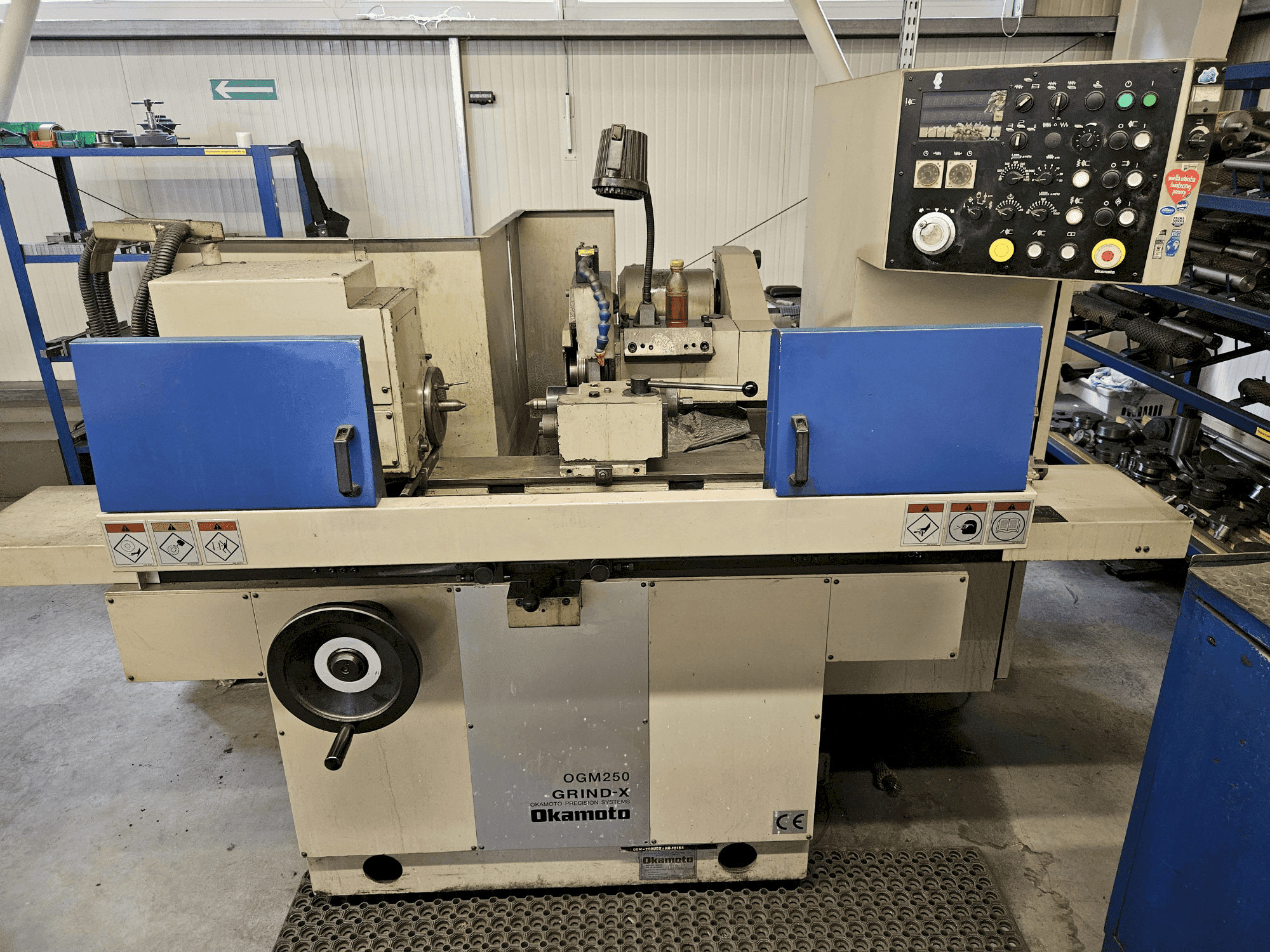

This OKAMOTO OGM 250UDX GRIND-X cylindrical grinding machine was manufactured in 2007. It features a maximum workpiece diameter of 220 mm and a distance between centers of 500 mm. The grinding wheel measures 305 mm in diameter. With a robust design, it weighs approximately 1900 kg. Consider the opportunity to buy this OKAMOTO OGM 250UDX GRIND-X cylindrical grinding machine. Contact us for more information.

Overview

brand: OKAMOTO
year: 2007
MODEL: OGM 250UDX GRIND-X
application type: Grinding
Location: Poland
machine type: Cylindrical Grinding Machine

Technical Information - OKAMOTO OGM 250UDX GRIND-X

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): 2880 mm x 1851 mm x 1641 mm /weight (kg): approximately 1900 kg
- - Spindle speed range: 150/250/400 rpm /spindle motor power: 0. 2 kw
- - X-axis: max travel 200 mm, rotation angle ±30º / z-axis: max travel 650 mm, swivel angle +4º / -9º, feed rate range 50-4000 mm/min
- - Workpiece drm over bed: 200 mm /workpiece drm over support: 220 mm/ workpiece weight: 25 kg
- - Grinding spindle drive power: 1. 5 kw/ table drive power: 0. 75 kw (ac servo motor) /slide drive power: 0. 40 kw (ac servo motor)/ internal grinding device power: 0. 75 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
