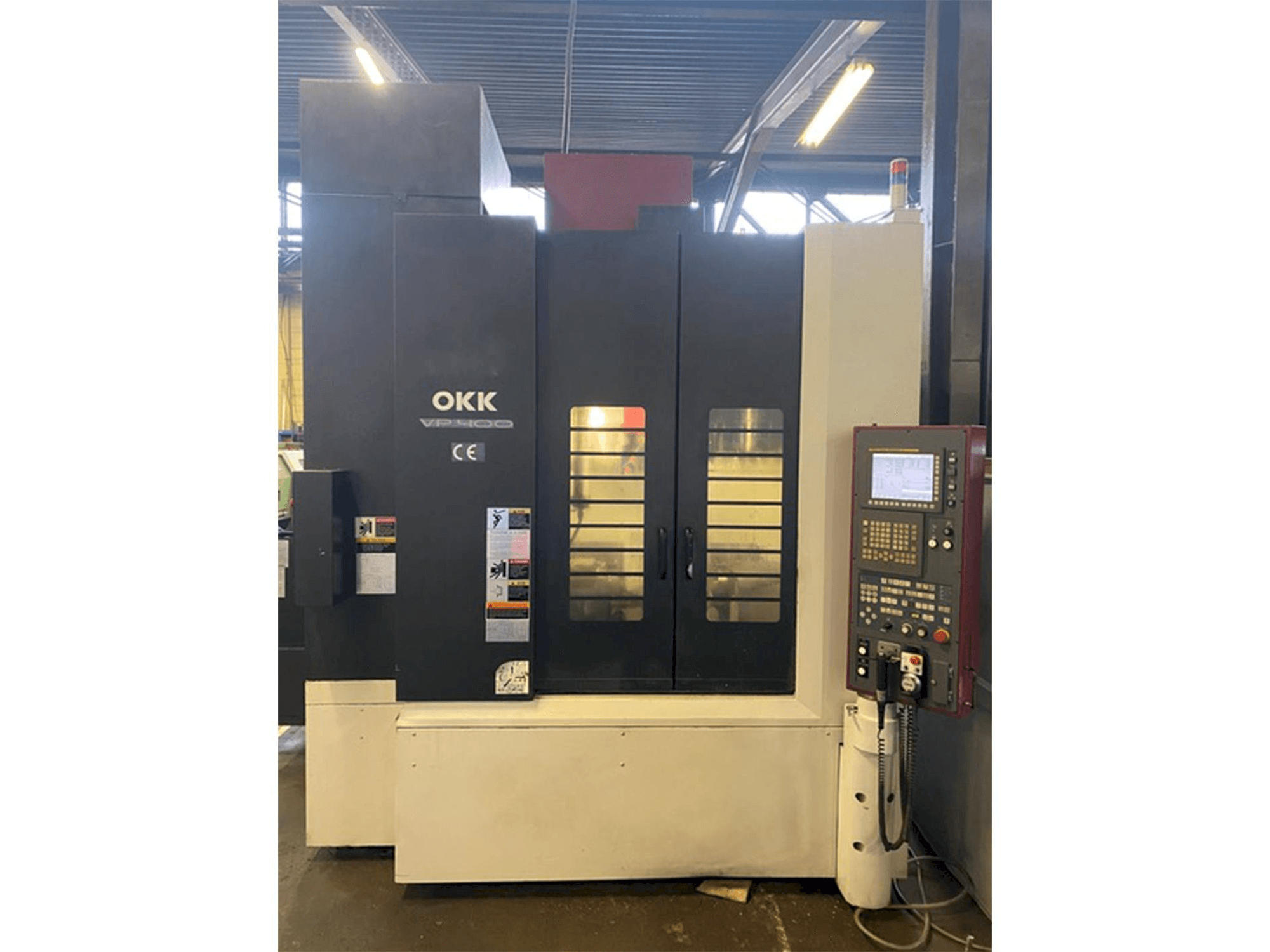

OKK VP400 Vertical Machining Center

This OKK VP400 Vertical Machining Center was manufactured in Japan in 2008. It has 25000 running hours of witch 6420 are cutting time. This machine works with a FANUC 160is-MB Control unit and a spindle speed between 100 - 12,000 rpm.

Overview

brand: OKK
year: 2008
MODEL: VP400
production hours: 25000
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - OKK VP400

Control Unit

Control Brand: FANUC
Control Model: 160is-MB

Dimensions

Machine Depth: 2050 mm
Machine Height: 2950 mm
Machine Weight: 8500 kg
Table Load: 200 kg

Movement

X-axis Travel: 600 mm
Y-axis Travel: 410 mm
Z-axis Travel: 460 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Power: 7.5 kW
Spindle Speed: 12000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Hydraulic clamping through working table
Automatic power off
Air through spindle
Full enclosure
Manuals

Technical Machine Benefits

4 axis table tilting degree: -130 +30
5 axis table turning degree: 360000
Feedrate mm-min: 1-36,000
Rapid traverse mm-min: x, y, 48,000 - z 36,000
Working table - pallets
Dimensions mm: day 350
Taper: steep cone 40
Tool magazine system: horizontal chain
Tool changer: double gripper
Spindle head and ball screw cooling oil temperature controller

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
