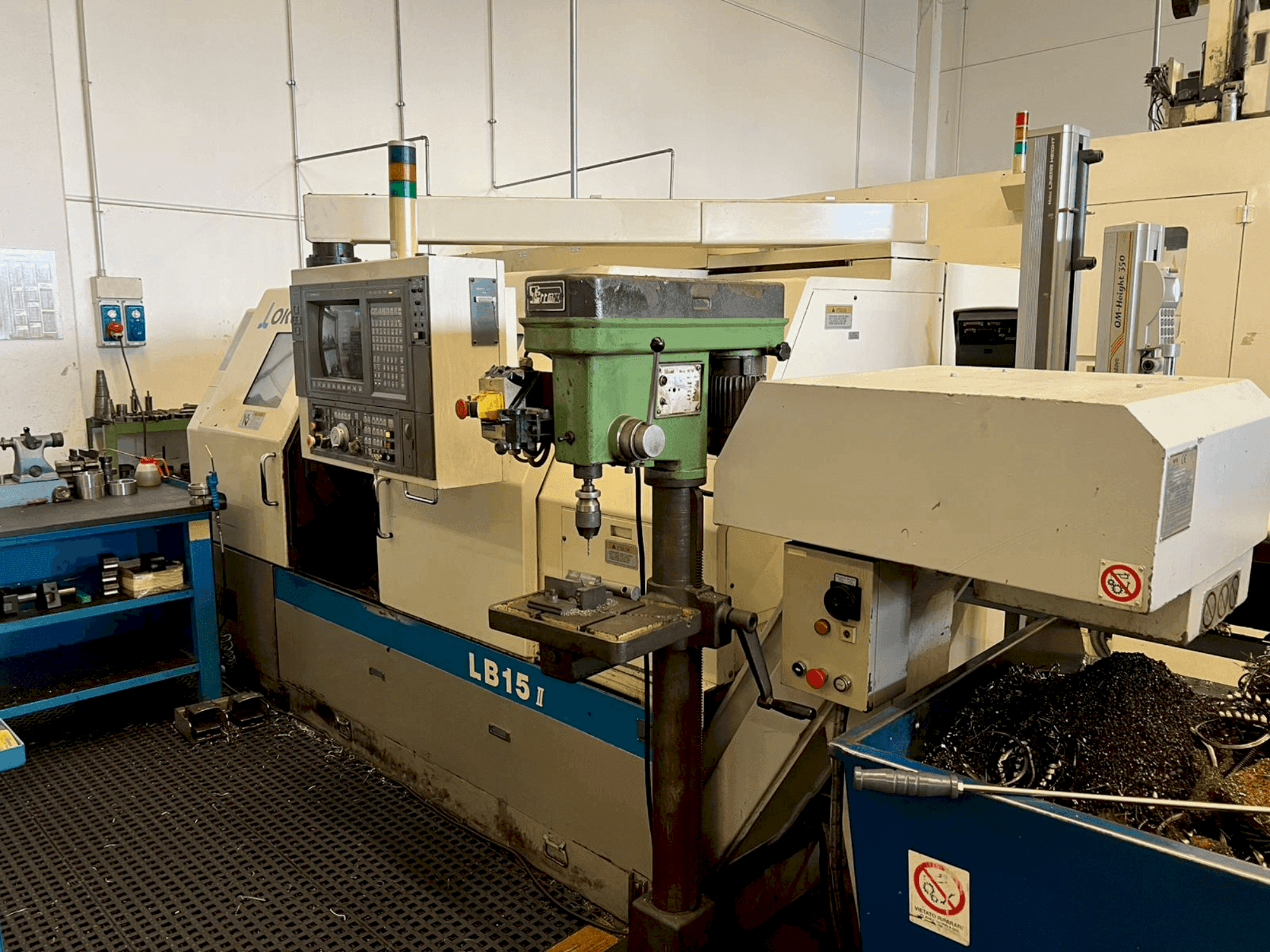

Front view of Okuma LB15-II  machine

Okuma - LB15-IIIT-TUR-OKU-1998-00003

16,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Okuma LB15-II horizontal turning machine was manufactured in 1998. It features a 12-station tool holder, hydraulic tailstock, and a chip removal system. With a maximum turning diameter of Ø 340 mm and a distance between centers of 1020 mm, it's equipped for various machining tasks. The spindle speed can reach up to 3500 rpm, ensuring efficient operations. Consider the Okuma LB15-II machine we have for sale. Contact us for further details regarding this horizontal turning machine.

Overview

  • brand: Okuma
  • year: 1998
  • MODEL: LB15-II
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: OKUMA

Technical Information - Okuma LB15-II

Control Unit

  • Model: OSP 7000 L
  • Brand: OKUMA

Main drive

  • Spindle speed range: 45 - 3500 1/MIN
  • Spindle motor power: 15/11 kW - 20/15 hp (20 min/cont.)
  • Number of axis: 2

Movement

  • X-AXIS Movement: 260 mm
  • Z-AXIS Movement: 1020 mmm

Workpiece

  • Workpiece drm: 530 mm
  • Workpiece x: 1000 mm

    Additional Equipment

    • - Self-centering: 250 mm SMW AUTOBLOK
    • - Tool Presetting
    • - 12-station Tool Holder
    • - Hydraulic Tailstock
    • - Chip Removal System
    • - Lighting System
    • - all necessary documentation: Operating and Maintenance Manual, Programming Manual, Electrical Schematics Manual

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Linear interpolation and circular interpolation
        • - Simultaneous bi-axial control of x and z axes
        • - Speed control: direct sb control with 4 digits
        • - Manual intervention mechanism: adjustable from 50 to 200%
        • - Tailstock spindle diameter: 90 mm
        • - Conical hole of tailstock spindle: cm5
        • - Tailstock spindle travel: 120 mm
        • - Power supply voltage: 400 v - 50 hz
        • - Maximum work radius on cross slide: 340 mm
        • - Distance between centers: 1020 mm
      • Qualitative Machine Benefits:
        • - Machine has always been maintained by the manufacturer and is in excellent working condition
        • - Maximum turning diameter for length: 340 x 1000 mm
        • - Spindle tip type: jis a2-6 [jis a2-8]
        • - Bar passage: 62 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
