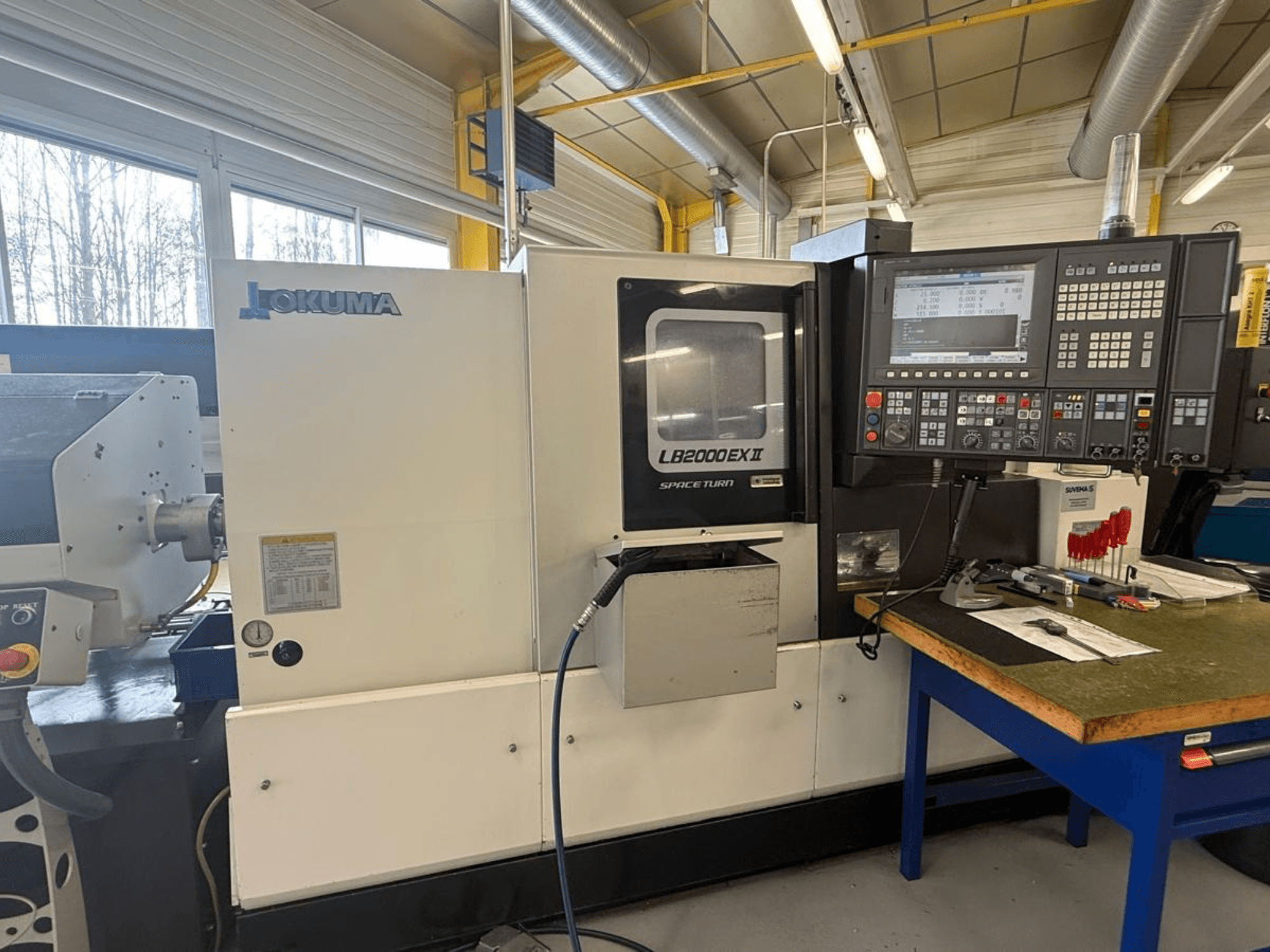

This 5-axis Okuma LB2000EX II was manufactured in 2013. It features a maximum turning diameter of 360 mm and a turning length of 500 mm. The machine includes a robust turret with 12 stations and a main spindle speed of 6,000 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LB2000EX II horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2013
- MODEL: LB2000EX II
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma LB2000EX II
Control Unit
- Control Brand: OKUMA
Movement
- Number of Axes: 5
- X-axis Travel: 260 mm
- Z-axis Travel: 550 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
Additional Information
Maximum turning diameter: 360 mm
Maximum turning length: 500 mm
Maximum bar capacity: 62 mm
W-axis travel: 500 mm
C-axis indexing: 0.001°
Main spindle nose: ASA 6"
Sub-spindle maximum speed: 6,000 rpm
Sub-spindle motor power: 11 / 7.5 kW
Turret stations: 12
Driven tool speed range: 45–6,000 rpm
Driven tool motor power: 5.5 / 3.7 kW
Turning tool size: 20 × 20 mm
Boring bar capacity: Ø32 mm
Additional equipment
Bar feeder: TOP XF365 (YOM 10/2013, installed 2014)
Hinge-type chip conveyor
Manual tool setter (presetting)
Parts catcher
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
