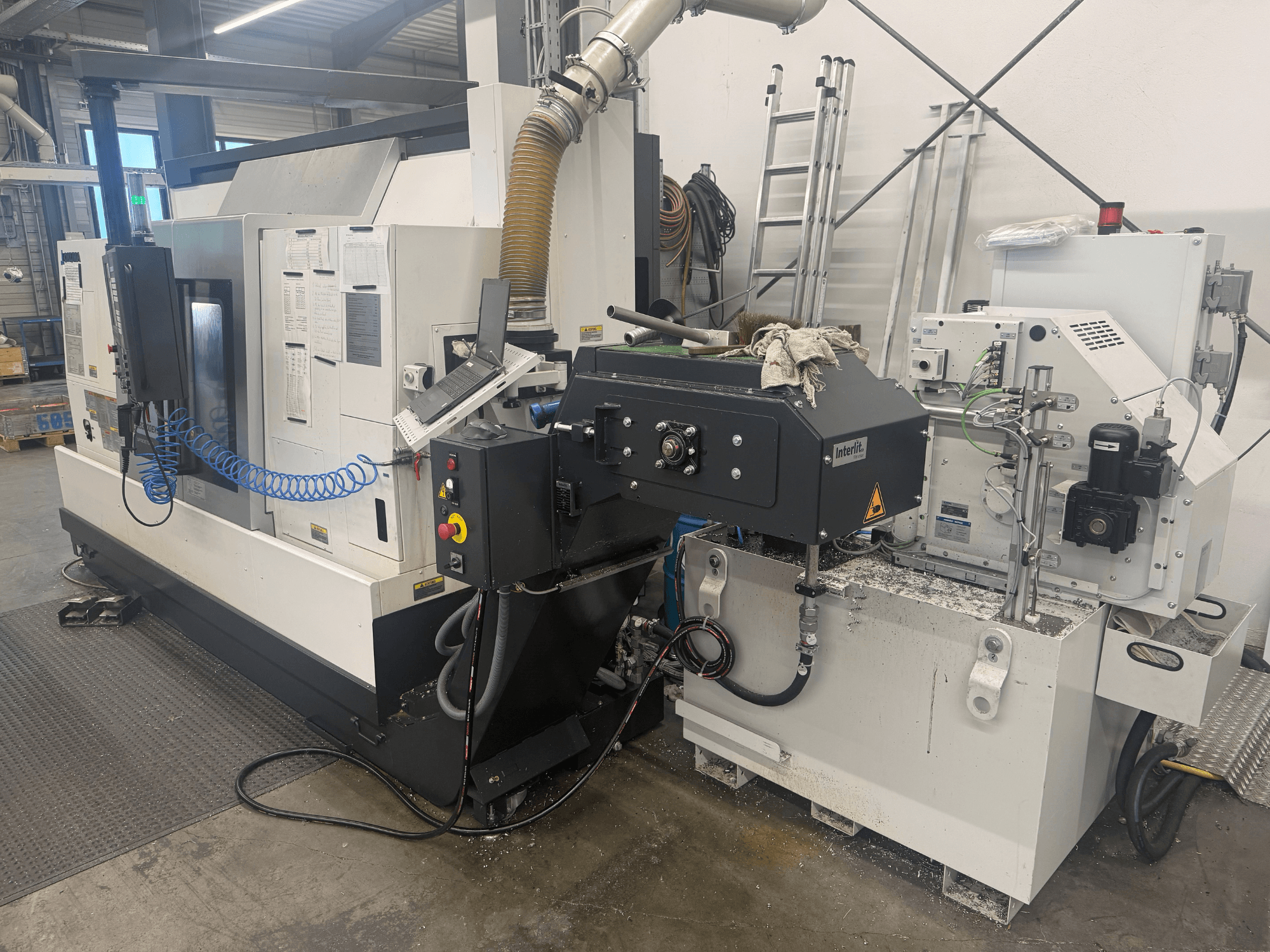

This 4-axis Okuma LB3000II-MYC 950 was manufactured in 2020. It features a maximum turning diameter of 340 mm and a maximum turning length of 950 mm. The machine is equipped with a robust main spindle power of 30 kW and a maximum spindle speed of 4,200 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LB3000II-MYC 950 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2020
- MODEL: LB3000II-MYC 950
- production hours: 5379
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma LB3000II-MYC 950
Control Unit
- Control Brand: OKUMA
- Control Model: OSP-P300LA
Dimensions
- Machine Weight: 6600 kg
Movement
- C-axis: 360°
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 1010 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 30 kW
- Spindle Speed: 4200 RPM
- Through-spindle Coolant: Yes
- Tool Stations: 12
Additional Information
Max Turning Diameter: 340 mm
Max Turning Length: 950 mm
Swing Over Cross Slide: 470 mm
Main Spindle Torque: 700 Nm
Spindle Speed Range: 42 - 4,200 rpm
Spindle Bore: 91 mm
Spindle Nose: A2-8 (KK Size 8)
Front Bearing Diameter: 140 mm
Turret Stations: 12
Driven Tool Power: 7.1 kW
Driven Tool Torque: 23.7 Nm
Driven Tool Speed: 4,500 rpm
Driven Tool Speed Range: 45 - 4,500 rpm
Rapid Traverse X: 25 m/min
Rapid Traverse Z: 30 m/min
Rapid Traverse Y: 12.5 m/min
Rapid Traverse C: 200 rpm
Tailstock: NC Tailstock
Tailstock Force: 5 kN
Tailstock Taper: MT5
Chuck: SMW KNCS-N 275-86 A8
Chuck Diameter: 275 mm
Chuck Through Hole: 86 mm
Draw Tube Bore: 82 mm
Maximum Chuck Speed: 4,700 rpm
Collet Chuck: Hainbuch Spanntop mini Axzug 65 K8
Collet Capacity: 4 - 65 mm
Collet Chuck Diameter: 204 mm
Collet Chuck Length: 155 mm
Maximum Collet Chuck Speed: 6,000 rpm
Coolant System: Knoll KF 110/700
Through-Spindle Coolant (TSC): Yes
High Pressure Coolant: 70 bar
Coolant Tank Capacity: 700 l
Filter Capacity: 110 l/min
Power Supply: 400 V
Phases: 3
Frequency: 50 Hz
Maximum Connected Load: 38 kVA
Total Current Consumption: 54.9 A
Maximum Motor Current: 219 A
CE Marked: Yes
Driven Tools: Yes
Sub Spindle: No
Chip Conveyor optional, not included: Interlit ISF
Chip Discharge: Right Side
Chip Conveyor Discharge Height: 1,200 mm
Spindle Hours: 5,379 h
Power-On Hours: 20,878 h
Special equipment or accessories are not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
