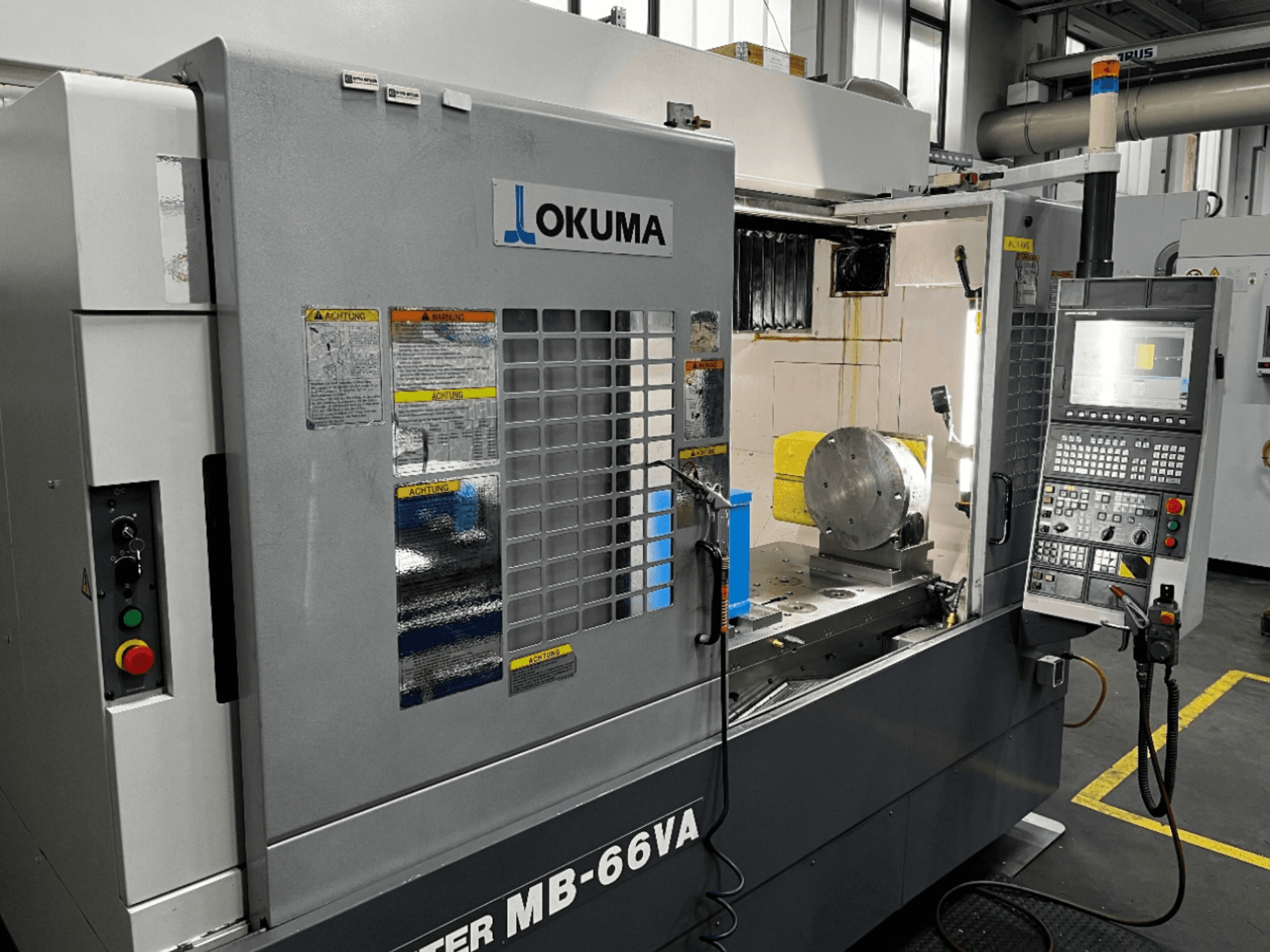

This 3-axis Okuma MB66-VA was manufactured in 2010. It features a travel of 1500 mm on the X-axis, 660 mm on the Y-axis, and 660 mm on the Z-axis. The machine has a table size of 1530 x 660 mm and a maximum table load of 1500 kg. If you are looking to get high-quality machining capabilities, consider the Okuma MB66-VA vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2010
- MODEL: MB66-VA
- production hours: 32760
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Okuma MB66-VA
Dimensions
- Machine Height: 3300 mm
- Machine Length: 3000 mm
- Machine Weight: 11000 kg
- Machine Width: 5800 mm
- Table Load: 1500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1500 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 660 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 48
- Spindle Speed: 15000 RPM
- Taper Size: SK 40
Additional Information
Maintenance contract: yes
Condition: About 1.5 years ago, electrical maintenance was carried out by MP-Industrietechnik; electrical components were partially replaced or cleaned
Utilization: 70%
Shifts: 2
Operating hours: 32,760 h
Control system: OSP-P200M
Table size: 1530 x 660 mm
4th axis: possible (separately controlled)
Spindle speeds: 8000 / 12000 / 15000 rpm
Magazine capacity: 20 standard (optional 32 or 48)
Number of revolvers/magazines: 1
Max tool length: 300 mm
Max tool diameter: 125 mm
Additional equipment
Zero-point clamping plate for table 1530 x 660 mm
Approx. 530 tools available (Hermle & Okuma MB66)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
