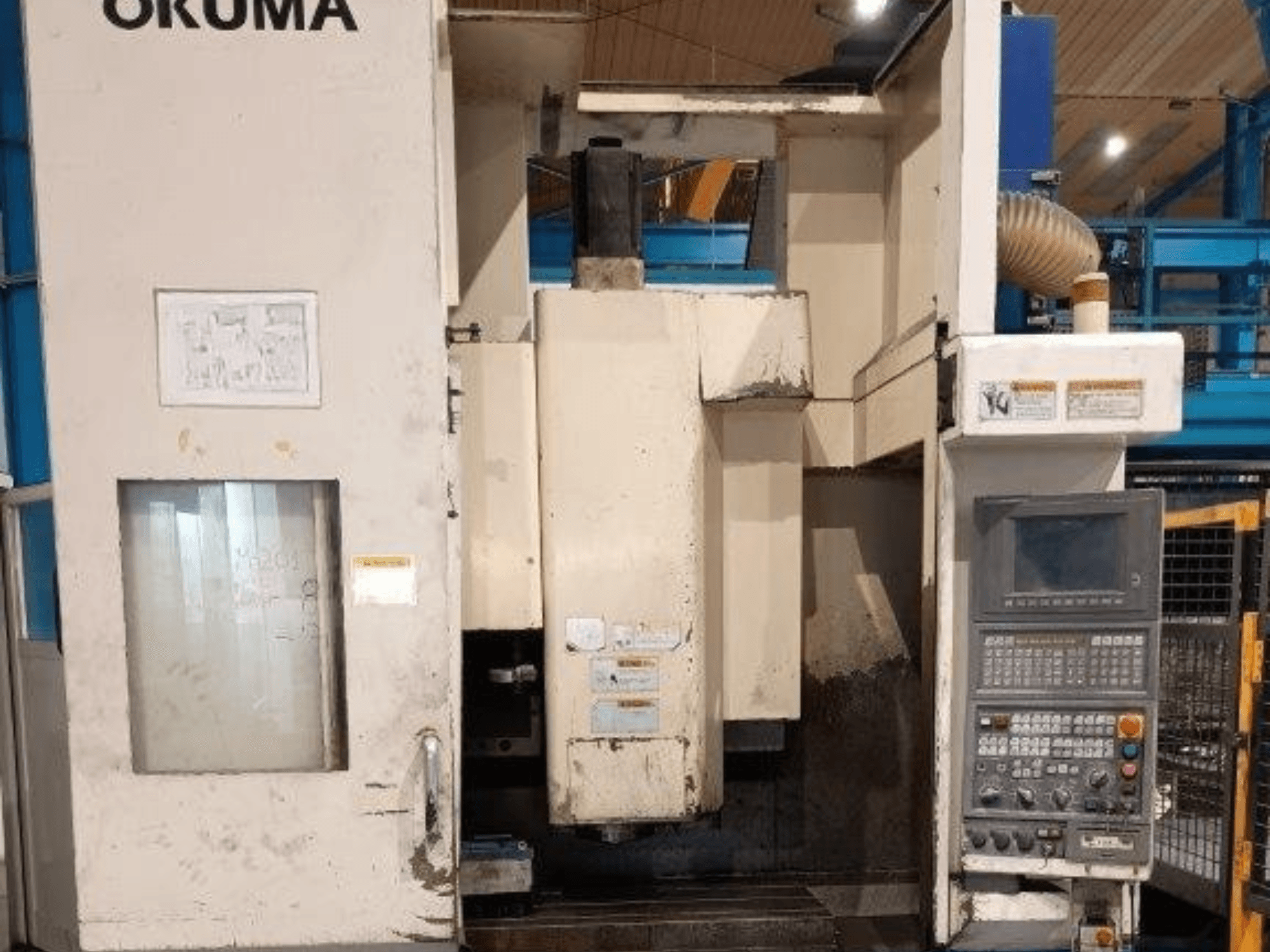

This 3s Okuma MX-45VAE vertical machining centre was manufactured in 1999. It features a travel range of 560 mm on the X-axis, 460 mm on the Y-axis, and 450 mm on the Z-axis, providing versatile machining capabilities. With a tool magazine capacity of 20 tools and a maximum tool weight of 8 kg, it is well-equipped for various applications. Consider the opportunity to buy this Okuma MX-45VAE vertical machining centre. Contact us for further details.
Overview
- brand: Okuma
- year: 1999
- MODEL: MX-45VAE
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
Technical Information - Okuma MX-45VAE
Dimensions
- Machine Depth: 2380 mm
- Machine Height: 2650 mm
- Machine Weight: 5000 kg
- Machine Width: 1800 mm
Movement
- Number of Axes: 3
- X-axis Travel: 560 mm
- Y-axis Travel: 460 mm
- Z-axis Travel: 450 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 11 kW
- Spindle Speed: 7000 RPM
Additional Information
Spindle end to table surface: 160–610 mm (6.30–24.02 in)
Table:
Working surface: 460 × 760 mm (18.11 × 29.92 in) [optional: 460 × 1000 mm (18.11 × 39.37 in)]
Table surface height from floor: 750 mm (29.53 in)
Load capacity: 3430 N (770 lbf) [optional: 4900 N (1100 lbf)]
Spindle:
Number of speeds: Infinitely variable
Taper: 7/24, NT40
Front bearing diameter: 70 mm (2.76 in)
Feedrates:
Rapid (X/Y): 36 m/min (1417 ipm)
Rapid (Z): 30 m/min (1181 ipm)
Cutting feed (X/Y/Z): 10 m/min (394 ipm)
ATC:
Tool shank: MAS BT40
Pull-stud: MAS 2
Magazine capacity: 20 tools [optional: 32 or 48 tools]
Max tool diameter with adjacent tools: 90 mm (3.54 in)
Max tool diameter without adjacent tools: 125 mm (4.92 in)
Max tool length: 250 mm (9.84 in)
Tool selection: Memory random
Motors:
Main spindle drive:
7.7/5.5 kW (10.27/7.5 hp), 30 min/continuous, for 50–1100 min⁻1
11/7.5 kW (15/10 hp), 10 min/continuous, for 1101–7000 min⁻1
Feed motors: X/Y: 3.0 kW; Z: 4.0 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
