OMC - PL 90sIT-PRE-OMC-2025-00001

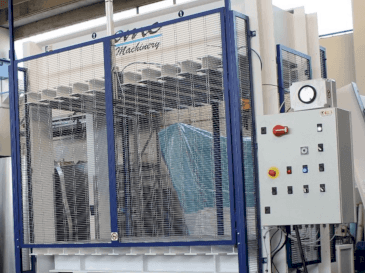

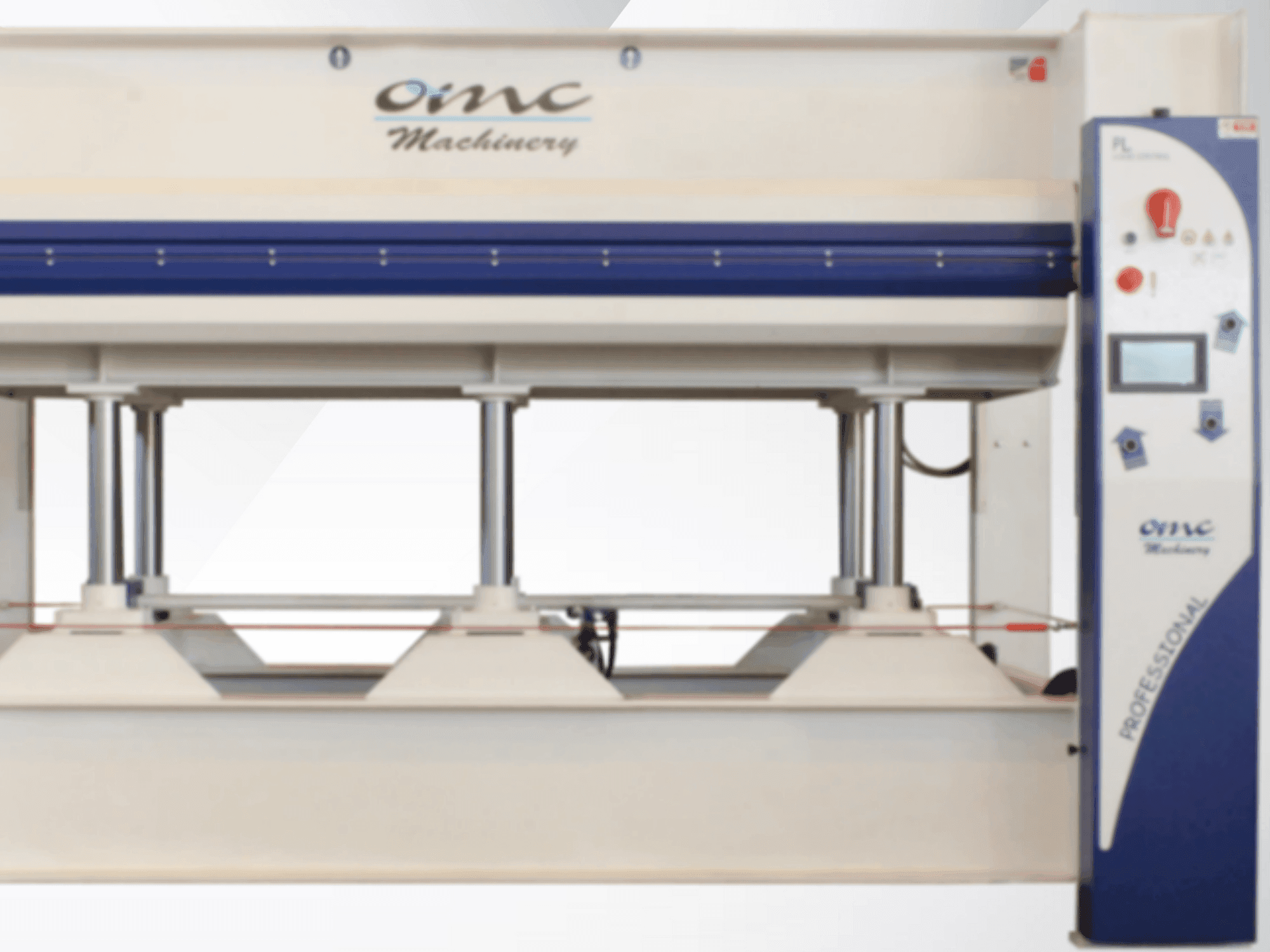

Hot platen press Brand: OMC Type: PL 90s New machine Technical data Plate size: 3000 x 1300 mm Stroke: 400 mm Stroke type: Upward stroke (from bottom to top) Plate type: Elkom electronic plates Press force: 90 tons on 80% of the surface Press cylinder: 6 x Ø 70 mm Specific pressure: 2.05 kg/cm² on 100% of the surface, 2.56 kg/cm² on 80% of the surface Loading and unloading side: 3000 mm Heating system: Electronic 25.4 kW, maximum temperature of 120°C Automatic opening with timer Control panel: Standard Connection: 400 V, 50 Hz, 3 ph Safety device: Safety cable around the entire press Emergency button Two-hand operation CE standard Press structure The press structure is made of composite and welded steel. The structure of both the fixed and moving platen is made of composite and welded steel. The press is equipped with a rack and pinion guide system to ensure perfect parallel movement during the closing/opening of the plates. Elkom heating plate Elkom electric plates with electric resistors The plates consist of a chipboard on which an aluminum sheet with the electric resistors is mounted. Maximum working temperature 120°C. Maximum thrust = 7 kg/cm² Hydraulic system - The hydraulic system consists of a two-stage unit with submersible pump to reduce noise and lubricate the rotating parts. - Pump for fast closing/opening (high flow rate - low pressure 35 l/min), press pump (low flow rate - high pressure 1.6 l/min). - 2 HP electric motor - The hydraulic unit is equipped with the following control/safety valves installed on the tank: - Maximum pressure valve: prevents excessive pressure in the hydraulic system in the event of an electrical or electronic control fault - Pressure retention valve (check valve) - Valve for low drain pressure (pre-drain valve). It prevents dangerous shocks within the system. - Oil drain magnetic valve Control panel and electrical system The pressing parameters can be set on the control panel, which is equipped with the following switches/meters: - 2 temperature regulators for setting the plate temperature - Pressure gauge for pressure regulation with automatic pressure equalization system - General on/off switch - Two manual safety buttons for closing the press - Timer for automatic opening - Switch to select manual or automatic opening of the platens after the work cycle . - Off/on switch for upper and lower platen resistance Safety systems - Timed bimanual control for closing the press - Safety rope on the four sides of the press - Platen lock for maintenance - Protective guards for the pinion and rack units - Safety stickers and warning notices - Operating and maintenance manual - The press complies with CE standards Optional: Touchscreen display - Programmable logic controller 7-inch color touchscreen display specially developed for setting the following parameters - temperatures - pressing time - Daily setting of the heating system - automatic switch-off of the heating system when the set temperature is reached and automatic temperature recovery - new system for automatic pressure setting - Possibility to save historical data/parameters - Diagnostic system Sensor for checking the plate parallel stroke Anodized (anodized) surface on the 2 plates Electrical exclusion of 2 cylinders + sensors for parallel control Mylar film on panels
