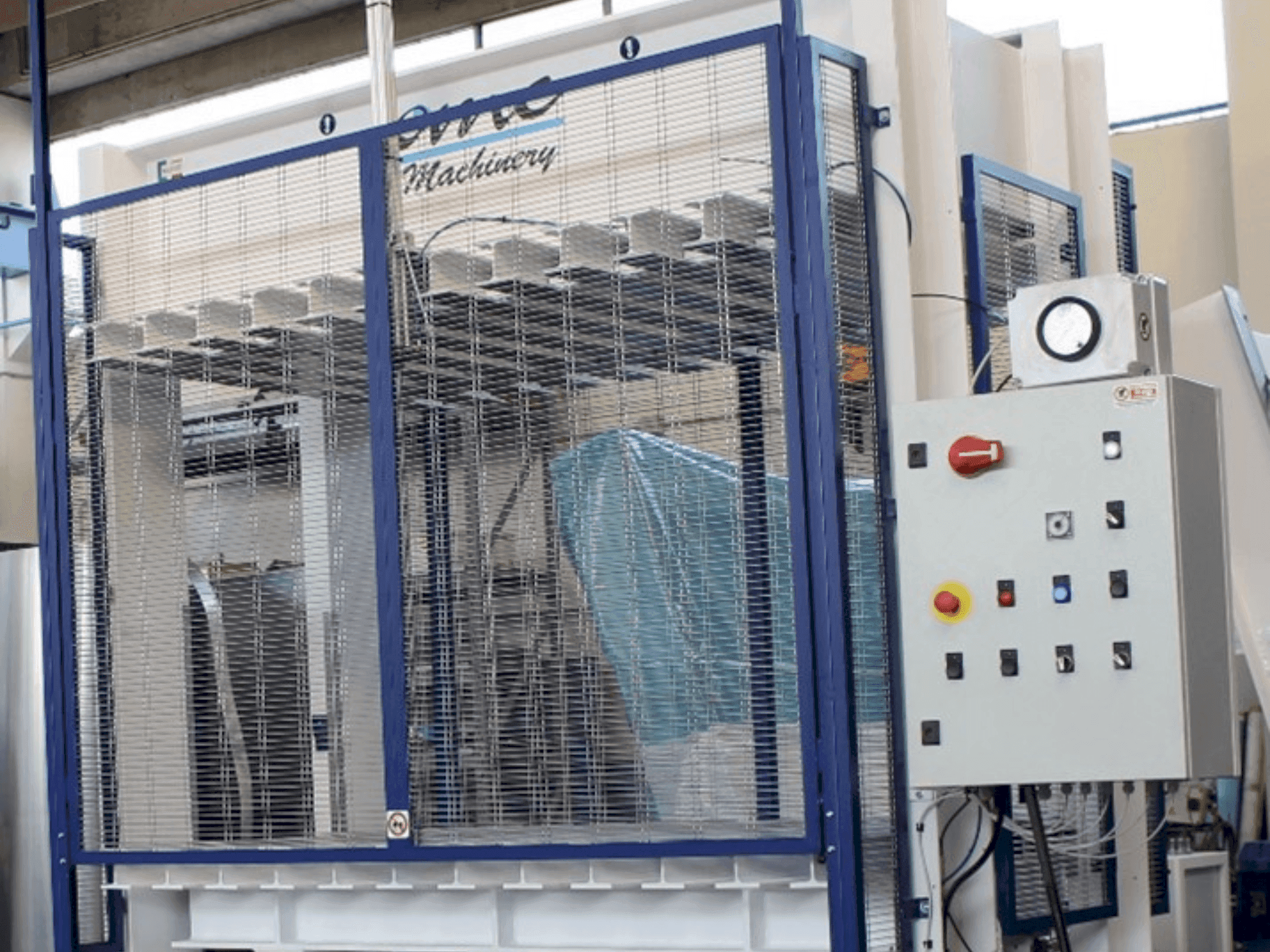

Bending press model PPC/e 120 ton 2000x1400 mm Arranged for high frequency technology TECHNICAL CHARACTERISTICS Platens size 2000x1400 mm Platens Arranged for High Frequency technology Supports for molds Included for 2 compartments (molds are not included) Pressing cylinders N° 6 cylinders Ø 85 mm Stroke 650 mm Opening size 1200 mm Type of stroke Driving platen: lower (from bottom to top) Total thrust 120 ton Specific pressure 4,28 kg / cm2 Control Board Standard panel; electrical panel with double button and adjustable pressure gauge with pressure recovery. Opening Automatic with timer Power supply 400V, 50Hz, 3ph Safety devices - Emergency button - Two hands control - Manual closing guillotine protection on front - Metallic protective nets on the sides - Aluminum foil connected to the generator Normative CE standards Press Structure The press structure is made of S275JR beams assembled and welded together. The structure of both the fixed and movable platen is made of S275JR beams assembled and welded together. The press is equipped with rack and pinion guide system to ensure a perfectly parallel movement during the closing/opening of the platens. Hydraulic system • the hydraulic system consists of a double stage unit with submerged pump to reduce the noise and lubricate the rotating parts. • quick closing/opening pump (high delivery- low pressure), pressing pump (low delivery-high pressure). • electric engine • the hydraulic unit is equipped with the following control/safety valves, installed on the tank: - maximum pressure valve to prevent to have too high pressure in the hydraulic system in case of electric or electronic control fault - pressure holding valve (retaining valve) - low releasing pressure valve (pre-releasing valve). It avoids dangerous ram hits inside the system - oil release control magnet Control panel and Electrical system The main control board is supplied with switches to control the pressing parameters: - working pressure adjustment gauges with automatic pressure recovery system - general on/off switch - timer for automatic opening with its own switch that allows to have the automatic or manual opening of platen after the working cycle. Protection system - Manual closing guillotine protection on front - Metallic protective nets on the sides - Aluminum foil connected to the generator
Overview
- brand: OMC
- year: 2022
- MODEL: PPC/e
- application type: Other Woodworking Machinery
- Location: Italy
- machine type: Other (Wood)
Additional Information
Machine Benefits
Technical Machine Benefits
- Plate size: 2000 x 1400 mm
- Press cylinders: 6 x Ø 85 mm
- Opening size: 1200 mm
- Stroke type: drive plate bottom (from bottom to top)
- Specific pressure: 4. 28 kg/cm²
- Connection: 400 v, 50 hz, 3 ph
Extra Information
Control Unit Control Panel: Basic equipment with electrical control module, double button, adjustable pressure gauge with pressure recovery Automatic Opening: Automatic opening with timer Protection Device Safety Features: Emergency call button Two-hand operation Manually closing guillotine guard at the front Metal protective grilles on the sides Aluminum foil connected to the generator CE Standard Compliance Press Structure Material: Assembled and welded steel structure for both fixed and moving platen Guide System: Rack and pinion guide system ensuring parallel movement during closing/opening Hydraulic System Components: Two-stage power unit with a pump for noise reduction and lubrication High flow rate pump for fast closing/opening and low flow rate press pump for high pressure Electric motor Control/Safety Valves: Maximum pressure valve Pressure retention valve (check valve) Low drain pressure valve (pre-drain valve) Oil drain magnetic valve Control Panel and Electrical System Features: Pressure gauge for setting working pressure with automatic pressure equalization system General on/off switch Automatic opening timer with switch for automatic/manual plate opening after work cycle
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
