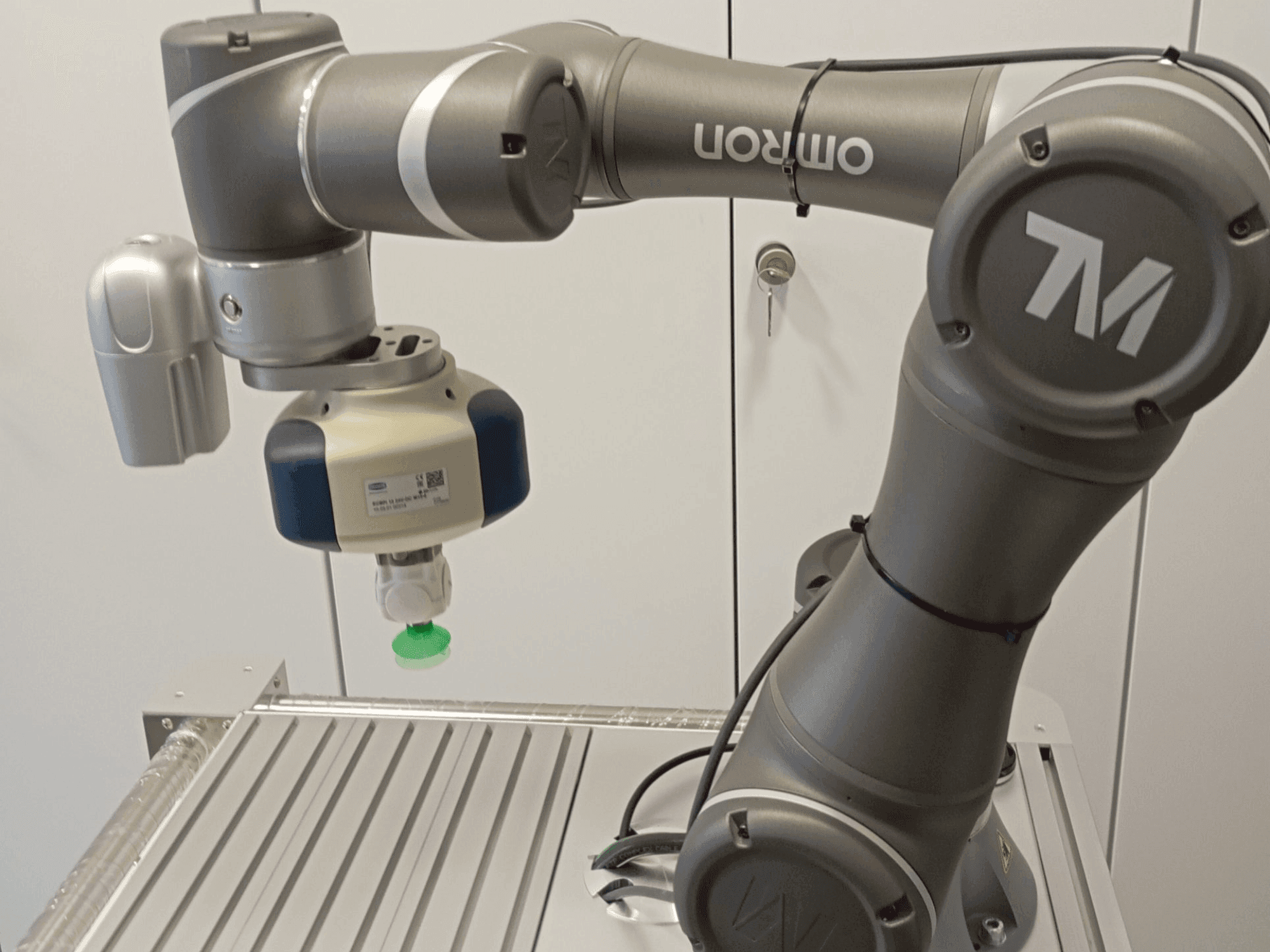

This OMRON TM5-700 robot arm was manufactured in 2019. It is designed for precision and efficiency in automated tasks. Ideal for industries looking to enhance their automation capabilities. Contact us for more information.
Overview
- brand: OMRON
- year: 2019
- MODEL: TM5-700
- application type: Robotics
- Location: Germany
- machine type: Robot Arm
- availability: Immediately
Technical Information - OMRON TM5-700
General Data
- Measurements width: 1426 mm
- Measurements depth: 1118 mm
- Measurements height: 1776 mm
- Machine weight: 35.6 kg
Additional Equipment
- - Eye in Hand (Built-in)
- - Camera: 1.2M/5M pixels, color camera
- - Eye to Hand (Optional): Support for maximum 2 GigE cameras
Additional Information
- Technical Machine Benefits:
- - Degrees of freedom: 6 rotating joints
- - Workpiece reach: 700 mm
- - Workpiece payload: 6 kg
- - Repeatability: +/- 0. 05 mm
- - Power supply: input: 100-240 vac, 50-60 hz
- - Power supply: dc input: 22-60 vdc
- - Power consumption: typical: 220 watts
- - Temperature range: operating range: 0°c to 50°c
- Qualitative Machine Benefits:
- - "the trackscan sharp49 is a tracker-based 3d laser scanner. With its scan volume of 49 cubic metres, you can digitise large objects such as cars or trucks with high precision. It is very easy to use. Thanks to its camera beam, which records the position of the scanner, no reference marks need to be applied to the object to be scanned. This technology allows for extremely fast digitisation and therefore makes it possible, for example, to make a quality statement about a component in the shortest possible time
- - Joint Ranges: J1, J6: +/- 270° J2, J4, J5: +/- 180° J3: +/- 155° Speed: J1~J3: 180°/s J4~J6: 225°/s IP Classification: Robot Arm: IP54 Control Box: IP32 I/O Ports: Control Box: Digital Input: 16 Digital Output: 16 Analog Input: 2 Analog Output: 1 Tool Connector: Digital Input: 4 Digital Output: 4 Analog Input: 1 Analog Output: 0 I/O Interface: COM: 3 HDMI: 1 LAN: 3 USB 2.0: 4 USB 3.0: 2 Certifications: Standard: CE Optional: SEMI S2 I/O Power Supply: Control Box: 24V, 1.5A Tool Connector: 24V, 1.5A Typical Speed: 1.1 m/s
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
