➤ Used OPS INGERSOLL 650 For Sale | gindumac.com

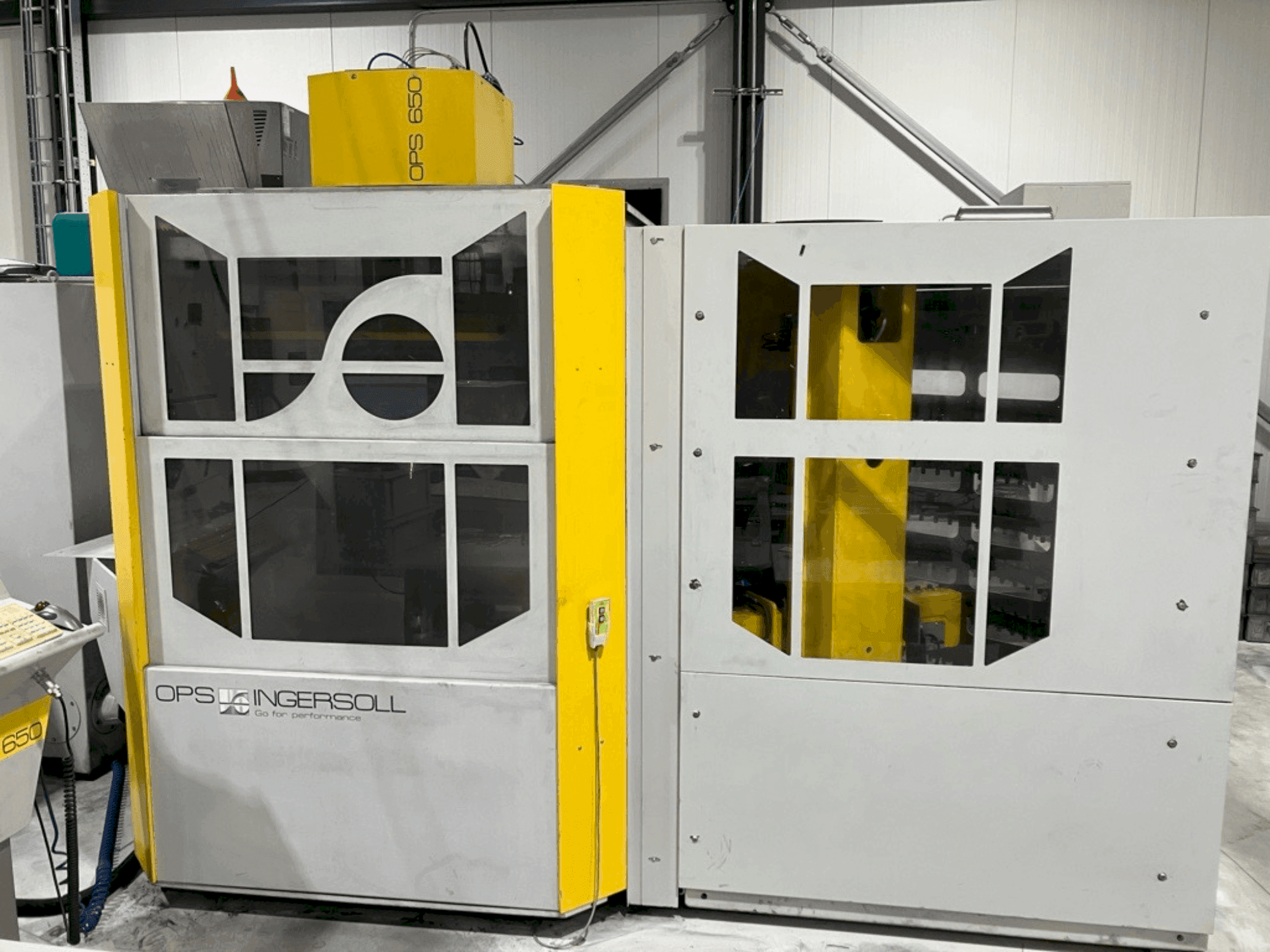

This 5-axis OPS INGERSOLL 650 was manufactured in 2004, featuring a robust vertical machining center design. It boasts a travel distance of X: 700 mm, Y: 550 mm, Z: 450 mm, and a high spindle speed up to 42,000 rpm. The machine includes a 72-tool changer and supports a load capacity of 2000 kg. If you are looking to get high-quality milling capabilities consider the OPS INGERSOLL 650 machine we have for sale. Contact us for more information.

Overview

brand: OPS INGERSOLL
year: 2004
MODEL: 650
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre

Technical Information - OPS INGERSOLL 650

Dimensions

Machine Depth: 2500 mm
Machine Height: 2700 mm
Table Load: 2000 kg

Movement

Number of Axes: 3
X-axis Travel: 700 mm
Y-axis Travel: 550 mm
Z-axis Travel: 450 mm

Technical Specification

Number of Tools: 72
Spindle Power: 17 kW
Spindle Speed: 42000 RPM
Taper Size: HSK 40

Additional Information

Acceleration: 15 m/s² /feed rate: 30 m/min /repeat accuracy: 0. 002 mm
Table loading size: 800 x 700 mm

Machine is working with an external screen to operate it

Additional equipment

Oil Mist Extraction
Milling Spindle HSK 40 Fischer
Laser System
Infrared Measuring Probe
SW 3D Form Inspect
Handling System 84 × ITS 50
16 × ITS 148
WINSTAT Connect

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
