OPS INGERSOLL - HIGH SPEED Eagle V5PL-MIL-OPS-2017-00001

Name: OPS INGERSOLL HIGH SPEED Eagle V5
Brand: OPS INGERSOLL
SKU: PL-MIL-OPS-2017-00001
Price: 185000 EUR
Availability: InStock

185,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used OPS INGERSOLL HIGH SPEED Eagle V5 | Machining

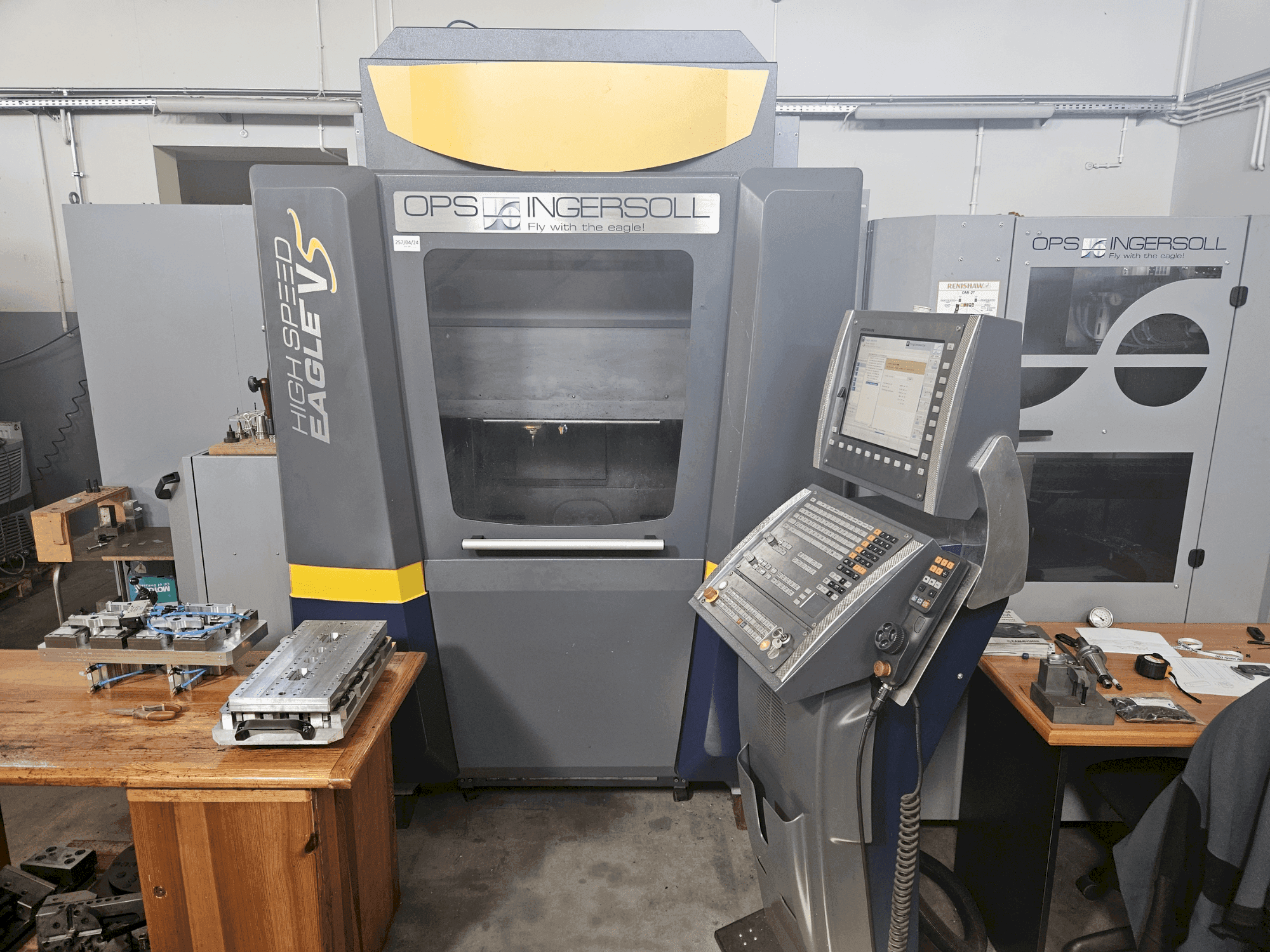

This 5-axis OPS INGERSOLL Eagle V5 was manufactured in 2017, featuring a robust vertical machining center design. It boasts a high-speed Fisher HSK E40 spindle with speeds up to 42,000 rpm and a 32-tool magazine. The machine includes a 4/5-axis tilting rotary table, enhancing its versatility for complex machining tasks. Consider the opportunity to buy this OPS INGERSOLL Eagle V5 vertical machining center. Contact us for more information about this machine.

Overview

brand: OPS INGERSOLL
year: 2017
MODEL: HIGH SPEED Eagle V5
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - OPS INGERSOLL HIGH SPEED Eagle V5

General Data

Measurements width: 2020 mm
Measurements depth: 2800 mm
Measurements height: 2450 mm
Machine weight: 7200 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 640 HSCI

Main drive

Spindle speed range: 1–42000 1/MIN
Tool taper: Fisher HSK E40
Number of axis: 5

Movement

X-AXIS Movement: 550 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 500 kg

Table

Number of tslots: 5
Table load: 250 kg

Tools

Max tool diameter: 16 mm

Additional Information

Additional equipment

4/5-axis Tilting Rotary Table prepared for Pallet System
B-axis Tilting Range: −120° to +60°
C-axis Rotation: 360°
B-axis Speed: 25 rpm
C-axis Speed: 20 rpm
Keller Dust Extraction System
EROWA UPC Production Chuck Clamping System
Tool Length and Diameter Laser Measurement, Broken Tool Detection
Touch Probe (Renishaw)
Precision Pack III – 5-axis Thermal Compensation

Machine Benefits

Technical Machine Benefits

Spindle-to-table distance (min/max): 50–450 mm
Table design: fixed dimensions: 650 × 500 mm
T-slots: 5 × 14h12
Torque (s1/s6 - 60%): 5. 9 nm / 6. 7 nm
Tool magazine capacity: 32
Max. Workpiece size: Ø400 × 380 mm

Extra Information

ECOTEC Energy-saving Function Table Adapter for 4th and 5th Axes HR410 Wireless Remote Control EROWA UPC Basic Chuck with EROWA ITS100 Adapter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
