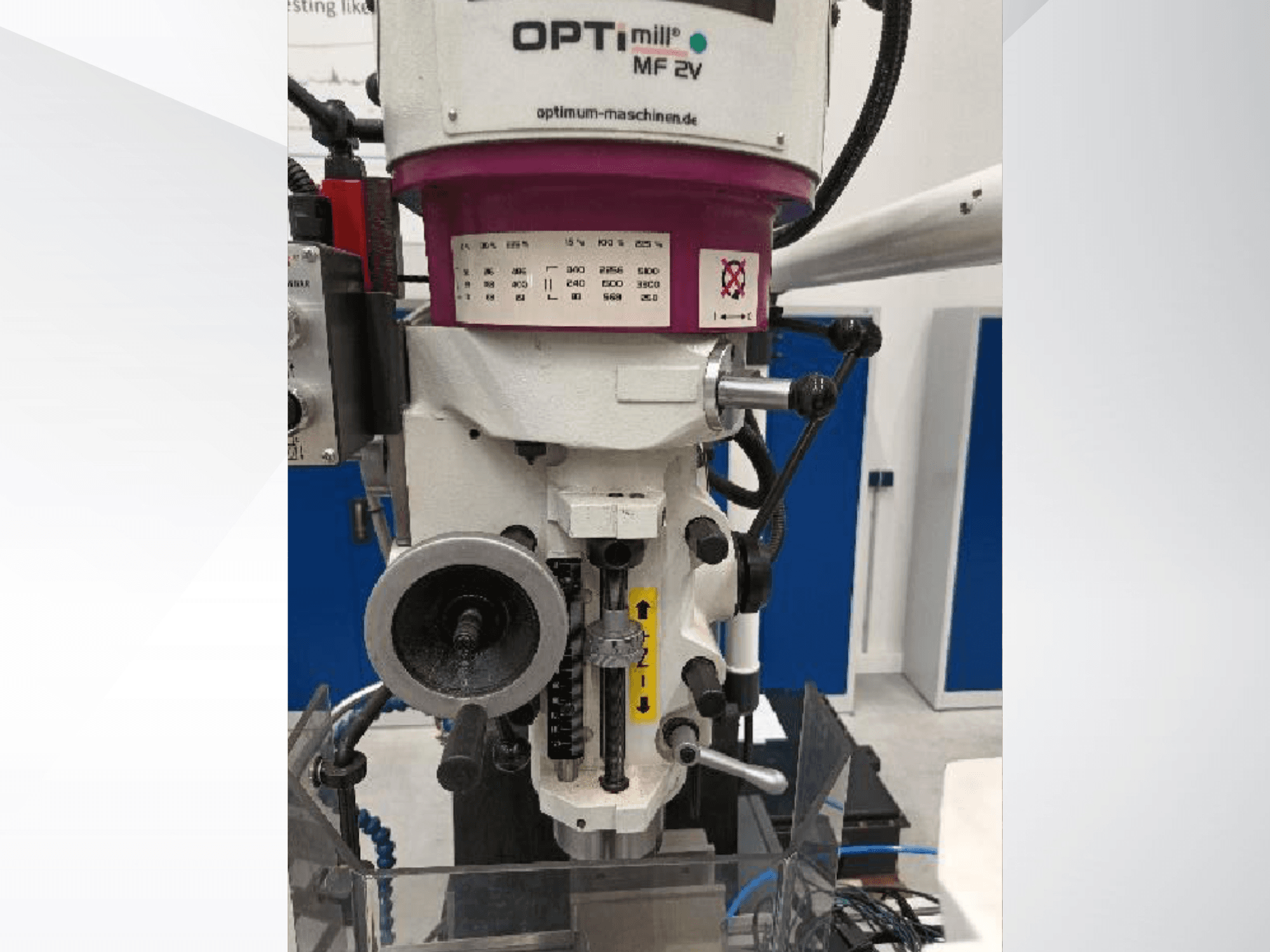

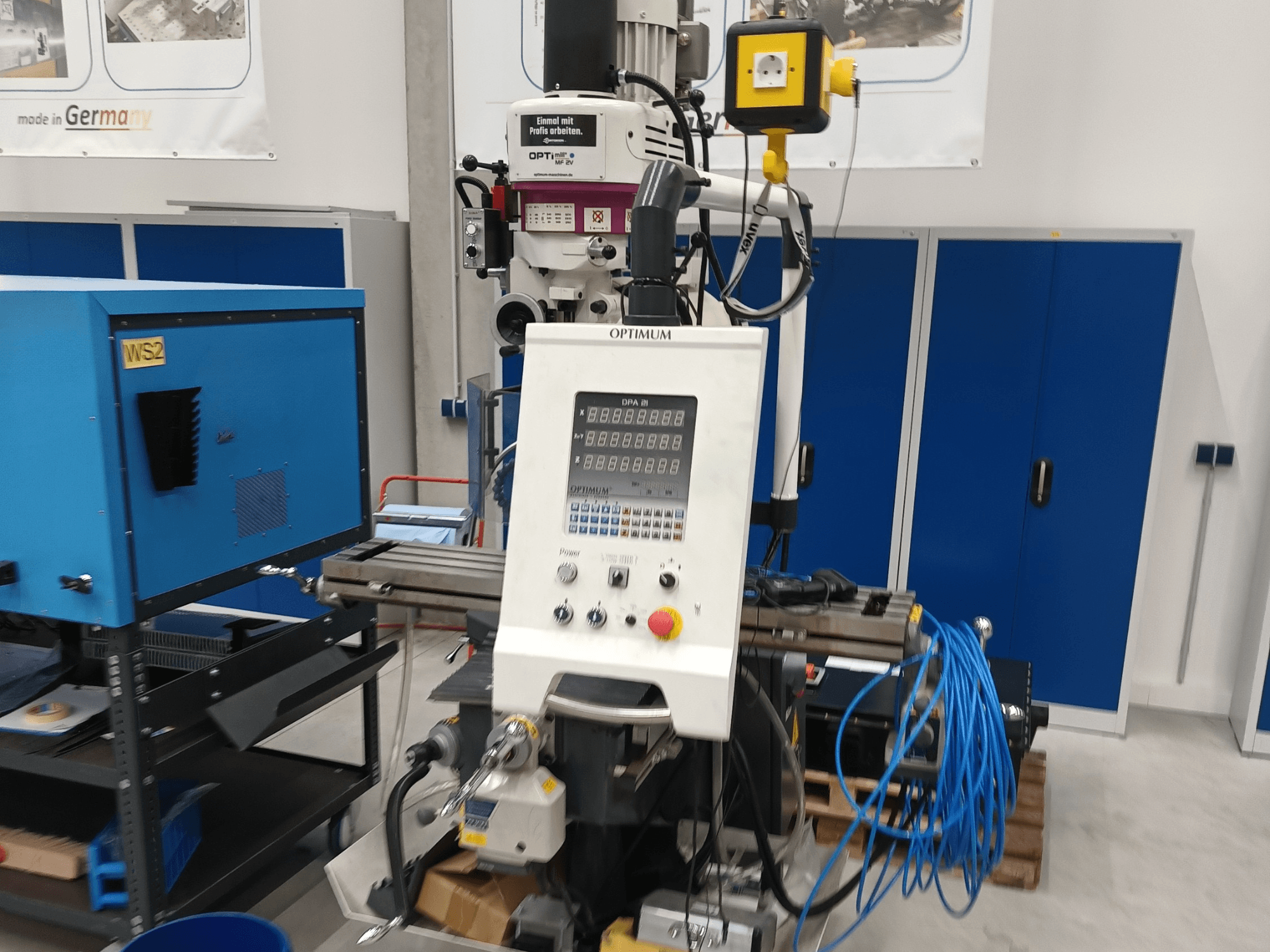

Optimum - OPTImill MF 2VDE-MIL-OPT-2017-00001

- Type: Manual multifunctional 3-axis drilling and milling machine

- Digital Readout: DPA 21

- Modifications / Upgrades: Drive Upgrade

- Total Connected Load: Approx. 1.5 kW (may be higher due to modifications)

- Electrical Voltage: 400 V

- Phases: 3 Ph

- Current Type: ~

- Mains Frequency: 50 Hz

- Cutter Head Size Max.: 76 mm

- End Mill Size Max.: 18 mm

- Vertical Spindle Throat/Reach: 233 - 533 mm

- Vertical Spindle Tool Holder: ISO 40 DIN 2080

- Vertical Spindle Speed Range: 10 - 5100 rpm

- Vertical Spindle Number of Speed Ranges: 6

- Vertical Spindle Speed Control: Electronically adjustable

- Horizontal Milling Table Length: 1244 mm

- Horizontal Milling Table Width: 230 mm

- Distance Vertical Spindle to Horizontal Table Min.: 57 mm

- Distance Vertical Spindle to Horizontal Table Max.: 463 mm

- Horizontal Table T-Slot Size: 16 mm

- Horizontal Table T-Slot Number: 3

- Horizontal Table T-Slot Distance: 63 mm

- Horizontal Table Max. Load Capacity: 230 kg

- Number of Coolant Pumps: 800 mm automatic

- Vertical Spindle Continuous Duty S1 Drive Motor Power: 1.5 kW

- X-Axis Travel Automatic: 24 mm

- Y-Axis Travel Automatic: 20 mm

- Spindle Speeds: Stepless speed control

- Drilling/Milling Head Inclination: Tiltable ± 45°

- Reach / Throat: 215 - 533 mm MF 2Vario DPA

- Drilling Depth Stop: Adjustable with millimeter scale, readable from the front

- Protective Shield: Height-adjustable, large dimensions

- X-Axis: Motorized table feed, stepless speed control, rapid traverse, right/left rotation, cross table
