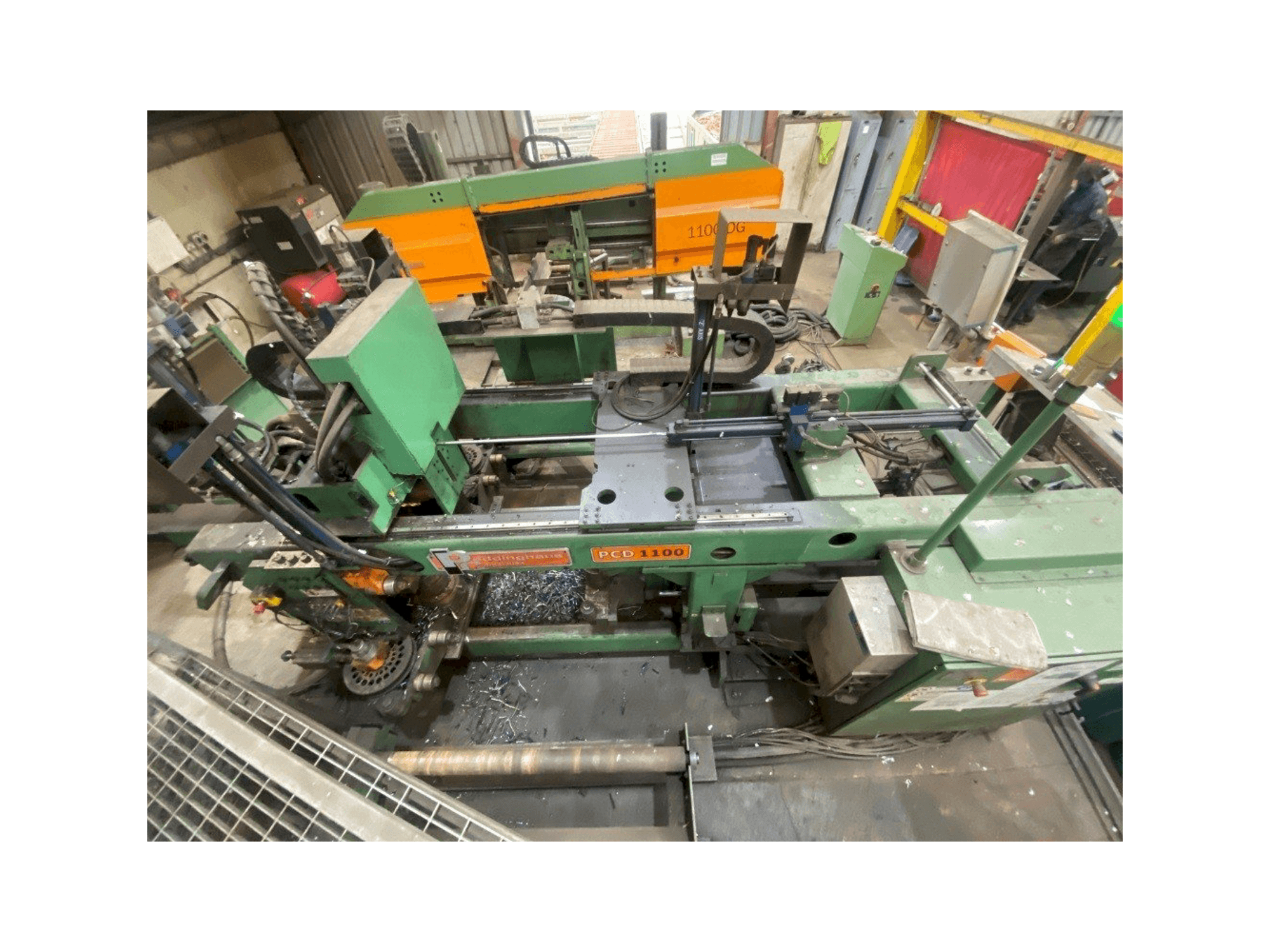

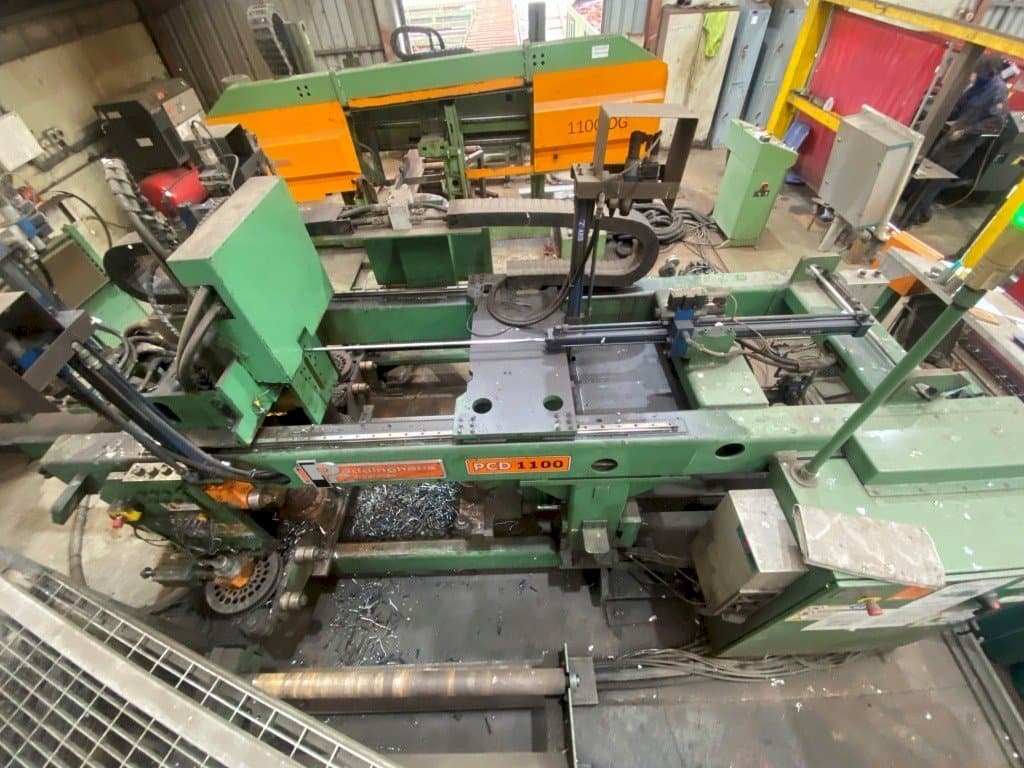

Peddinghaus PCD 1100 Drilling machine

This Peddinghaus PCD 1100 Drilling machine was built in 2007 in the United States and has 18000 hours. It is equipped with a Siemens Sinumerik 840D control unit and has 4 axis. The machine has a spindle speed of 850 rpm.

Overview

brand: Peddinghaus
year: 2007
MODEL: PCD 1100
production hours: 18000
application type: Drilling
Location: Ireland
machine type: Drilling machines
availability: Sold
control unit brand: Siemens
GINDUMAC ID: IE-DRI-PED-2007-00001

Technical Information

General Data

Machine weight: 4800 kg

Control Unit

Brand: Siemens
Model: Sinumerik 840D
CNC main language: English
CNC language customizable: Yes

Main drive

Spindle speed range: 850 1/MIN
Spindle motor power: 10 kW (13.5HP)

Workpiece

Workpiece x: 1100 mm
Workpiece z: 460 mm
Workpiece weight: 8165 kg

Tools

Max tool diameter: 26 mm

Media

Main electronic connection: 400 V
Internal cooling: Yes

Additional Information

Machine history

Material type: Structural steel
material thickness: 6 mm
End product: Structural steel
Industries: Structural steel industry

Machine Benefits

Technical Machine Benefits:
- - 3 spindle drilling - no turning of parts
- - Powerful machine
- - Drill only - saw & conveyors not included
- - Max profile width: 1,100 mm (43"), max profile height: 460 mm (18")
- - Max part weight: 8165 kg
- - Min profile width: 76 mm (3"), min profile height: 76 mm (3")
- - X axis feedrate: 40m/min
- - Min thickness: 3 mm (1/8")
- - Min part length: 1,575 mm(62")
- - Max part weight/m: 433 kg/m
Qualitative Machine Benefits:
- - Low working hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
