- ➤ Used PEDRAZZOLI Bend Master 42 MRV IMS CNC | Bending

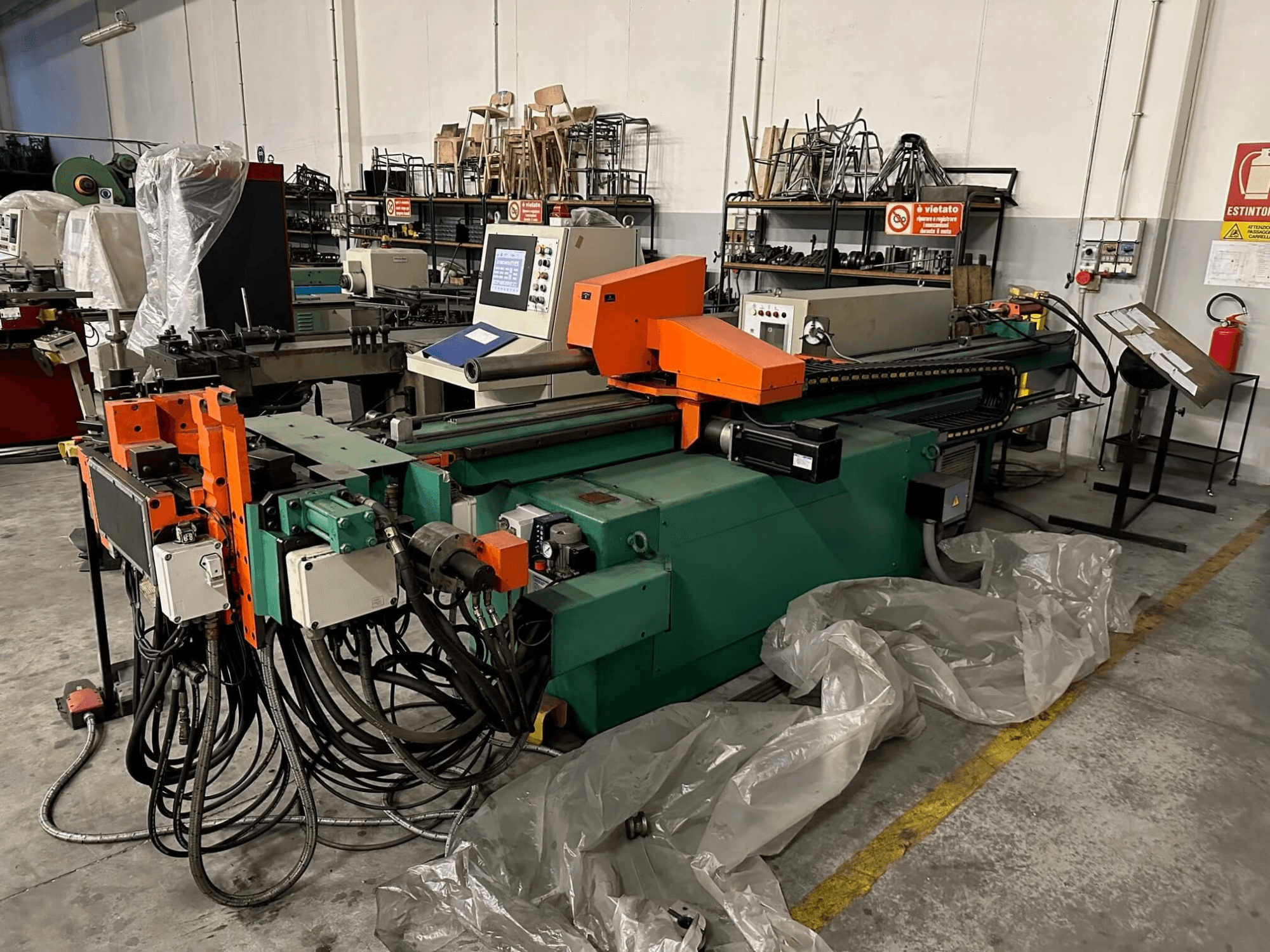

This 6-axis PEDRAZZOLI Bend Master 42 MRV IMS CNC was manufactured in 2001. It features a max tube diameter of 42 mm, a min tube diameter of 6 mm, and a max bending radius of 270 mm. With a power of 22 kW and a bending length up to 3000 mm, consider the opportunity to buy this PEDRAZZOLI Bend Master 42 MRV IMS CNC roll bending machine. Contact us for more information about this machine.
Overview
- brand: PEDRAZZOLI
- year: 2001
- MODEL: Bend Master 42 MRV IMS CNC
- application type: Bending
- Location: Latvia
- machine type: Roll Bending Machine
Technical Information - PEDRAZZOLI Bend Master 42 MRV IMS CNC
Dimensions
- Machine Height: 1600 mm
- Machine Length: 4700 mm
- Machine Weight: 3750 kg
Movement
- Number of Axes: 6
Technical Specification
- Bending Length: 3000 mm
Additional Information
Max. tube diameter: 42 mm
Min. tube diameter: 6 mm
Max. wall thickness: 2.5 mm
Max. bending radius: 270 mm
Min. bending radius: 25 mm
3D bending speed: 360 mm/min
Power: 22 kW
Width: 1300 mm
Additional equipment
Matrices supplied:
Diameter 30 RM 50
Diameter 35 RM 60
Diameter 20 RM 76
Diameter 40 RM 75
Diameter 25 RM 45
Diameter 20 RM 45
Tube 20 x 20 RM 95
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
