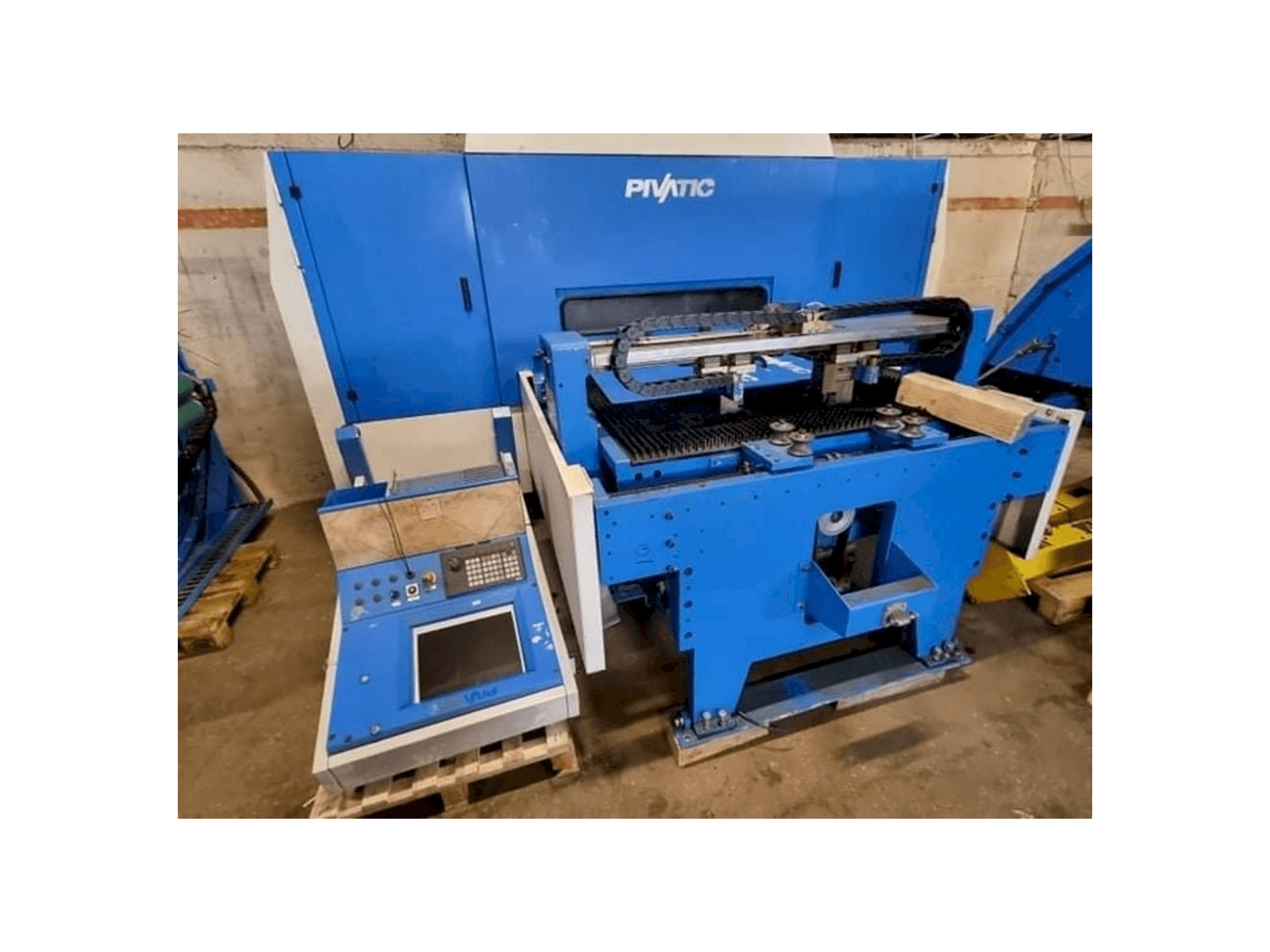

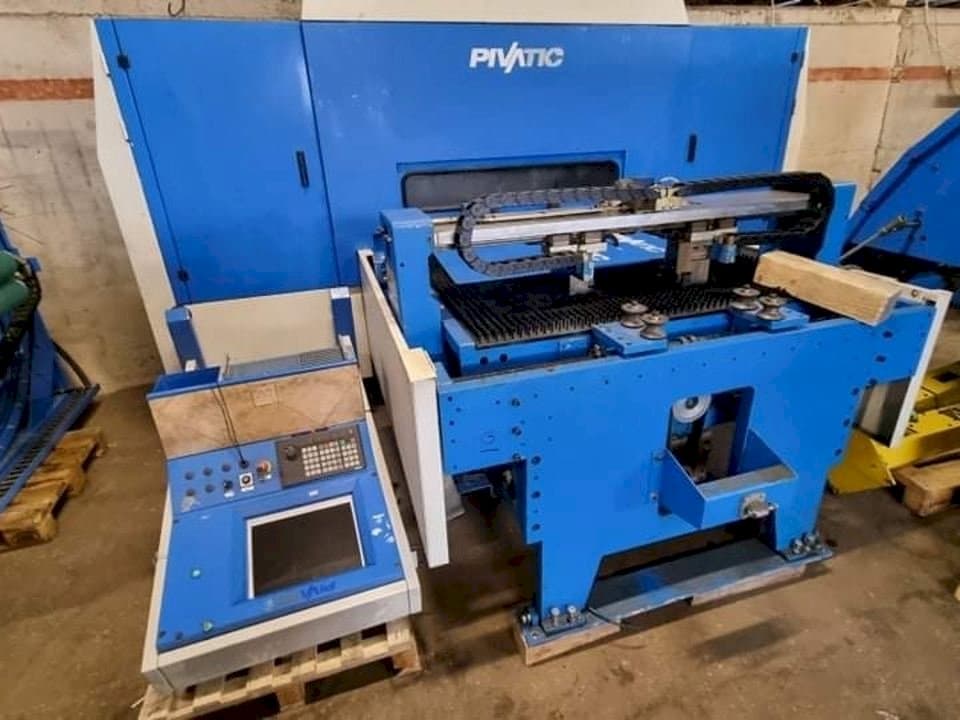

Pivatic PCC125 punching centre for coils

This Pivatic PCC125 punching centre for coils was manufactured in the year 2006 and has 49000 production hours. It is equipped with a Siemens Sinumerik 840 D control unit. The machine has a punching force of 400 kN.

Overview

brand: Pivatic
year: 2006
MODEL: PCC125
production hours: 49000
application type: Punching
Location: Estonia
machine type: CNC Punch Press
control unit brand: SIEMENS

Technical Information - Pivatic PCC125

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840 D

Dimensions

Machine Weight: 43450 kg

Technical Specification

Max. Sheet Thickness: 2 mm
Punching Force: 400 Kn

Additional Information

Machine Benefits

Qualitative Machine Benefits

Covered hydraulic power pack equipped either with an air cooler or with a water cooler connected to the cooling water circuit of the factory. -designed acc. To demands of the complete line. -mainly bosch-rexroth valves and a low noise level pump are used.
Pneumatic system -hoses between the connection point, valves and cylinders are delivered. Customer to supply and connect the service unit and connection. "
Electrical cabinet is placed next to the power pack with cooler
Cables between the line components are in covered aluminium channels. Customer to supply and connect the mains.
Electrical components are installed on assembling plates leaving space for modifications.
The electrical components are mainly from siemens, omron and telemecanique
Siemens sinumerik 840 d numerical control and integrated plc. ,step 7 programming language
The sinumerik controller is installed in a separate control cabin. All texts available for the operator are in english
-complete pipe lines and hoses between the line components and the power pack covered with aluminium covers.
User manuals, instructions and drawings ,multimedia user manual, maintenance instructions, electrical, pneumatic and hydraulic drawings and bills of material -delivered in english on a cd disc

Technical Machine Benefits

Tank volume: 400 litres
The motor power of the cooler 1,5 kw, the flow of the oil pump of the cooler 100 l/min.

Machine History

Material thickness

2 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
