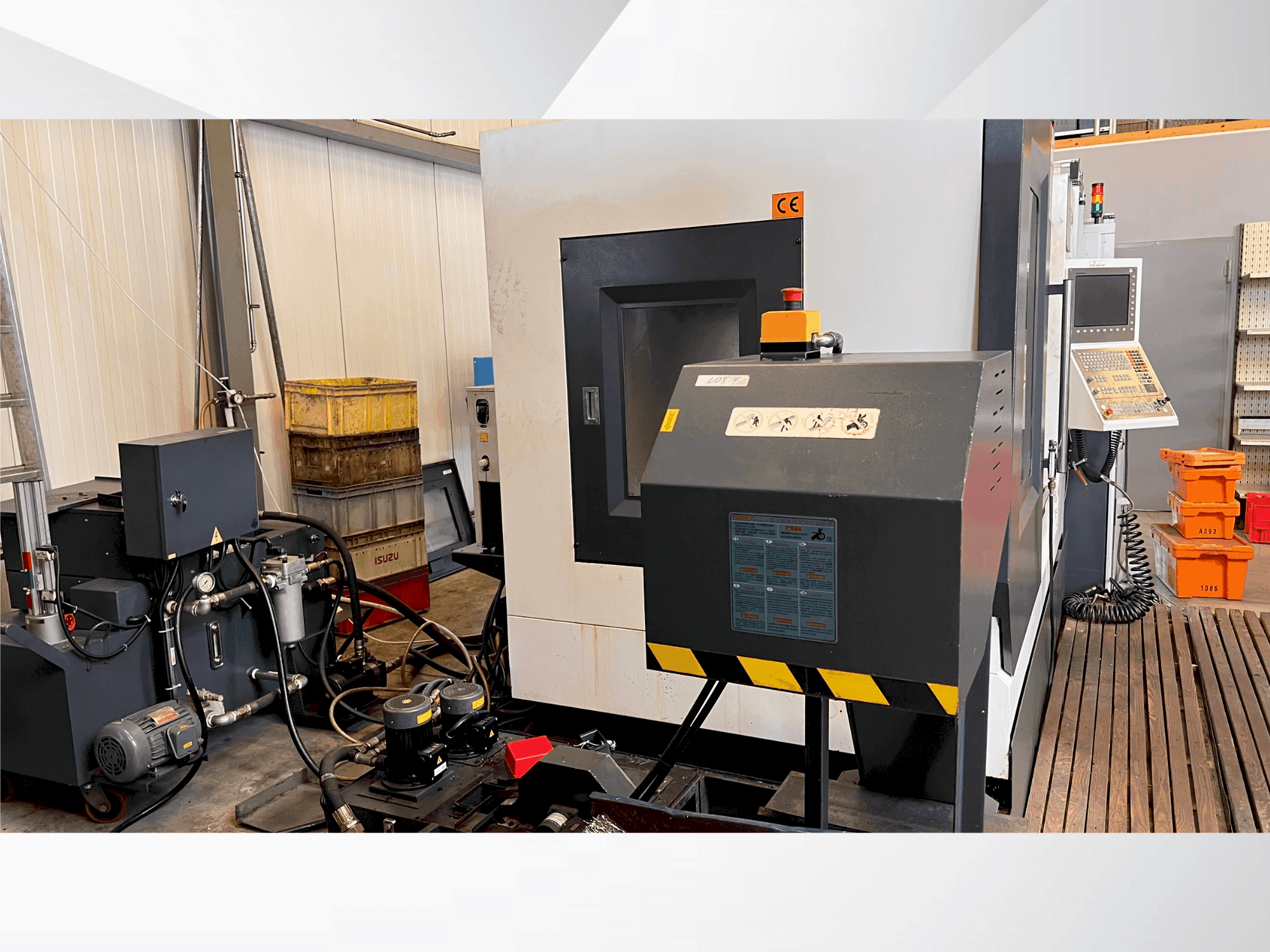

Front view of POSmill C 1050  machine

POSmill - C 1050DE-MIL-POS-2014-00003

57,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis POSmill C 1050 vertical machining center was manufactured in 2014. It features a Heidenhain 530i control system, Yaskawa Motoman robot, and an internal coolant supply at 20 bar with a belt filter system. The machine offers a working area of 1150 x 560 mm and a tool holder ISO 40 with a speed range up to 10,000 rpm. A great opportunity to buy this POSmill C 1050 vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

  • brand: POSmill
  • year: 2014
  • MODEL: C 1050
  • production hours: 27000
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - POSmill C 1050

General Data

  • Machine weight: 7800 kg

Control Unit

  • Brand: Heidenhain
  • Model: 530i

Main drive

  • Spindle speed range: 10000 rpm 1/MIN
  • Tool taper: ISO 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1050 MM
  • Y-AXIS Movement: 530 MM
  • Z-AXIS Movement: 630 MM

    Additional Equipment

    • - Yaskawa Motoman robot
    • - Active control cabinet cooler (air-cooled)
    • - Electronic handwheel
    • - Internal coolant supply 20 bar with belt filter system
    • - Workpiece measurement system 25.10-HDR
    • - Robot load capacity: 12 kg / Robot weight: 130 kg / Robot degree of freedom: 6 / Robot repeatability: ±0.08 mm
    • - Robot working range main axes:S (rotation): -170° to +170°/ L (lower arm): -90° to +150° / U (upper arm): -175° to +240°
    • - Robot working range manual axes:r (hand roller): -180° to +180°; 22 Nm, 0.65 kgm² / b (wrist rotation): -135° to +135°; 22 Nm, 0.65 kgm² / t (hand rotation): -360° to +360°; 9.8 Nm, 0.17 kgm²

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - T-slot number: 5
        • - T-slot size: 18 x 100 mm
        • - Extensive automation with yaskawa motoman robot
        • - Internal coolant supply with high pressure (20 bar)
        • - Workpiece measurement system for precision
        • - Rated power: 25 kva / operating voltage: 3 – 400 v, 50 hz / feed rate range: 1-10,000 mm/min
        • - Max. Tool diameter: 90 mm / max. Tool weight: 7 kg / max. Tool length: 250 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
