PRECITECH - Nanoform XDE-TUR-PRE-2013-00001

Name: PRECITECH Nanoform X
Brand: PRECITECH
SKU: DE-TUR-PRE-2013-00001
Price: 255000 EUR
Availability: InStock

255,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used PRECITECH Nanoform X For Sale | gindumac.com

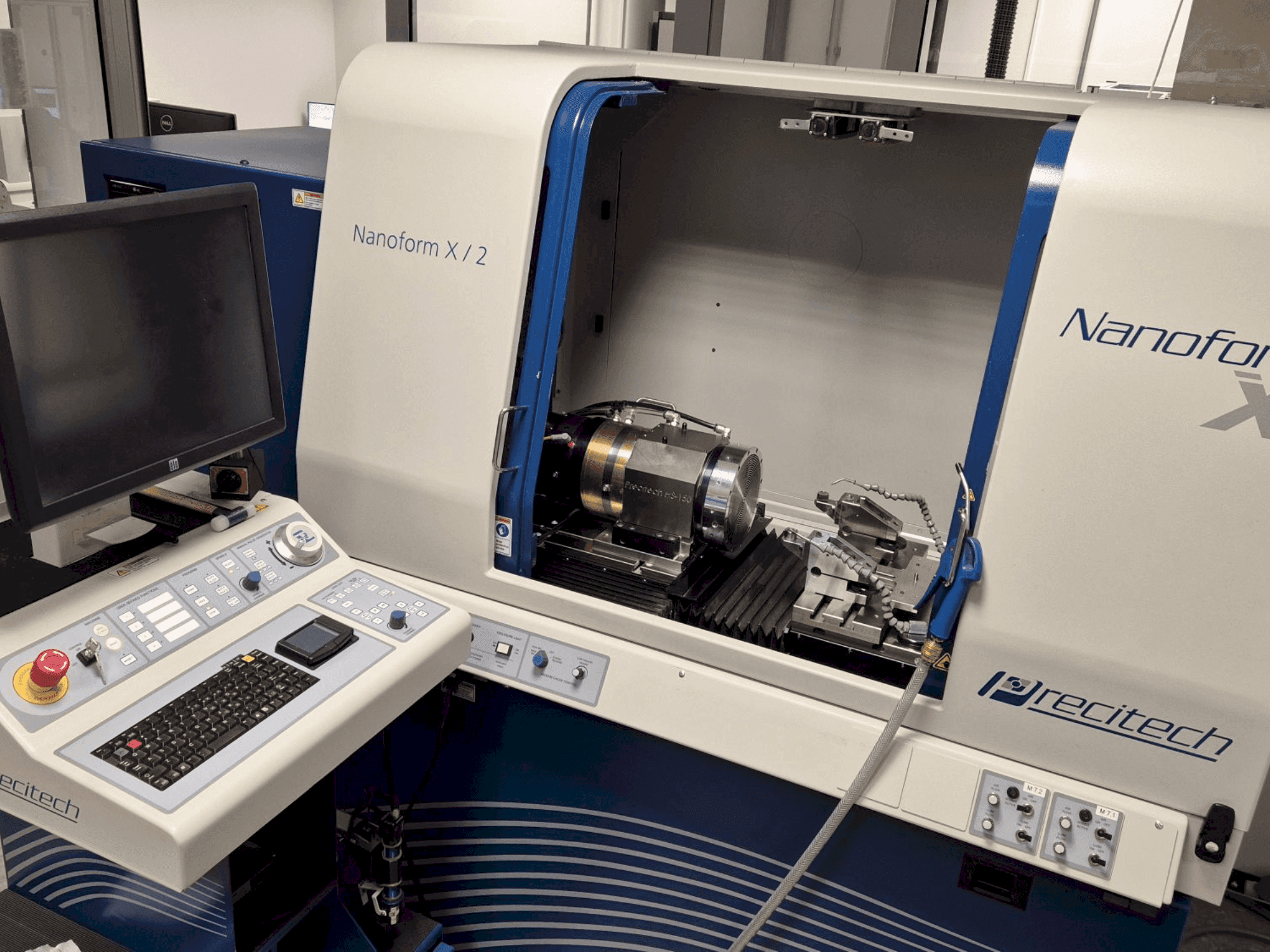

This 4-axis PRECITECH Nanoform X was manufactured in 2013. It features a high-performance air-bearing spindle, integral brushless DC motor, and a sealed granite base for stability. The machine offers a swing capacity up to 440 mm dia., with a maximum feedrate of 4,000 mm/min. Ideal for ultra-precision CNC contouring, it includes UPx™ Control System and optional Adaptive Control Technology. Contact us for more information about this machine.

Overview

brand: PRECITECH
year: 2013
MODEL: Nanoform X
production hours: 95510
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - PRECITECH Nanoform X

Dimensions

Machine Depth: 2152 mm
Machine Height: 2301 mm

Movement

Number of Axes: 4

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Machine type: ultra-precision four axes cnc contouring machine
Swing capacity: max swing 440 mm diameter with 100 mm riser block (250 mm dia. Standard swing)
Machine base: sealed natural granite base provides long-term machine tool stability
Vibration isolation: fea optimized dual sub-frames and integral self-leveling tmc maxdamp® isolators
Linear hydrostatic slideways: x and z travel: 220 mm; maximum feedrate: 4000 mm/min
Motion accuracy: axial/radial ≤ 15 nm
Tabletop size: 330 mm
Maximum table speed: 10 rpm continuous / 50 rpm intermittent
Radial stiffness: 225 n/µm

Extra Information

Control Unit Control System: UPx™ Control System with optional Adaptive Control Technology Operating System: QNX real-time operating system File Transfer/Storage: USB, CD, Ethernet, On-board data storage backup Media Power: 208 ±10% or 230 ±10% VAC - 3.0 KVA 1 phase - 50/60 Hz Air Supply: 12 SCFM @ 100 PSIG

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
