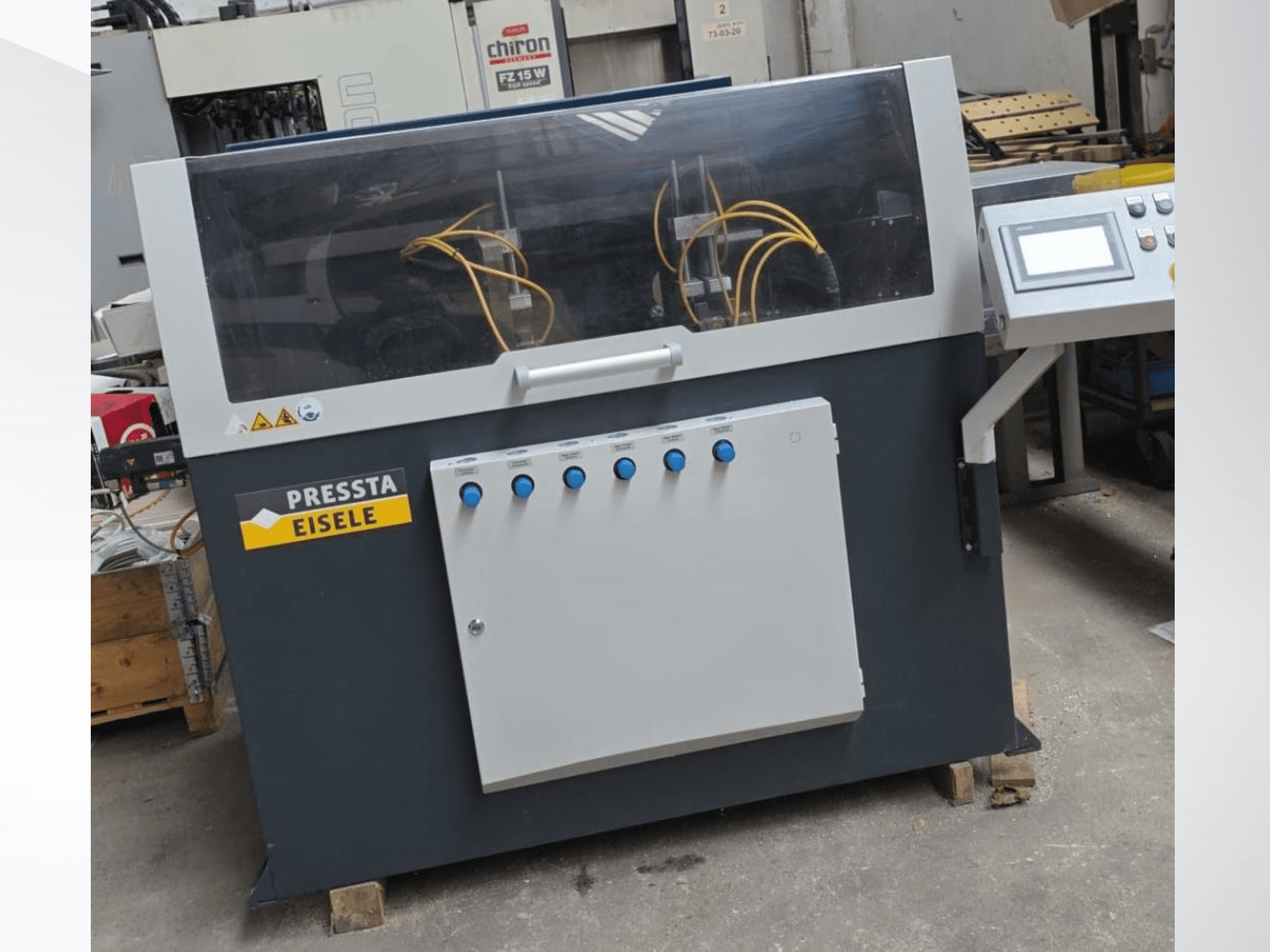

Circular Metal Saw manufactured in 2023. This PRESSTA EISELE PROFILMA 502 features a powerful 7.5 kW saw drive with a maximum saw blade speed of 2,850 rpm. It offers a cutting capacity of 270 x 150 mm and a maximum profile width of 270 mm. The machine includes a Siemens S7 control system with a touch panel for enhanced operation. If you are looking to get high-quality cutting capabilities, consider the PRESSTA EISELE PROFILMA 502 machine we have for sale. Contact us for further details.
Overview
- brand: PRESSTA EISELE
- year: 2023
- MODEL: PROFILMA 502
- production hours: 1809
- application type: Sawing
- Location: Germany
- machine type: Circular Metal Saw
- control unit brand: SIEMENS
Technical Information - PRESSTA EISELE PROFILMA 502
Control Unit
- Control Brand: SIEMENS
- Control Model: S7 with SIMATIC HMI Touch Panel
Dimensions
- Machine Height: 1800 mm
- Machine Length: 2400 mm
- Machine Weight: 1650 kg
- Machine Width: 2000 mm
Additional Information
Technical Specifications
Saw Drive Power: 7.5 kW (7,500 W)
Duty Cycle: S6
Saw Blade Speed: Max. 2,850 rpm
Power Supply: 400 V, 3-phase, 50 Hz
Current Consumption: 16 A
Operating Pressure: 6–8 bar
Cutting Capacity
Maximum Cutting Width: 270 mm
Maximum Cutting Height: 150 mm
Maximum Cutting Diameter: 270 mm
Maximum Round Material Capacity (90°): 190 mm
Maximum Profile Width: 270 mm
Section Length Range: 3–4,000 mm
Minimum Remnant Length: From 75 mm (depending on profile)
Saw Blade
Saw Blade Diameter: Ø550 mm
Saw Blade Bore: Ø40 mm
Control System
PLC: Siemens S7
HMI: SIMATIC Touch Panel
Controller: CPU 315
Safety System: Flexisoft
Functions:
Piece counter
Batch multiplier for bundle processing
Cycle time display
Chain dimension management
Fault diagnostics
Connectivity
Remote Access: IXON router with VPN connection
Material Feed System
Drive Type: Electronic servo drive
Feed Stroke: 800 mm
Drive Mechanism: Ball screw spindle
Maximum Profile Length: 4,000 mm
Feed Support: Lift/lower roller support
Saw Feed
Feed Type: Motorized
Feed Adjustment: Stepless
Cutting Direction: Bottom to top
Clamping System
Type: Pneumatic horizontal and vertical clamping
Clamping Position: Feed and discharge sides
Pressure Control: 6 individual pressure regulators
Lubrication
Lubrication Type: Intermittent spray system
Reservoir Capacity: 1 L
Features:
Level monitoring
Automatic shut-off
Safety Features
Complete safety enclosure
Sound-insulated machine frame
Automatic machine shut-off at end of material stock
Cutting gap extension to protect cut surfaces
Material Support
Infeed Conveyor: 740 mm roller conveyor with intrusion guard
Outfeed Table: 450 mm Pertinax support table with intrusion guard
Extraction
Extraction Ports: 2 × Ø100 mm
Chip Extraction Unit
Model: MG 3 (Italyvacuum Vortex 58 FT)
Year of Manufacture: 2022
Motor Power: 3 kW
Voltage: 400 V / 3~ (±5%)
Current Consumption: 7.2 A
Weight: 130 kg
Features:
Integrated cyclonic separation system
Contactless antistatic system
Additional Information
Machine can be inspected under power.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
