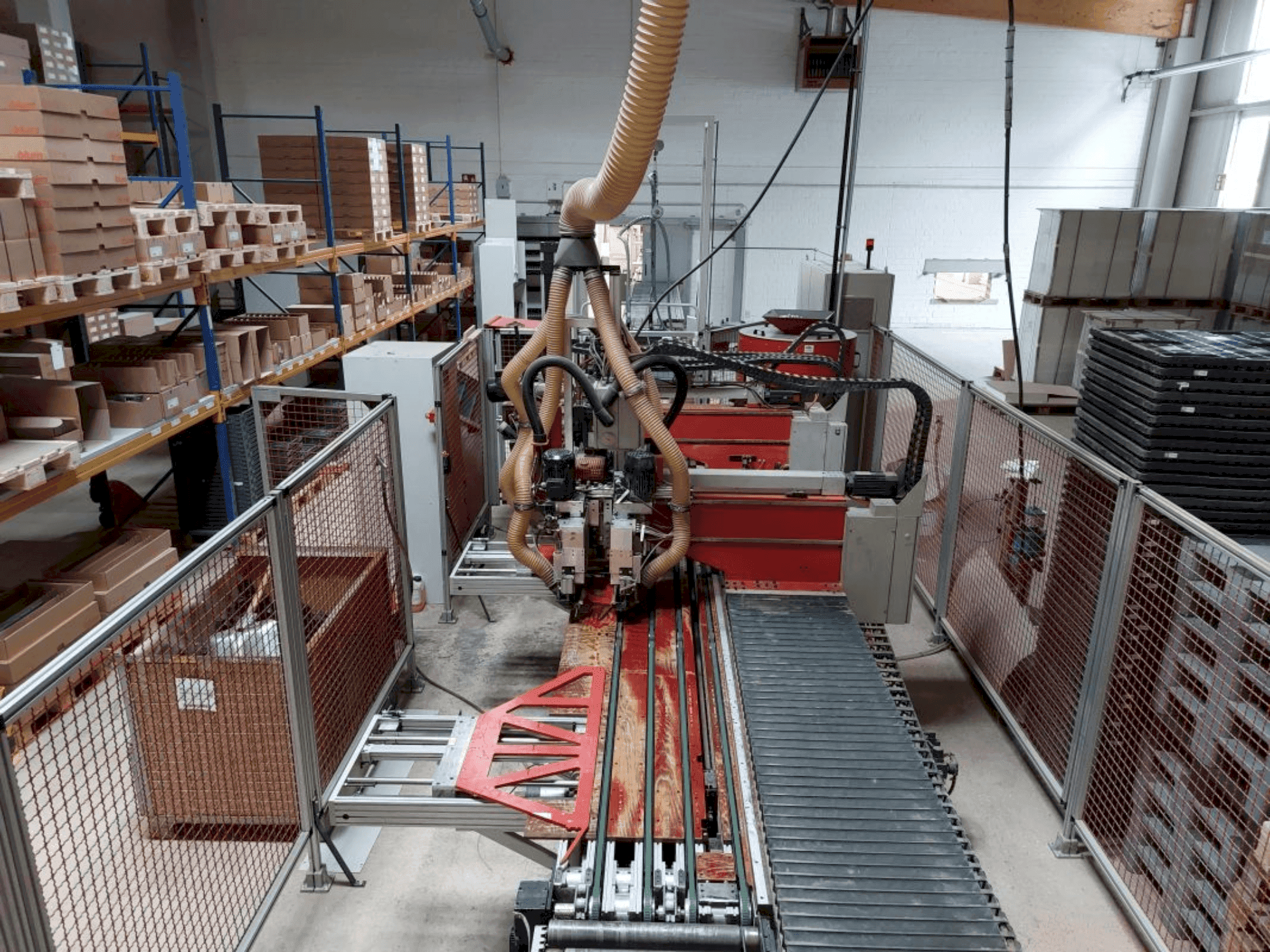

Priess & Horstmann - BMA-DLS-CNCDE-OTH-PRI-2000-00001

Additional Equipment

• - Paint Finish: Machine and control cabinet: Pebble gray (AAL 7032) / Supports and protective grilles: Flame red (AAL 3000) / Motors and extraction hoods: Matte black (RAL 9005)
• - Paint Finish: Machine and control cabinet: Pebble gray (AAL 7032)/ Supports and protective grilles: Flame red (AAL 3000)/ Motors and extraction hoods: Matte black (RAL 9005)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Length: 250 to 2500 mm / width: 130 to 700 mm / thickness: 16 to 19 mm
  • - Electrical connection: 400v +/- 10%, 50 hz, approx. 18 kw
  • - Maintenance unit: operating pressure: 6-7 bar / supply line: min. 1" / extraction: min. 32 m/sec air velocity, required negative pressure 2200 pa, capacity 40 m³/min
  • - Working height: 930 +/- 20 mm
  • - The part width to length ratio should not exceed 1:1. Parts narrower than 200 mm may require monitoring during transport for smooth operation. Sloped cabinet shelves are manually inserted, and a second longitudinal stop is used at a 300 mm width. The smallest shelf width is 268 mm, and the smallest body height is 298 mm.
