Prima Power Platino 1530
Prima Power - Platino 1530
2001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Prima Power Platino 1530 Laser Cutting Machine

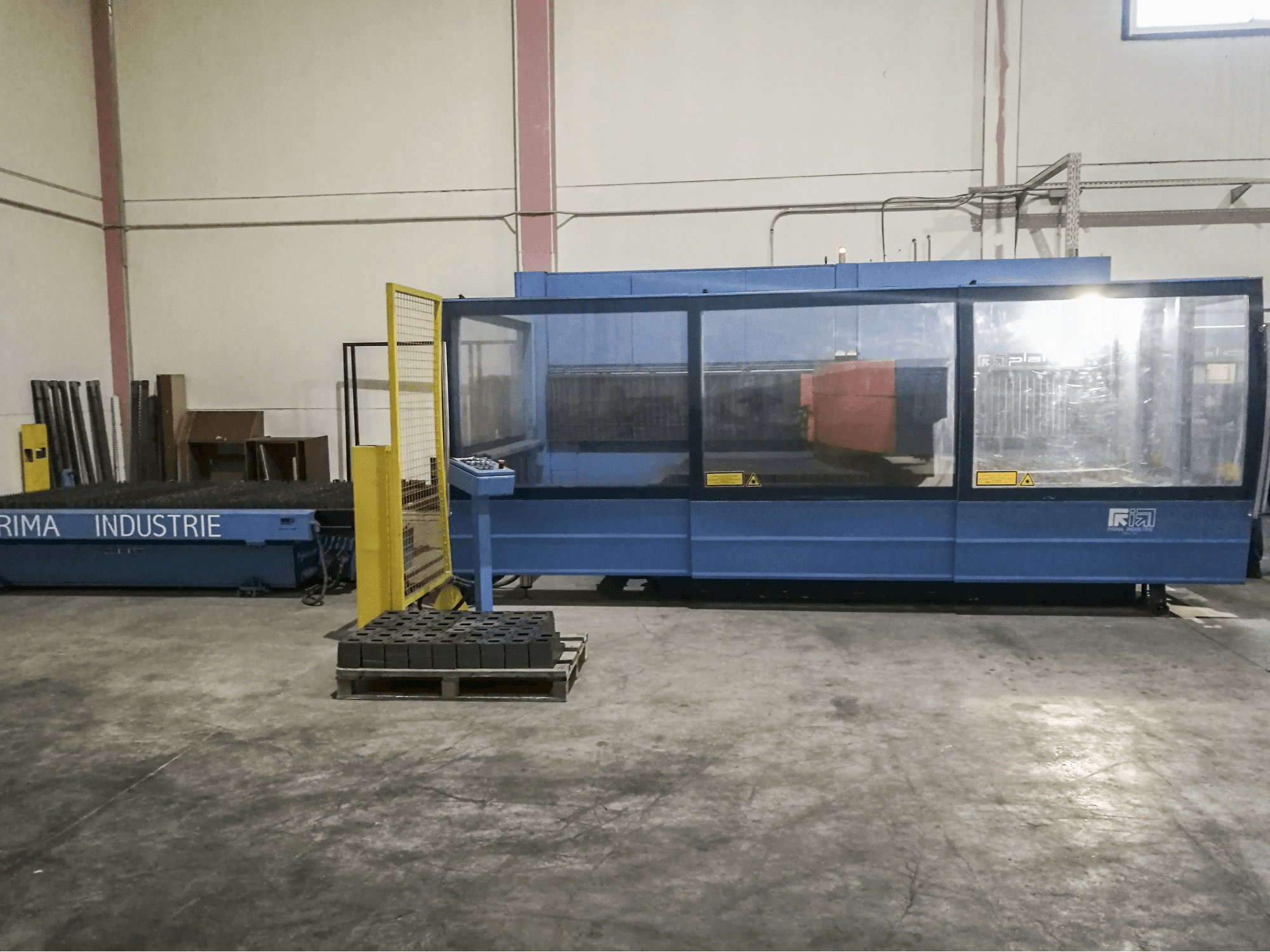

This Italian-made Laser Cutting Machine Prima Power Platino 1530 has been operative for 32681 production hours. With a Primach 9000-L Control unit and a laser power of 3 kW, the machine comes in very good working conditions as it was frequently inspected by Prima Power.
Overview
- brand: Prima Power
- year: 2001
- MODEL: Platino 1530
- production hours: 32681
- application type: Laser Cutting
- Location: Spain
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: Primach
- GINDUMAC ID: ES-LAS-PRI-2001-00001
Technical Information
General Data
- Measurements width: 6200 mm
- Measurements depth: 3800 mm
- Measurements height: 2500 mm
- Machine weight: 13000 kg
Control Unit
- Brand: Primach
- Model: 9000-L
Main drive
- Laserpower: 3 kW
- Laser type: CO2
- Laser brand: PLS 3000
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Rapid traverse: 50 m/min
- Y-AXIS Movement: 1500 mm
- Y-AXIS Rapid traverse: 50 m/min
- Z-AXIS Movement: 150 mm
- Z-AXIS Rapid traverse: 40 m/min
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
- Workpiece z: 15 mm
Max Material thickness
- Steel: 15 mm
- Stainless steel: 8 mm
Machine specific data
- Size of cutting head 1: 5"
- Size of cutting head 2: 7.5"
Media
- Main electronic connection: 400 V
- Power consumption: 63.3 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
