Prima Power - PSBBPL-PUN-PRI-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Prima Power PSBB Punching Machine

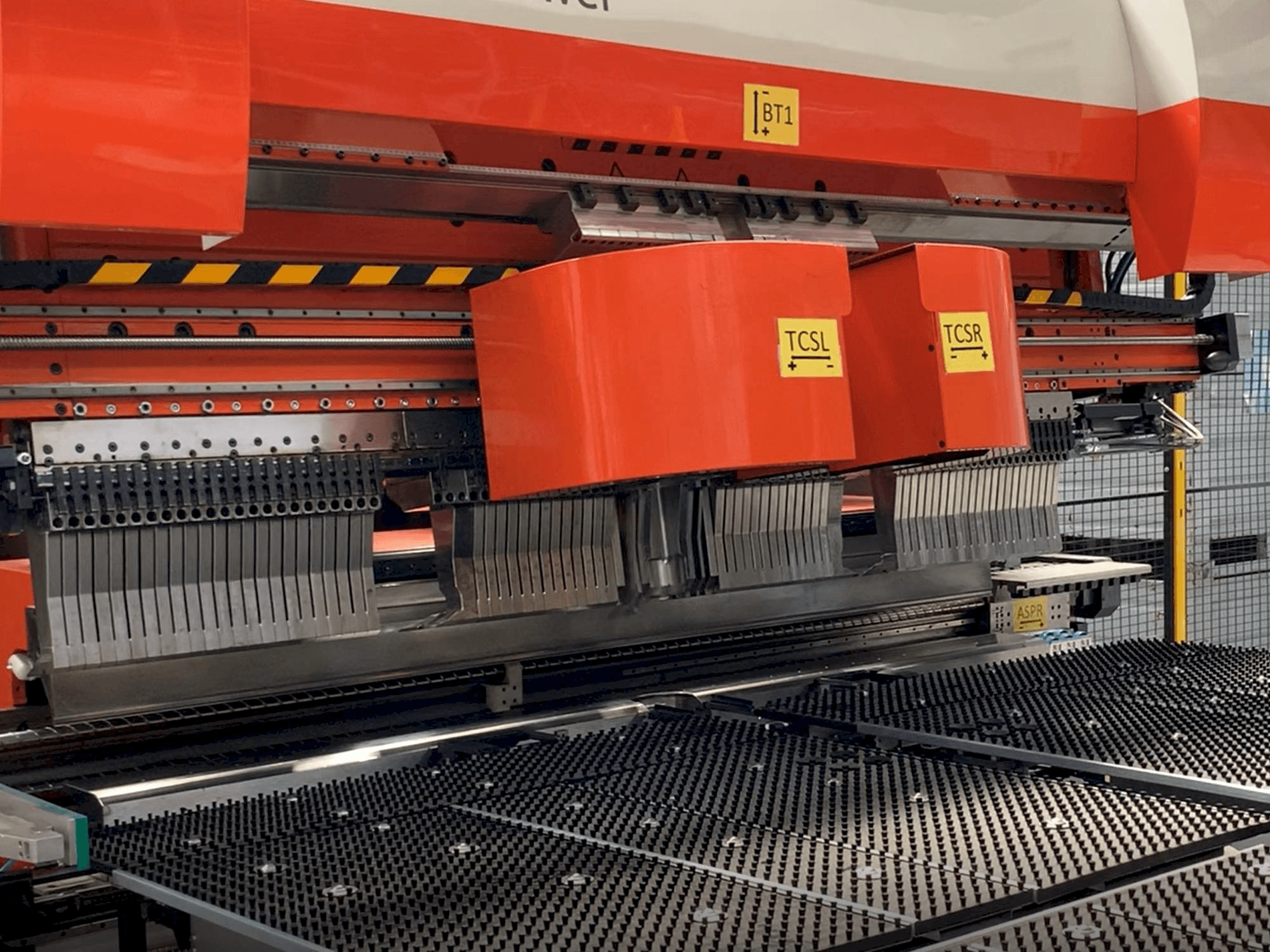

This Prima Power PSBB Punching Machine was manufactured in the year 2011. It has been working for only 7000 hours. This Punching, Shearing, Bending and Buffering system machine can operate with a punching force of 300 kN. It can works with a sheet size of 1500 x 3000 mm.
Overview
- brand: Prima Power
- year: 2011
- MODEL: PSBB
- production hours: 7000
- application type: Punching
- Location: Poland
- machine type: Punch-Laser Combination
- availability: Sold
Technical Information - Prima Power PSBB
Main drive
- Punching force: 300 kN
Additional Equipment
- - UBC Upper bridge clamp
- - Teleservice Router
- - A pair of ASP Bracket for 500 mm length SBL
- - Type S2= 1 piece of 500mm length
- - Type T2 AUT( 240 mm ) tool for closed profiles
- - CCC Control Cabinet Cooler
- - TUT Tilting Unloading Table
- - LBN Last Negative Bend
- - CLL for ATC Reversed Bending Sequence
- - AUT Additional Upper Tool
Additional Information
- Material type: Mild steel
- material thickness: 8 mm
- Technical Machine Benefits:
- - 1500 x 3000 mm sheet size
- - Up to nearly 400 tools in the turret including multiotools
- - Asp additional short blades, 2 programmable axes
- - Atc automatic tool change tcs version
- - Ebe4(fm) – servoelectric bending machine
- - Express bender ebe ( fm ) – for automatic bending parts
- - 2 pcs stacking wagon and safety door
- - Sheet turnover device for psr6
- - Psr6 / 2 picking and stacking robot & connection to eb
- - 2 pcs conveyer c1500/1
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
