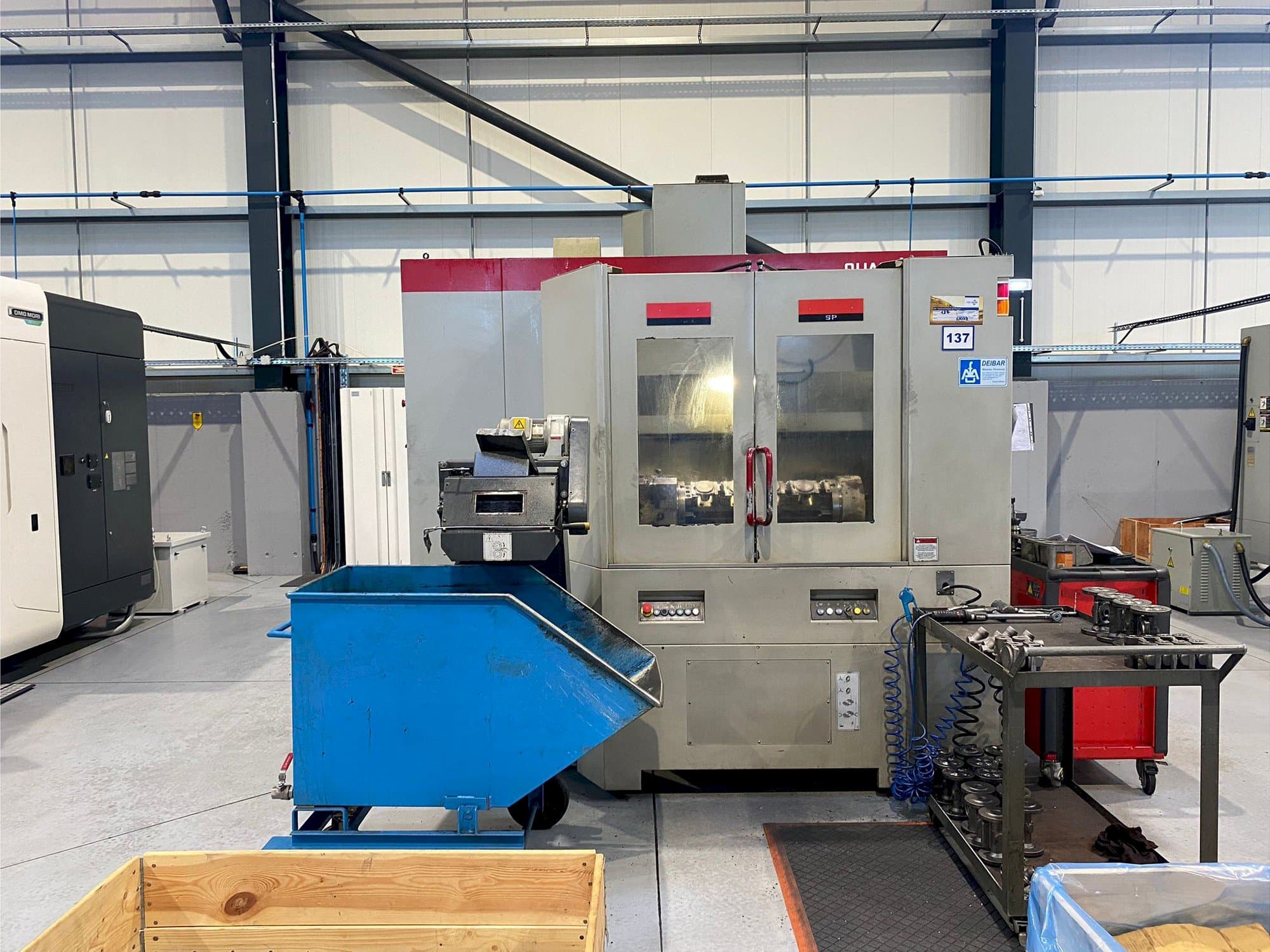

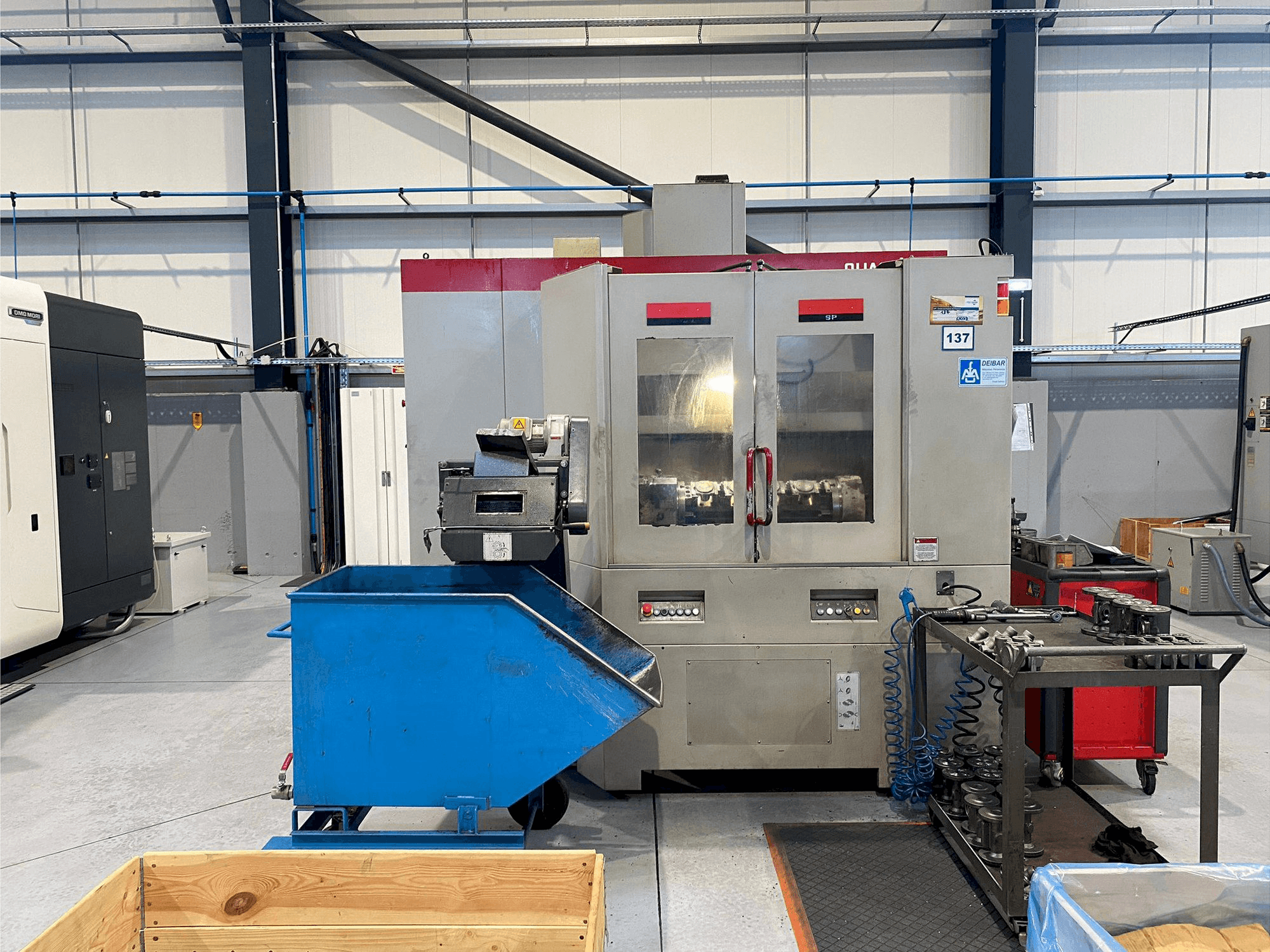

Front view of Quaser MK603SP/12B  machine

Quaser MK603SP/12B

Quaser - MK603SP/12B

2011

49,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Quaser MK603SP/12B Vertical Machining center was manufactured in the year 2011 in Taiwan. It is equipped with a Fanuc 18i-MB control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: Quaser
  • year: 2011
  • MODEL: MK603SP/12B
  • application type: Milling
  • Location: Portugal
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: PT-MIL-QUA-2011-00001

Technical Information

General Data

  • Measurements width: 4650 mm
  • Measurements depth: 2930 mm
  • Measurements height: 3300 mm
  • Machine weight: 2000 KG

Control Unit

  • Brand: FANUC
  • Model: 18i-MB.

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 30Kw
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1020 mm
  • X-AXIS Feed Force: 32000 mm/min
  • Y-AXIS Movement: 610 mm
  • Z-AXIS Movement: 600 mm

Table

  • Outer length: 1050 mm
  • Outer width: 550 mm
  • Table load: 300 kg

Tools

  • Slots in storage: 48
  • Max weight: 7 kg
  • Max tool diameter: 125 mm
  • Type of tool holder: BT-40.

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance from table surface to tree center:130-730 mm
      • - Tool selection method: random
      • - Tree motor : 30 kw
      • - Coolant pump motor:1. 4 + 3. 0 kw
      • - Feed motor: 3. 8 kw
      • - Hydraulic pump motor: 3. 7 kw
      • - Tank capacity internal cooling capacity 25 l/min a 20 bar, coolant tank capacity :200+380 l/min
      • - Work lamp.
      • - Tree cooling system.
      • - Automatic lubrication system.
    • Qualitative Machine Benefits:
      • - Internal refrigeration system at 20bar, equipped with powder
      • - Rigid thread.
      • - Belt-type chip extractor
      • - Service keys.
      • - Instruction manual.
      • - Leveling shoes.
      • - Optional accessories included : 2 dividing plates 4th axis ,2 hydraulic telescopes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
