Quaser UX-600

Photo Gallery

Quaser - UX-600CZ-MIL-QUA-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

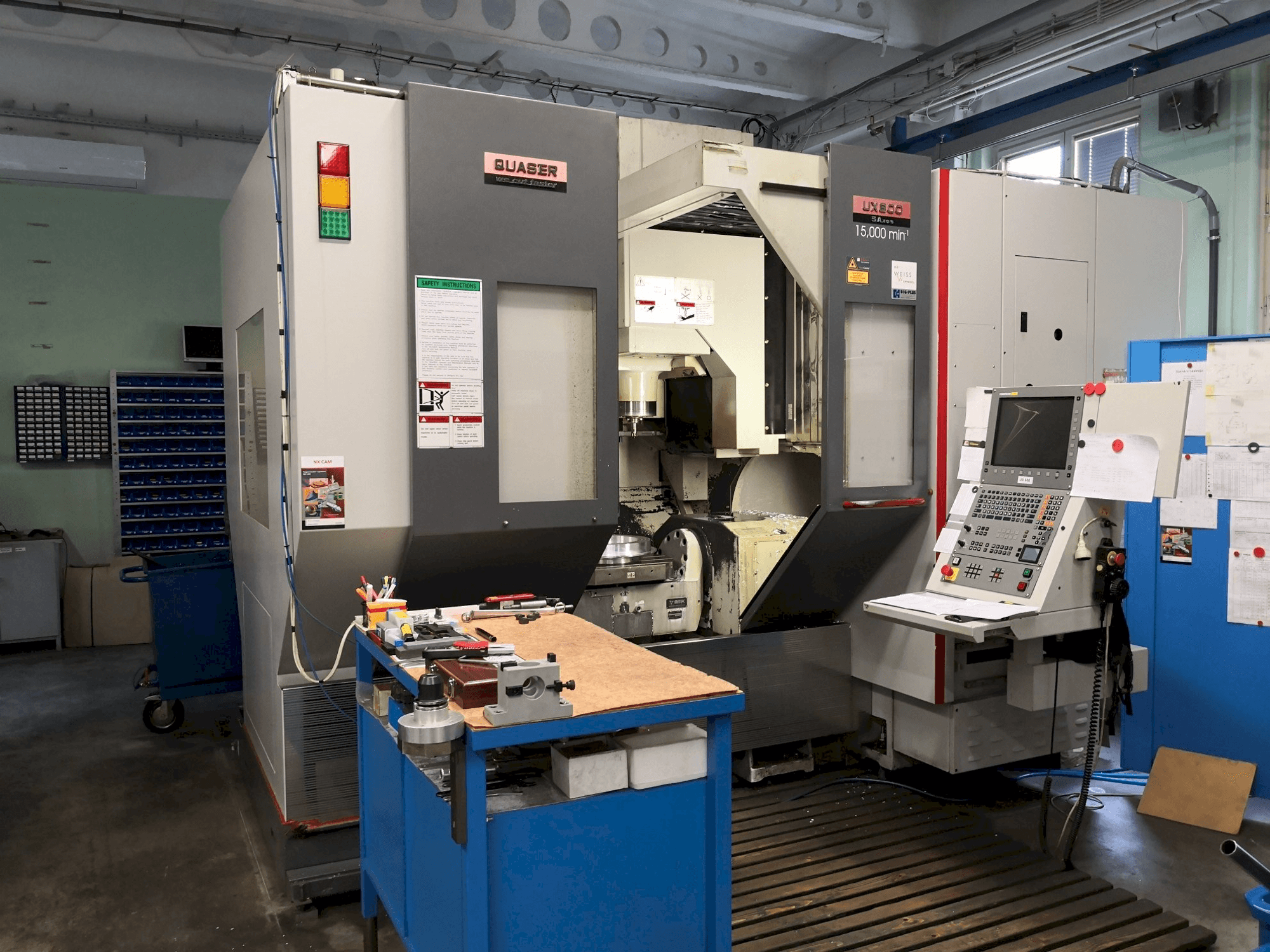

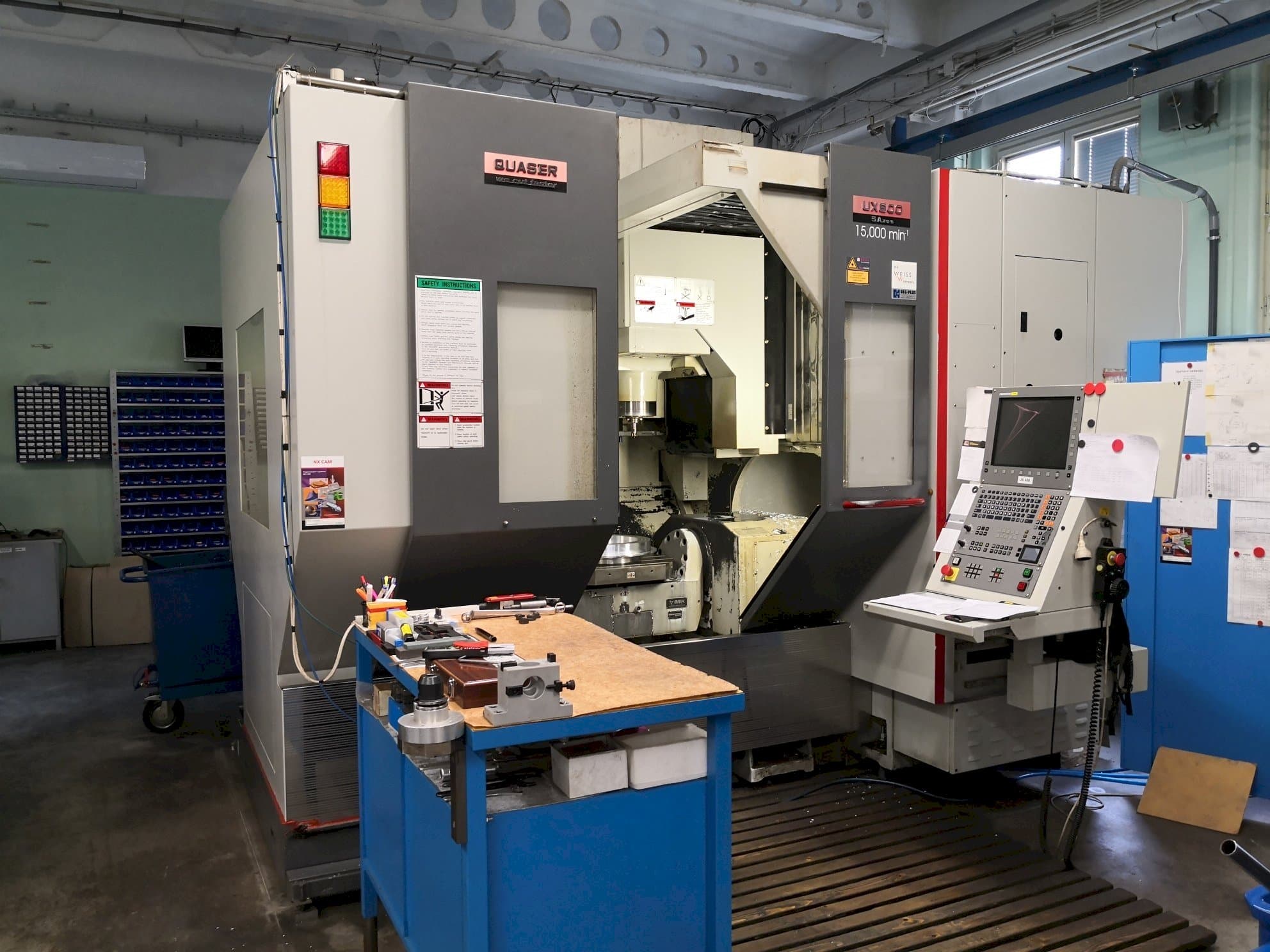

Quaser UX-600 Vertical Machining Center

This Quaser UX-600 Vertical Machining Center was manufactured in 2008 in Taiwan. It has been working for 45701 hours, of which 23090 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit. This 5 axis machine can work with a spindle speed up to 15000 rpm. New spindle installed in 2014.

Overview

brand: Quaser
year: 2008
MODEL: UX-600
production hours: 45701
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Quaser UX-600

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Depth: 3810 mm
Machine Height: 3200 mm
Machine Weight: 12100 kg
Table Length: 600 mm
Table Width: 500 mm

Movement

Number of Axes: 5
X-axis Travel: 885 mm
Y-axis Travel: 800 mm
Z-axis Travel: 500 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Speed: 15000 RPM
Through-spindle Coolant: Yes
Tool Stations: 48

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition.
In operation since 2010
New spindle installed in 2014

Technical Machine Benefits

5 axis machine with direct measurement on all axes
A axis + 30 / - 120 degrees
C axis 350 degrees (continuous)
Max. Swing 640 mm
Max. Workpiece size 640 x 415 mm
Table surface to spindle nose 30-530 mm
Feed force 13. 700 n
Rapid movement 36 m/min
20 bar cooling through spindle
Blum laser tool probe, + renishaw workpiece probe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
