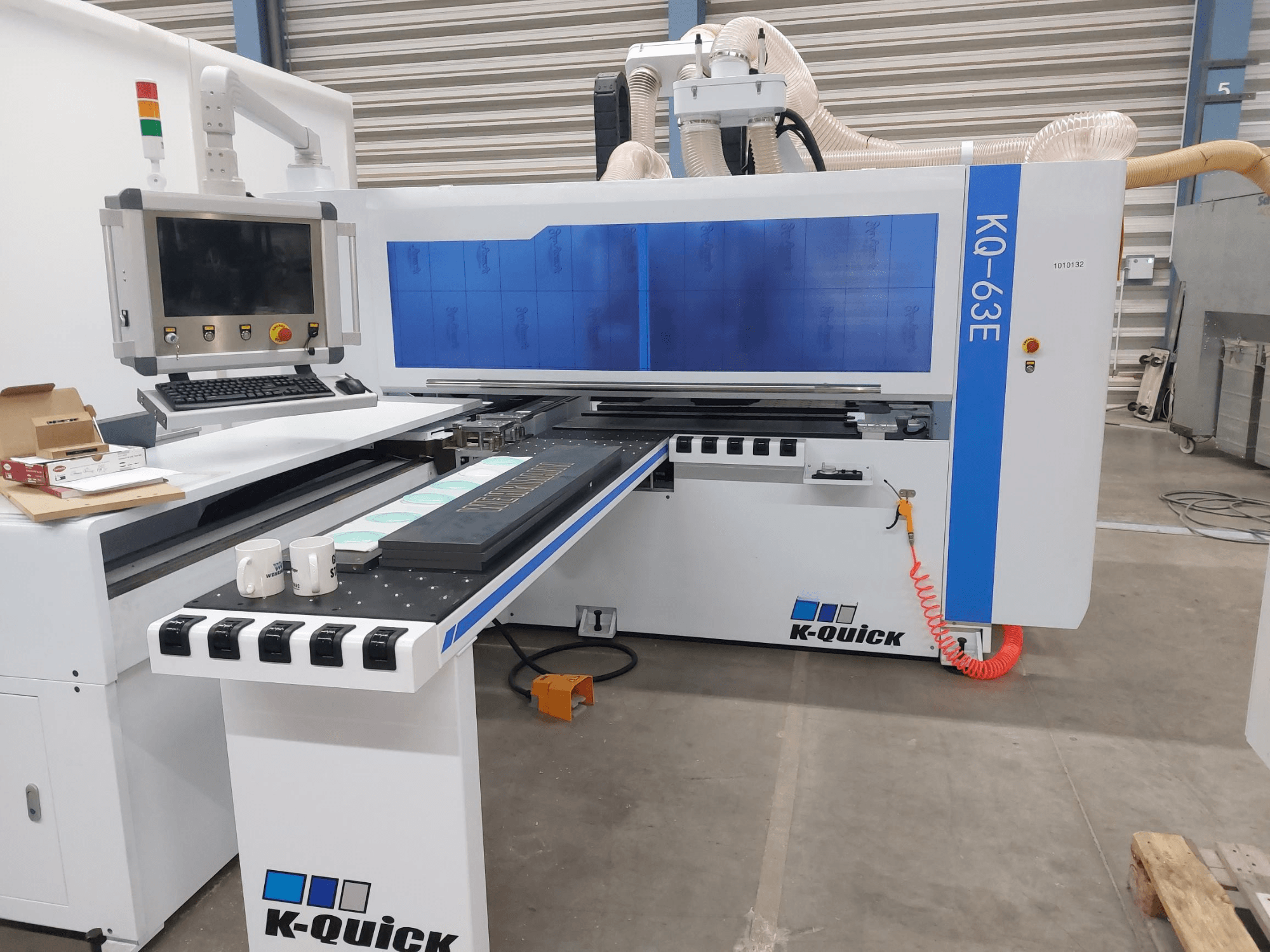

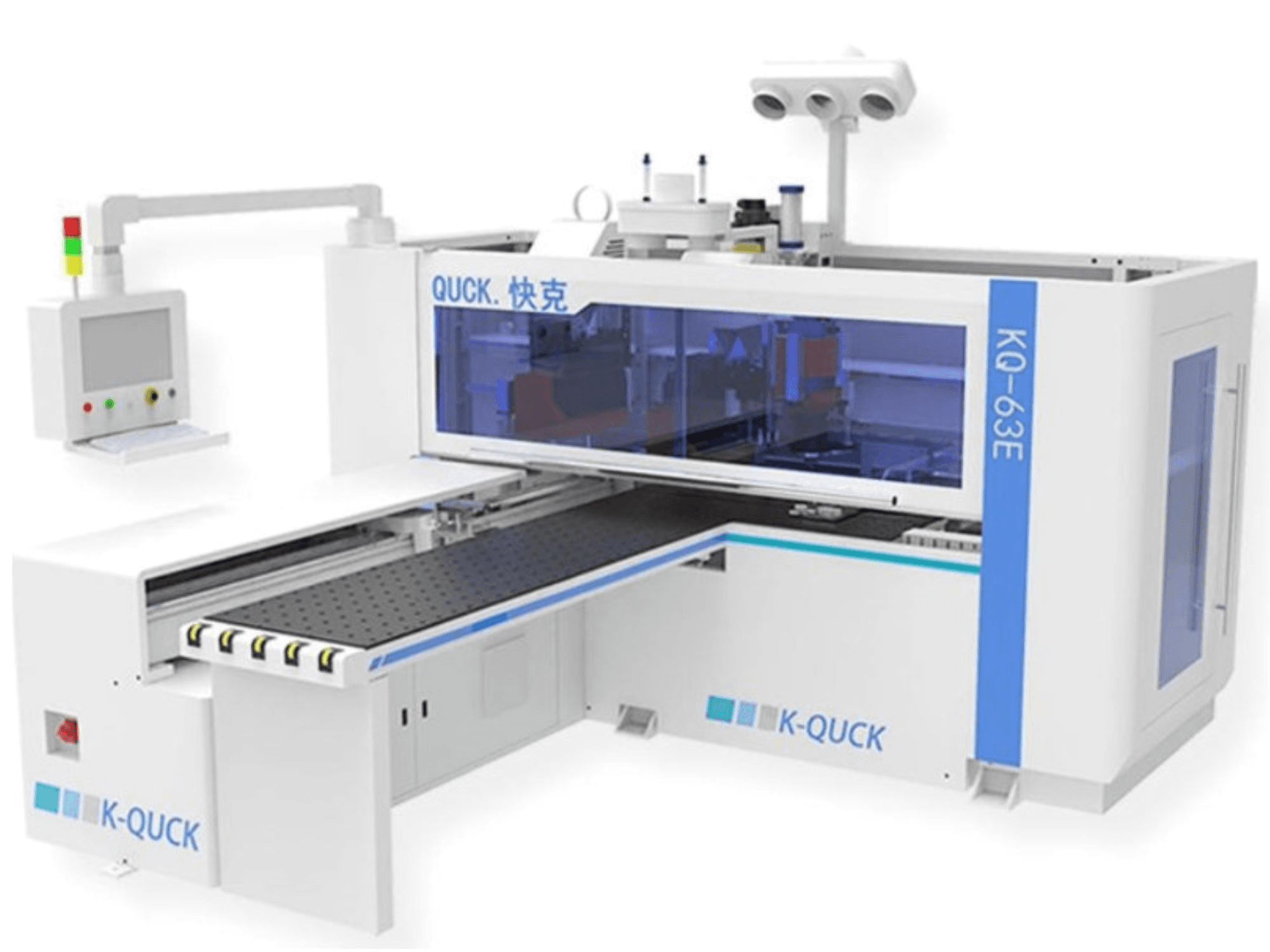

This 3-axis QUICK CNC KQ-63E was manufactured in 2025. It's a multi-spindle drilling machine capable of handling workpieces from 70 to 2800 mm in length and 50 to 1220 mm in width. Features include top and bottom milling spindles, a high-speed tool changer, and brushless servo motors. If you are looking to get high-quality drilling capabilities, consider the QUICK CNC KQ-63E machine we have for sale. Contact us for more information.
Overview
- brand: QUICK CNC
- year: 2025
- MODEL: KQ-63E
- application type: Boring & Drilling (Wood)
- Location: Germany
- machine type: Multi-Spindle Drilling Machine
Technical Information - QUICK CNC KQ-63E
Movement
- Number of Axes: 3
Additional Information
Workpiece length: 70–2800 mm
Workpiece width: 50–1220 mm
Workpiece thickness: 9–60 mm
Minimum workpiece to be machined: 70 x 50 mm
Transport speed X: 135 m/min
Transport speed Y: 90 m/min
Transport speed Z: 25 m/min
Individually controllable spindles: Top 2 x 12 vertical, 4 horizontal / Bottom 1 x 7 vertical
Machine control: Higerman (German)
Top milling spindle: 9 kW, 24,000 rpm
Top tool changer: 5-fold
Bottom milling spindle: 3.5 kW, 18,000 rpm
Motors: Brushless servo motors
Positioning accuracy: 0.03/1000
Repeat accuracy: 0.02/1000
Additional Information
Workpiece return is not included. The price of the machine including the workpiece return is €97,950€
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
