Rambaudi - RAMFAST RF105IT-MIL-RAM-2007-00001

Name: Rambaudi RAMFAST RF105
Brand: Rambaudi
SKU: IT-MIL-RAM-2007-00001
Price: 105000 EUR
Availability: InStock

105,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used RAMBAUDI RAMFAST RF105 For sale | gindumac.com

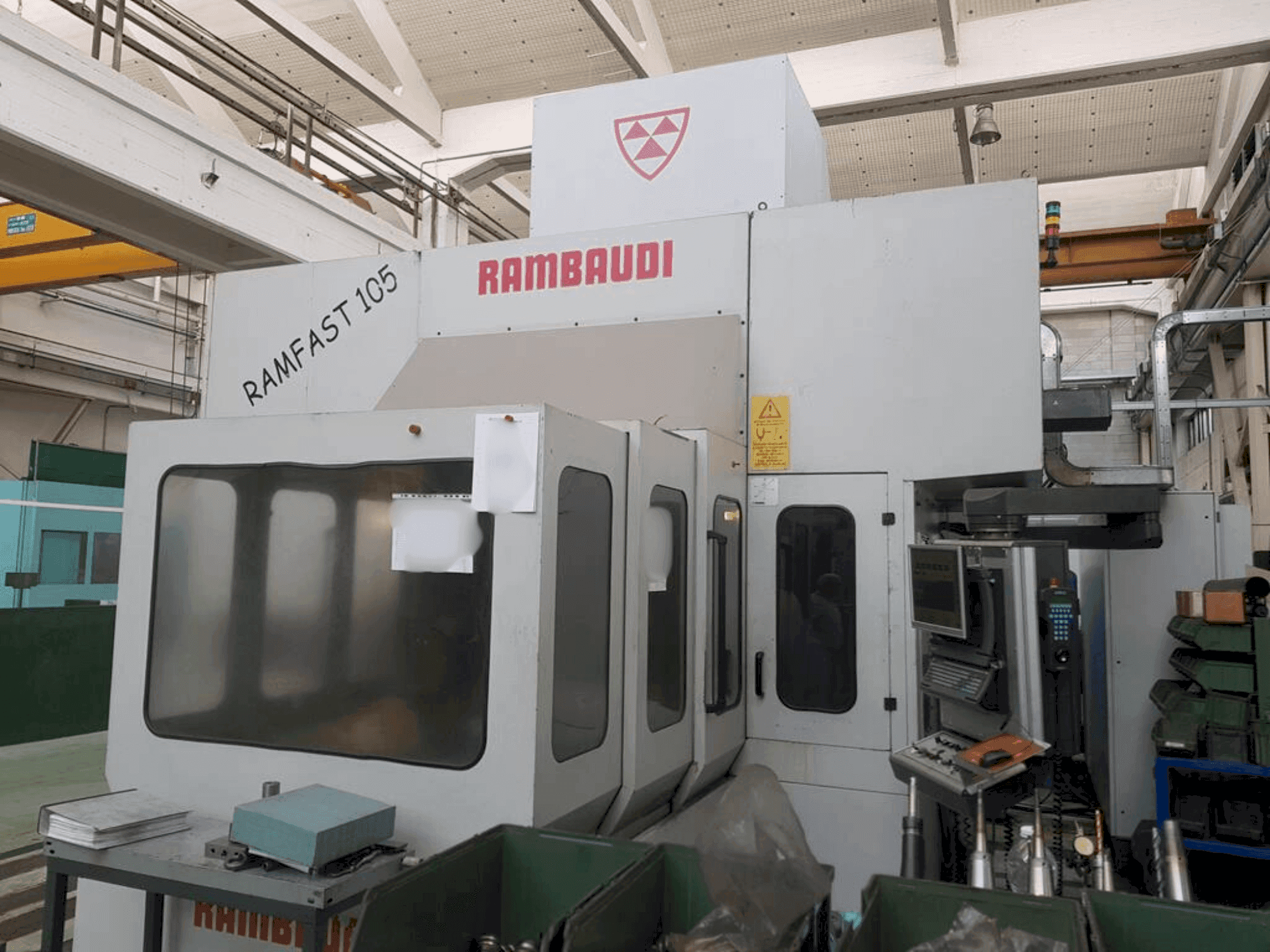

This 5-axis RAMBAUDI RAMFAST RF105 was manufactured in 2007. It features a large working envelope with X, Y, and Z axes of 1600mm, 2500mm, and 900mm respectively. The milling machine includes an electrospindle that reaches up to 24,000 rpm and uses an HSK-A63 cone. Ideal for precision milling, consider this RAMBAUDI RAMFAST RF105 for its robust milling capabilities. Reach out for more information about this machine.

Overview

brand: Rambaudi
year: 2007
MODEL: RAMFAST RF105
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - Rambaudi RAMFAST RF105

General Data

Measurements width: 5618 MM
Measurements depth: 7447 MM
Measurements height: 4450 MM

Main drive

Spindle speed range: 24000 1/MIN
Tool taper: HSK-A63 (DIN 69893)
Number of axis: 5

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 2000+500CU mm
Z-AXIS Movement: 900 mm
AXIS 1 Movement: +/- 105 °

Additional Equipment

- Electrospindle with 24,000 rpm
- Cone HSK-A63 (DIN 69893)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-speed electrospindle, extended y-axis travel
- - Installed power: kva 90
- - Voltage: v +/- 10% 400
- - Frequency: hz +/- 1% 50

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
