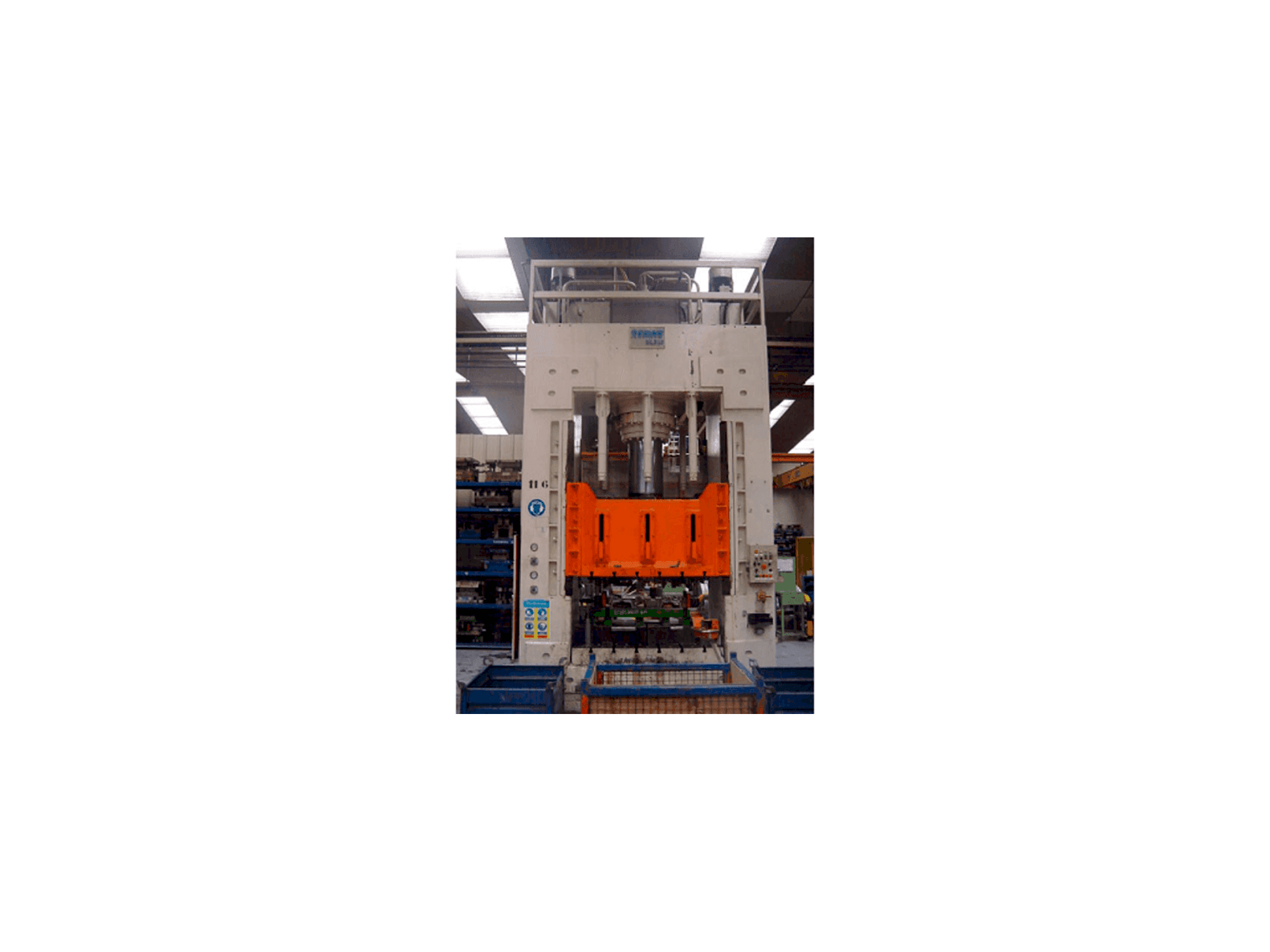

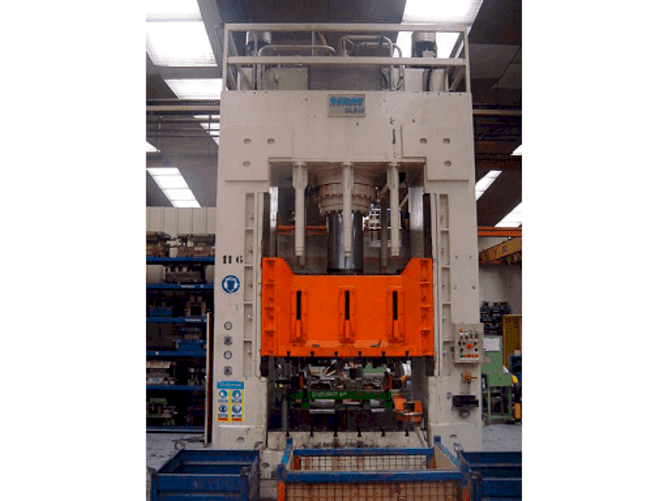

Rehine 91/A300 Stamping machine

This Rehine 91/A300 Stamping machine was manufactured in the year 1989 in Spain. The machine has a stamping force of 3000 kN.

Overview

brand: REHINE
year: 1989
MODEL: 91/A300
application type: Stamping
Location: Spain
machine type: Stamping Machine
availability: Sold

Technical Information - REHINE 91/A300

General Data

Measurements width: 2900 mm
Measurements depth: 1180 mm
Machine weight: 28000 kg

Main drive

Stamping force: 3000 kN
Stroke: 800 mm

Table

Outer length: 1200 mm
Outer width: 700 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working height: 740mm
- - Maximum opening between tables: 1400mm
- - Maximum cushion force: 80t
- - Maximum cushion pressure: 255bar
- - Cushion stroke: 500mm
- - Maximum cushion opening: 1400mm
- - Minimum cushion opening: 600mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
