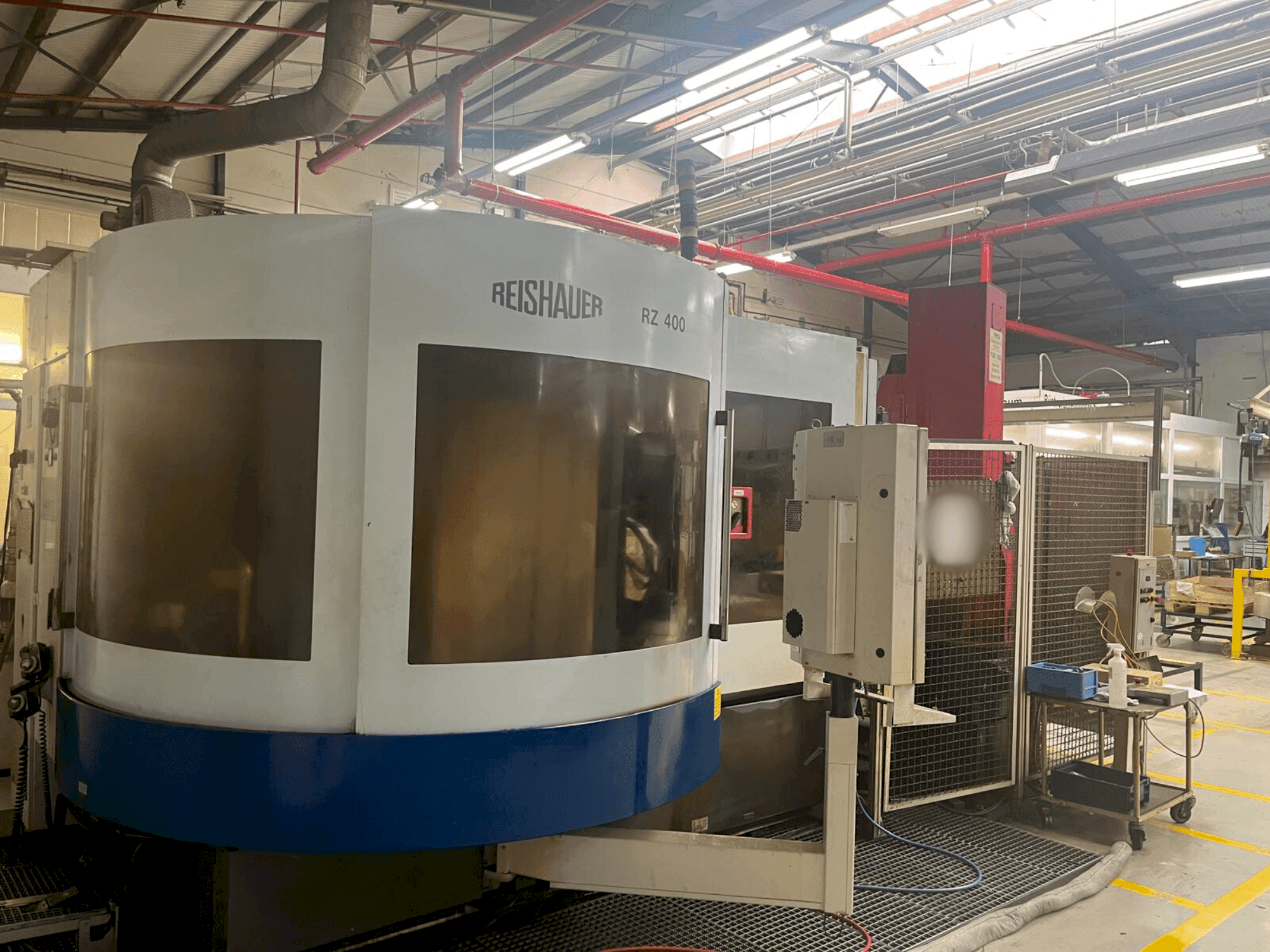

Front view of Reishauer RZ 400  machine

Reishauer - RZ 400DE-GRI-REI-2005-00001

205,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Reishauer RZ 400 grinding machine was manufactured in 2005. It features a Siemens 840D control system, can handle wheel diameters up to 400 mm, and wheel widths up to 300 mm. With a maximum workpiece weight of 300 kg and spindle speeds up to 4,700 1/min, it's ideal for varied grinding tasks. Dimensions are 4.9 m x 3.7 m x 3.2 m, weighing 11.5 tons. For more information about this grinding machine, please reach out to us.

Overview

  • brand: Reishauer
  • year: 2005
  • MODEL: RZ 400
  • production hours: 25639
  • application type: Grinding
  • Location: Germany
  • machine type: Grinding Machine
  • availability: Immediately
  • control unit brand: Siemens

Technical Information - Reishauer RZ 400

General Data

  • Measurements width: 3700 MM
  • Measurements depth: 4900 MM
  • Measurements height: 3200 MM
  • Machine weight: 11500 KG

Control Unit

  • Brand: Siemens
  • Model: 840D

Main drive

  • Spindle speed range: 0 - 4700 1/MIN
  • Spindle motor power: 10 KW

    Additional Equipment

    • - Counter spindle for tailstock (W-axis)
    • - Workpiece spindle drive (C-axis) / Motorised grinding spindle (B1) / Spindle speed infinitely variable 1100-4700 min-1
    • - Cooling nozzle (P1 axis)
    • - Reinforced flushing device for flushing away the grinding sludge
    • - Grinding sludge feed (X-axis)
    • - Shift axis (Y1) / Feed (Z1f)
    • - Swivelling axis (A1) for automatic adjustment of the grinding worm / Swivelling axis (C1) for swivelling the tool carrier
    • - Hydraulic equipment: free-standing unit with 3-point support control / Tank capacity approx. 30 litres
    • - Centre 80’ MK3
    • - Nozzle 5’; width 40mm / Nozzle 5’; width 4e 70m

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Wheel diameter: 400 mm
        • - Max wheel width: 300 mm
        • - Module: 0. 2 - 8
        • - Number of teeth: 5 - 999
        • - Workpiece weight: 300 kg
        • - Max helix angle: +- 45 degrees
        • - Clamping length: 60 - 700 mm
        • - Siemens 840 d with reishauer rolling module and plc s7
        • - Balancing mandrel diameter 28mm
        • - Probe for centring device for workpieces with d 250mm and more, module 1. 0 to 2. 0; module 2. 0 to. 0 and module 4. 0 and larger
      • Qualitative Machine Benefits:
        • - Oil mist bonnet
        • - Air conditioning unit
        • - Grinding worm profiling device rp 160-2

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
