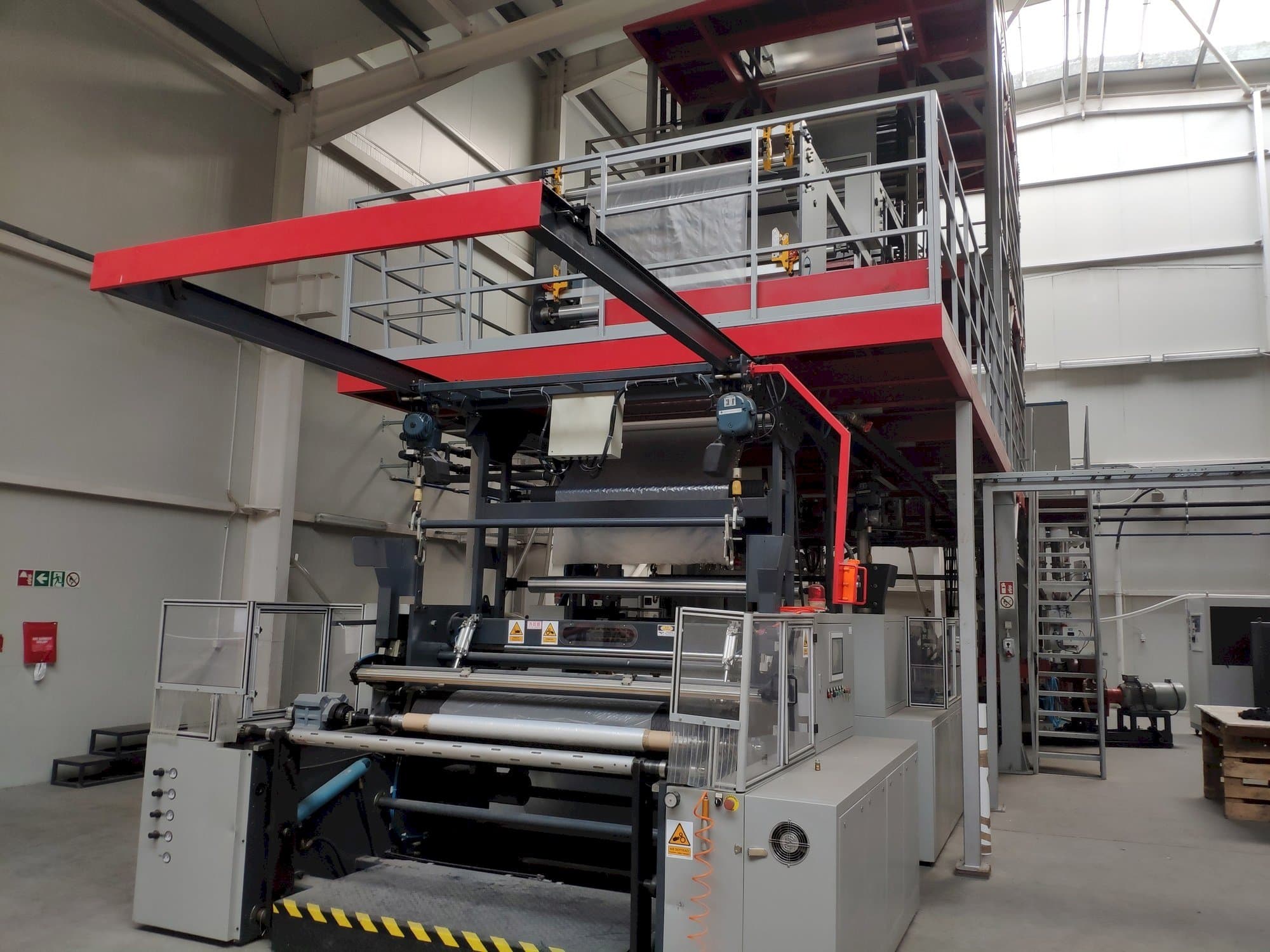

ROLBATCH 1600 Film Extrusion Machine

This ROLBATCH 1600 Film Extrusion Machine was made in Germany in the year 2015. It is equipped with a B&R control unit. It incorporates 5 layers and can operate with a film extraction and rotation system 360°. It includes several additional equipments.

Overview

brand: ROLBATCH
year: 1994
MODEL: 1600
application type: Extrusion
Location: Poland
machine type: Film Extruder

Technical Information - ROLBATCH 1600

General Data

Measurements width: 16000 mm
Measurements depth: 8300 mm
Measurements height: 10500 mm
Machine weight: 38000 kg

Media

Main electronic connection: 380V / 50 Hz
Power consumption: 486 kW

Additional Information

Additional equipment

Single-screw extruders 80 mm, L / D = 30: 1, 75 kW with inverter, - layers A and E, Maximum extruder output for LDPE processing: 170 kg / h - 2 pieces
Single-screw extruders 50 mm, L / D = 30: 1, 22 kW with inverter, - layers B and D Maximum extruder output for LDPE processing: 40 kg / hour - 2 pieces
Single-screw extruder 60 mm, L / D = 30: 1, 37 kW z - layer C. Maximum extruder output for LDPE processing: 90 kg / hour - 1 piece
Manual screen changers for extruders A, B, C, D, E - 5 sets
Head for 5-layer co-extrusion film - 1 piece
The cooling system of the interior of the balloon "IBC" - 1 piece
Automatic foil thickness measurement and control system: automatic air ring, automatic film thickness measuring system (PlastControl), automatic film thickness control system 1 set
Calibration basket - 1 set
Closing frame - 1 set
Film extraction and rotation system 360 ° - 1 set
Second water-cooled extraction - 1 set
Tower - 1 set
III-1700 automatic double winder 3rd generation - 1 set
Central computer controlling the work of the line - 1 set
Gravimetric feed system for the Irish brand TSM: 3 extruders x 4 components, 2 extruders for 1 component – 1 set
Air compressor - cooperating with 2 lines - 1 piece

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
