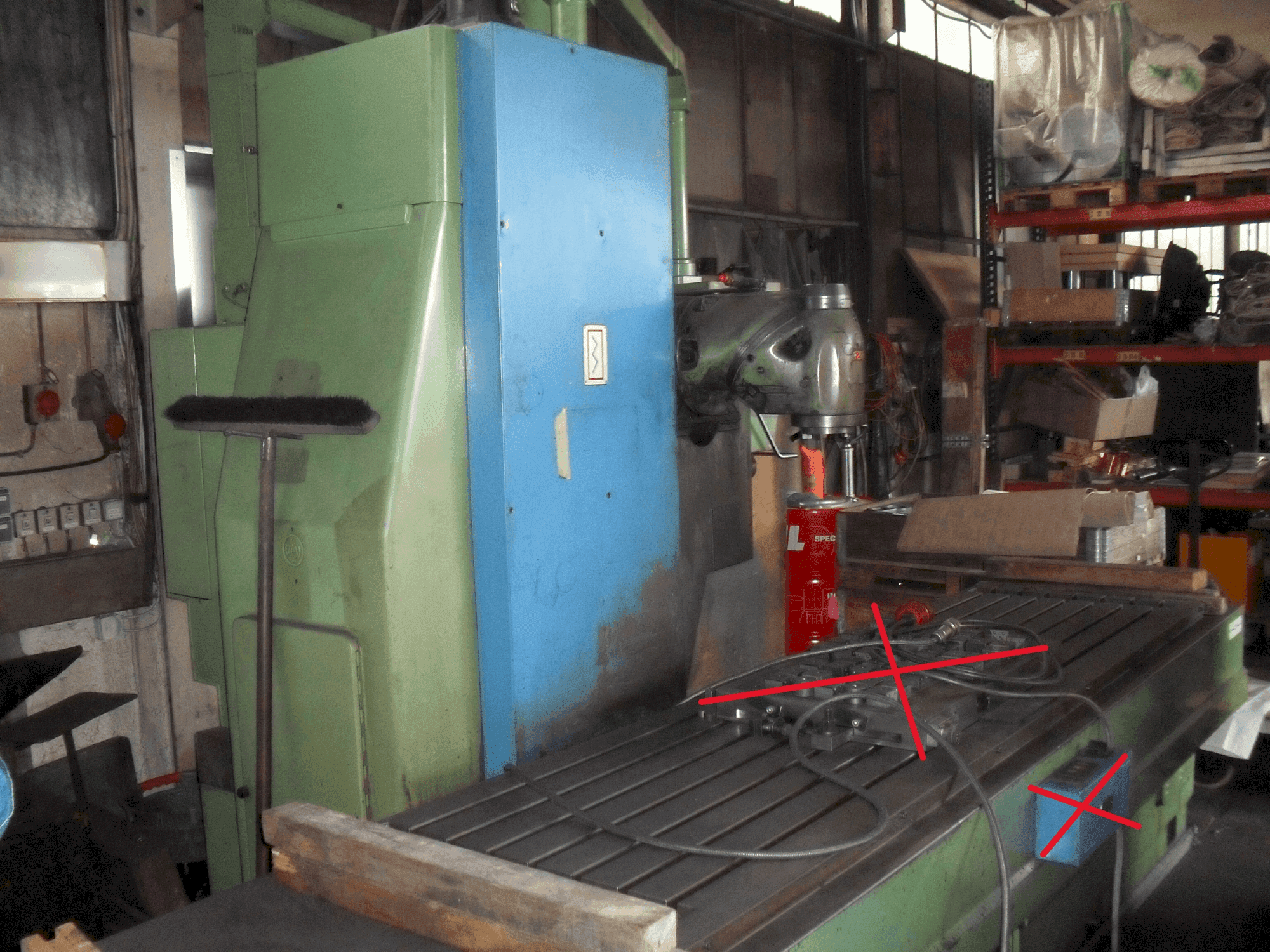

Used Milling Machine SACHMAN RP-3 - 1984 - for sale | gindumac.com

This 3-Axis milling machine was manufactured in 1984. The Sachman RP-3 offers robust travel paths, including an x-axis ranging from 1800 to 2500 mm and a y-axis of 815 mm, ensuring versatility in handling various workpiece sizes. It features a maximum feed speed of 5000 mm/min and a rapid traverse rate of 8000 mm/min, promoting efficient processing times. Additionally, the milling slide capabilities allow for variable speeds up to 2250 rpm, making the Sachman RP-3 machine we have for sale essential for precise milling operations. Contact us for additional details or inquiries.

Overview

brand: SACHMAN
year: 1984
MODEL: RP 3
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold

Technical Information - SACHMAN RP 3

General Data

Machine weight: 10000 KG

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 1800/2500 mm
Y-AXIS Movement: 815 mm
Z-AXIS Movement: 802/1012 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motor torque x-axis: 19. 7 nm
- - Motor torque y and z-axis: 14. 2 nm
- - Max. Feed speed: 5000 mm/min
- - Rapid traverse: 8000 mm/min
- - Axial pressure x-axis: 1200 kg
- - Axial pressure y and z-axis: 1000 kg
- - Clamping table: usable area 2000/2700x730mm, max. Permissible load 3000kg
- - Milling slide: speed at constant torque 10-85 rpm, speed at constant power 85-2250 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
