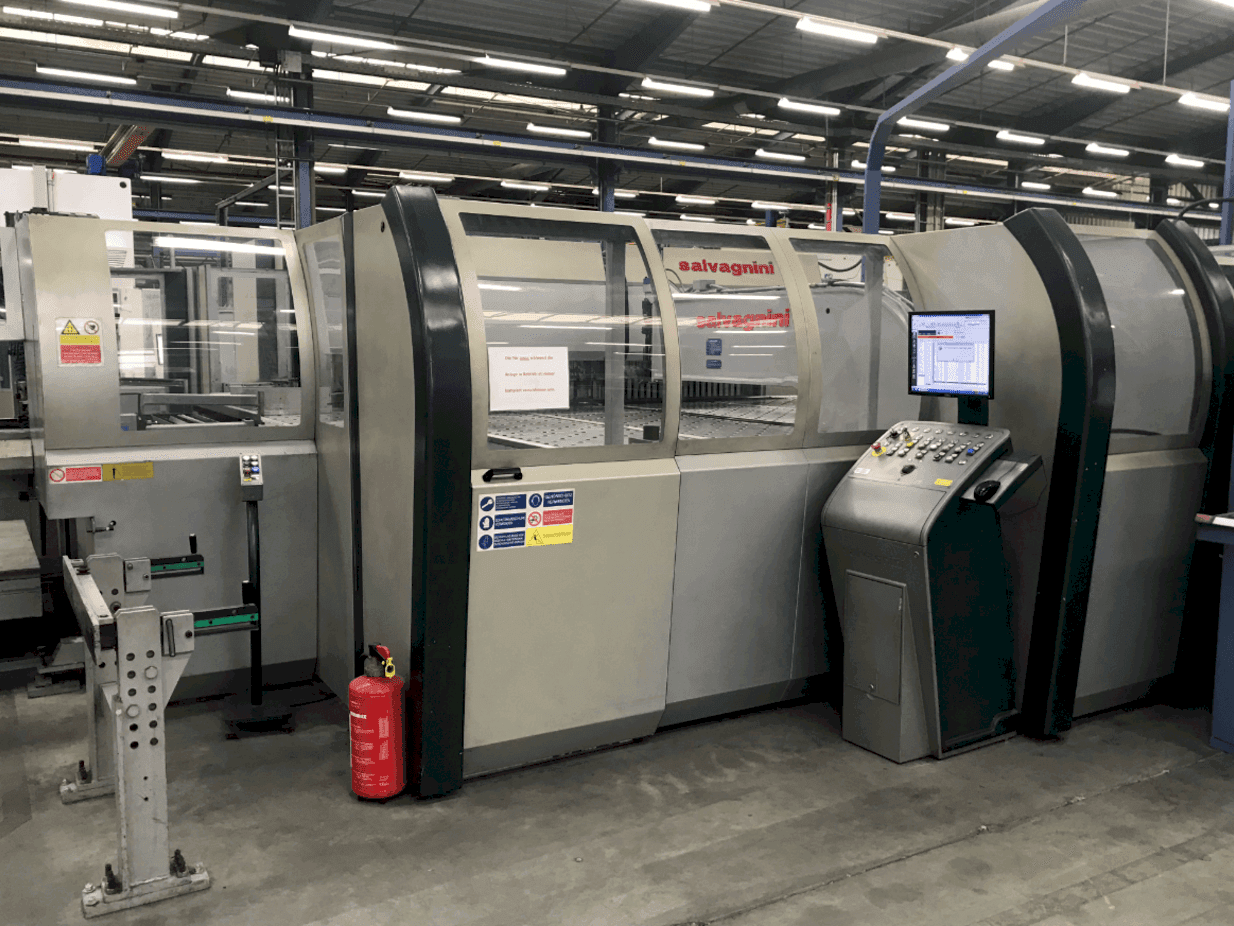

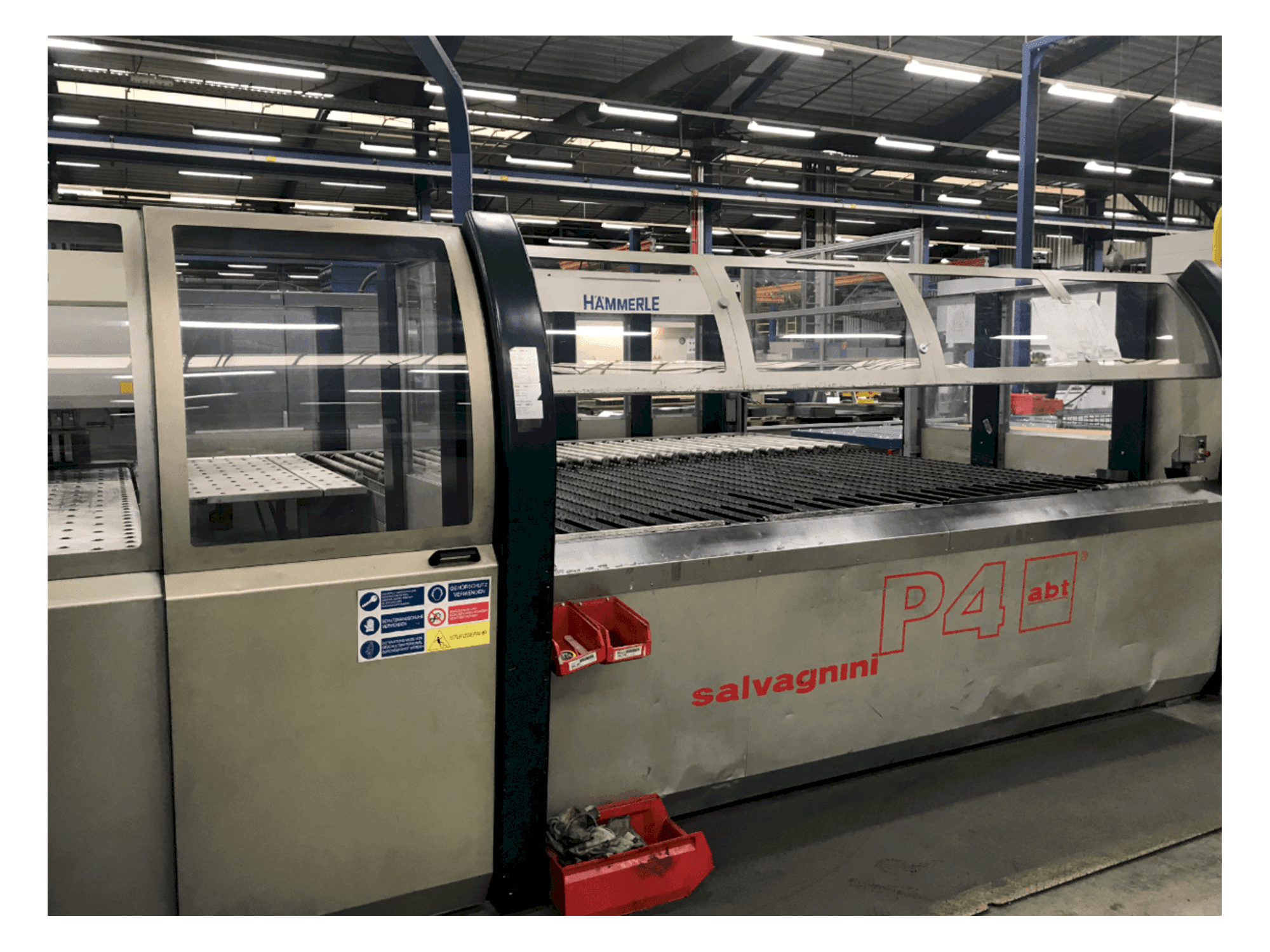

Front view of Salvagnini S4S-40 / P4-3216 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Salvagnini S4S-40 / P4-3216

Photo Gallery

Salvagnini - S4S-40 / P4-3216DE-PUN-SAL-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Salvagnini S4S-40 / P4-3216 Punching and Bending Machine

This Salvagnini S4S-40 / P4-3216 Punching and Bending Machine was made in 2004. The punching machine has been working for 59643 hours, and the bending machine for 54423 hours. This machine can work with a bending length 3000 mm, and a maximum sheet thickness 5 mm. This machine is one of Salvagnini's most popular solutions, it punches, shears and bends sheet metal totally automatically. Selected Spare part, and various tools are included.

Overview

brand: Salvagnini
year: 2004
MODEL: S4S-40 / P4-3216
production hours: 59643
application type: Punching
Location: Germany
machine type: Punch-Laser Combination

Additional Information

Additional equipment

Selected Spare parts
Various Tools

Machine Benefits

Qualitative Machine Benefits

Dimensional tolerance depending on sheet thickness: +/- 0. 1 mm

Technical Machine Benefits

S4s-40: working area max. : 4064 x 1524 mm
Board size min. : 370 x 300 mm
Diagonal max. : 4340 mm
Sheet thickness max. : 5 mm
P4-3216: blank size max. : 4064 x 1524 mm - blank size min. : 370 x 300 mm
Diagonal max. : 3500 mm
Sheet thickness max. : 0,5 - 2,5 mm
Dimensional tolerance depending on sheet thickness: +/- 0. 1 mm
Bending height max. : 165 mm - bending height min. 90°: 5x sheet thickness - bending height min. 180°: 7x sheet thickness
Angle accuracy: +/- 1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
