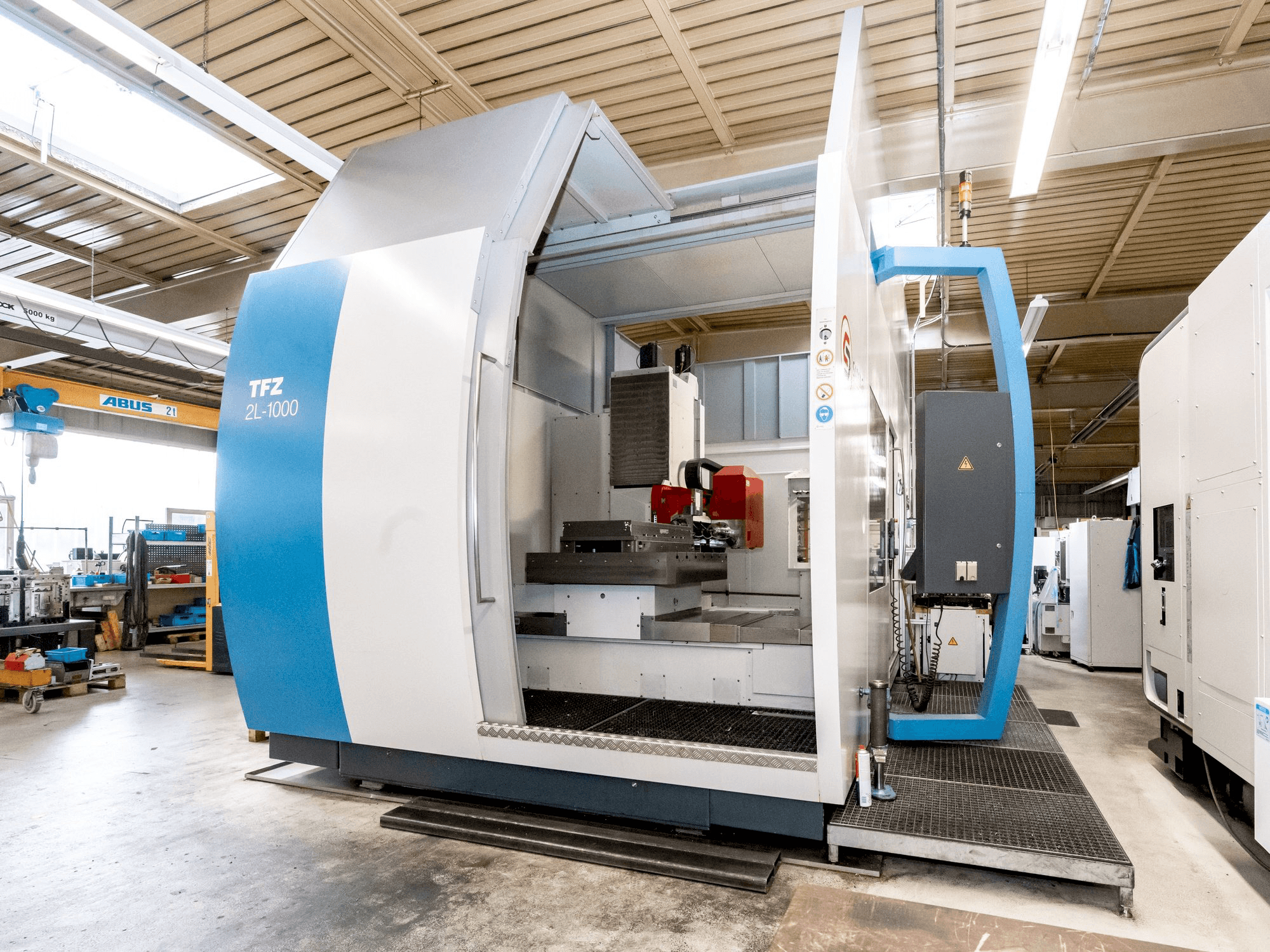

Front view of SAMAG TFZ 2L-1000  machine

SAMAG - TFZ 2L-1000DE-DRI-SAM-2015-00001

269,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This SAMAG TFZ 2L-1000 Drilling machine was made in 2015 in Germany and has 13585 production hours. It is equipped with a HEIDENHAIN control unit. It has a NC rotary table B-axis with 1100x1100mm (7t) and an a-axis as drilling and milling unit with swivel range -30/+15°. The machine has a reinforced main spindle drive with spindle speed 6000 rpm. As additional equipment it comes with tool changer for ISO 40, low-maintenance oil mist extraction system, traveling support steady rests for drilling diameters up to 25.5mm, drip tray with step grate for X-axis 1600mm and rinsing gun.


  • brand: SAMAG
  • year: 2015
  • MODEL: TFZ 2L-1000
  • production hours: 13585
  • application type: Drilling
  • Location: Germany
  • machine type: Drilling machines
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - SAMAG TFZ 2L-1000

General Data

  • Measurements width: 6300 MM
  • Measurements depth: 7400 MM
  • Measurements height: 4050 MM
  • Machine weight: 30000 kg (with cabinet)

Control Unit


Main drive

  • Spindle speed range: 6000 1/MIN
  • Tool taper: ISO 40


  • X-AXIS Movement: 1600 mm
  • Y-AXIS Movement: 1050 mm
  • Z-AXIS Movement: 1100 mm


  • Max weight: 5 kg
  • Max tool length: 250 mm

    Additional Equipment

    • - tool changer for ISO 40
    • - low-maintenance oil mist extraction system
    • - rinsing gun
    • - drip tray with step grate for X-axis 1600mm
    • - traveling support steady rests for drilling diameters up to 25.5mm
    • - Various drills (single-lip drills and indexable insert drills): Drill grinding machine / CAM software licence: GIBcam-DRILL software. (A fee could be charged for the transfer of the licence, this has to be clarified with GIBCAM. the buyer is responsible for the transfer.).
    • - Optional for extra charge: Magnetic clamping plate with its own control cabinet (SAV brand,, dimensions 1200x600mm).

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Travel x-axis 1600mm
        • - Nc rotary table b-axis 1100x1100mm, 7t
        • - A-axis; drilling and milling unit; swivel range -30/+15°
        • - Max. Tool length 250mm
        • - Max. Tool weight 5kg
        • - Calibration ball diameter 25mm
      • Qualitative Machine Benefits:
        • - Reinforced main spindle drive

      Extra information

      • - Scope of delivery: Machine and measuring probe. WxDxH with electrical cabinet approx. 6300x7400x4050mm // weight with electric cabinet 30.000kg.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
