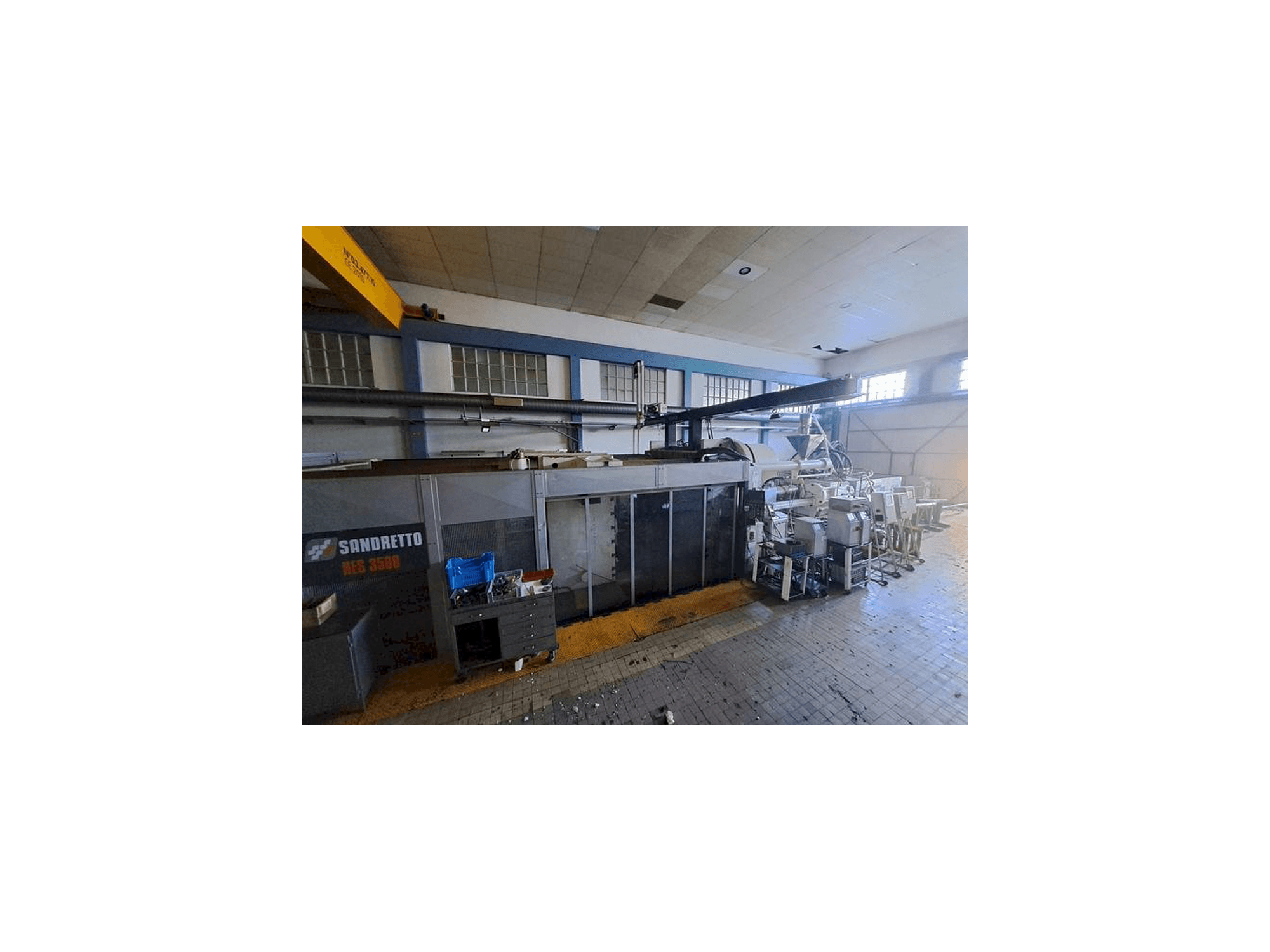

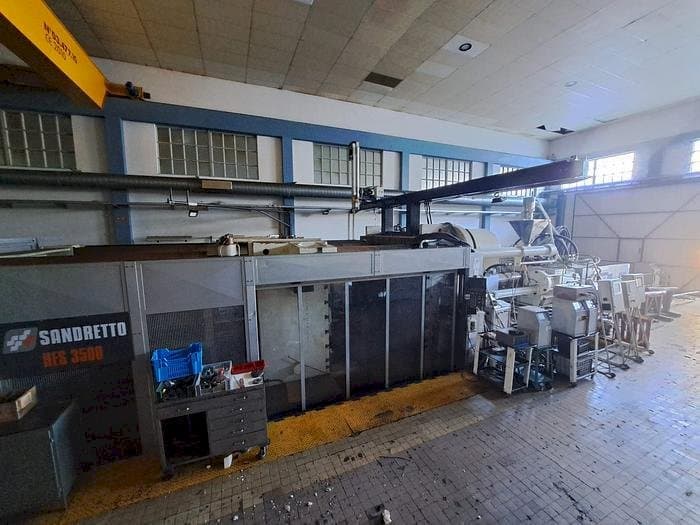

Front view of SANDRETTO HES 3500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SANDRETTO HES 3500

Photo Gallery

SANDRETTO - HES 3500PT-INJ-SAN-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
SANDRETTO HES 3500 injection moulding machine

This SANDRETTO HES 3500 injection moulding machine was built in the year 2010.

Overview

brand: SANDRETTO
year: 2010
MODEL: HES 3500
application type: Injection Moulding
Location: Portugal
machine type: Hydraulic Injection Moulding Machine

Technical Information - SANDRETTO HES 3500

Control Unit

Model: SEF 2000

Injection Unit

Screw diameter: 200 mm
Injection pressure: 1670 Bar

Clamping unit

Opening stroke: 2300 mm
Mould height min: 1000 mm
Mould height max: 2200 mm

Additional Information

Additional equipment

MASTER MATTIC RB 500CN robot.
Oil tank capacity: 8000 liters.

Machine Benefits

Qualitative Machine Benefits

Uniform heat distribution and quality in the injection molding process.
No load cycle (euromap): 3. 6 s.

Technical Machine Benefits

High plasticising capacity and speed, robust clamping force.
L/d ratio: 20.
Theoretical injection volume: 36110-18000 cm³.
Injection ratio: 3147 cm³/s.
Plasticising speed: 0-110 rpm. // plasticising speed with simultaneous plasticising: 0-55 rpm.
Total heating power: 174 kw.
Plate dimensions (horizontal x vertical): 3360x3060 mm.
Column diameter: 470 mm.
Pulling force: 550 kn.
Pull-out stroke: 600 mm.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
