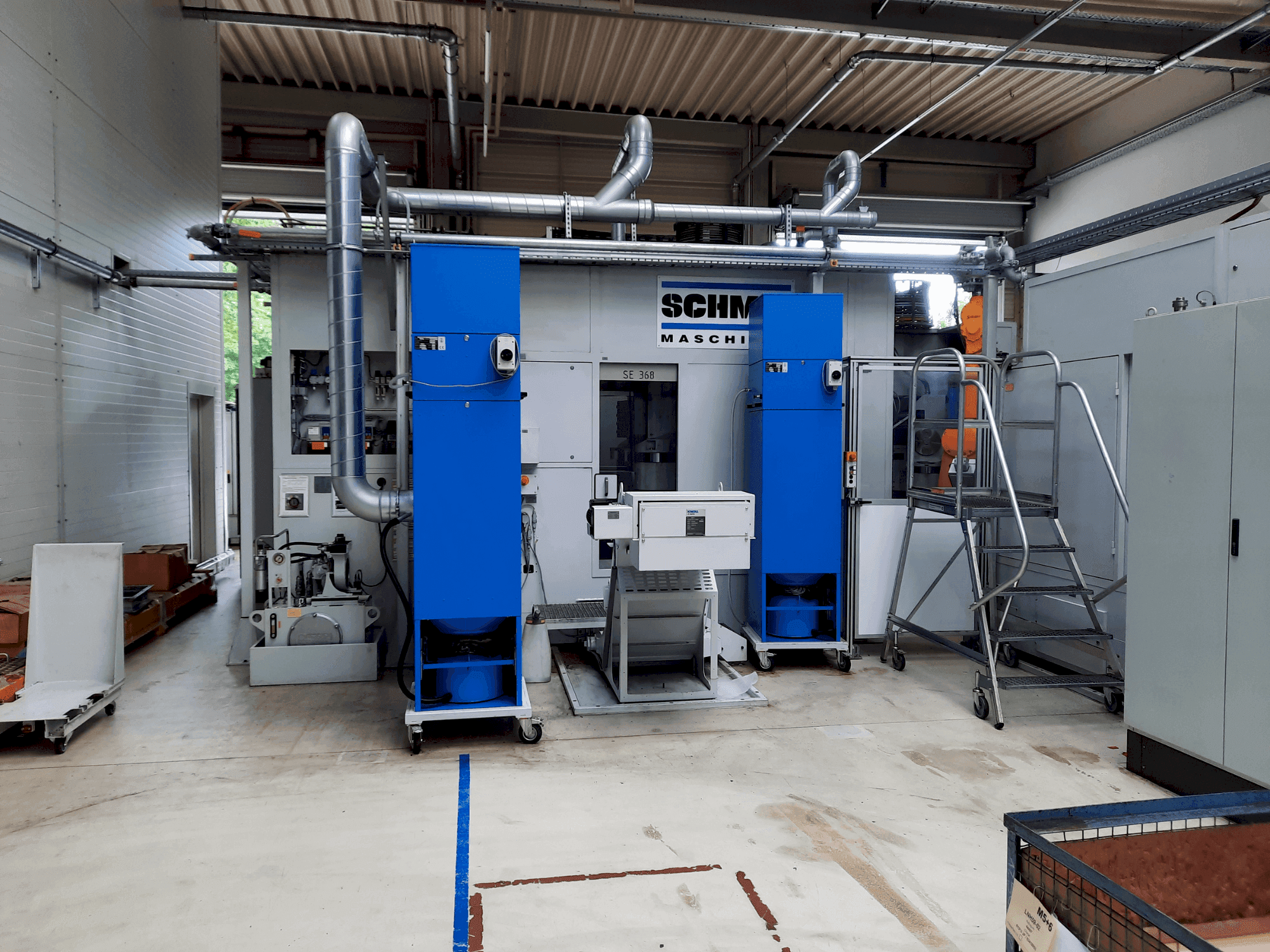

Front view of SCHMID SE 368  machine

SCHMID - SE 368DE-MIL-SCH-2019-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis SCHMID SE 368 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control, rapid traverse rates of 75/40/90 m/min in X/Y/Z, and a shuttle table. Equipped with dual NC rotary swivelling units, a 30-fold tool changer, and HSK-A63 tool holder. Max speed is 10,000 rpm. Includes a chip conveyor and recooling system. A great opportunity to buy this SCHMID SE 368 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.

Overview

  • brand: SCHMID
  • year: 2019
  • MODEL: SE 368
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - SCHMID SE 368

General Data

  • Machine weight: 21000 kg

Control Unit

  • Model: Sinumerik 840 D SL
  • Brand: SIEMENS

Main drive

  • Number of spindles: 2
  • Spindle speed range: 50 - 24000 rpm 1/MIN
  • Tool taper: HSK-A63

Movement

  • X-AXIS Movement: 400 mm
  • X-AXIS Rapid traverse: 75 m/min
  • Y-AXIS Movement: 450 mm
  • Y-AXIS Rapid traverse: 40 m/min
  • Z-AXIS Movement: 550 mm
  • Z-AXIS Rapid traverse: 90 m/min

Tools

  • Max tool diameter: 75 mm

    Additional Equipment

    • - Double spindle
    • - Shuttle table
    • - 2x 2 NC rotary swivelling units
    • - Switch cabinet system
    • - Chip conveyor Knoll 600K-1 2019
    • - Hydraulic unit
    • - Filter system
    • - Recooling system Lahntechnik KOF1803-100 2020
    • - Number of tool magazine positions: 2x 30
    • - Rotary table (NC / hydraulic clamping) : n x 360o, vertical axis,

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Ibag three-phase main drive : s1-100% 40 kw / s6-40% 52 kw
        • - Key performance data working spindle kw s1 : 3 12 29 40 40
        • - Spindle speeds approx. 1/min : 1,000 5,000 10,000 20,000 24,000
        • - Torque approx. Nm : 27 27 27 19 17
        • - Tool diameter with free neighbouring positions : 125 mm
        • - Swivelling table (nc / hydraulic indexing) : vertical axis, 0° - 180°, max. Rotation angle in connection with 5th axis : +/- 150°
        • - Rotary table diameter : 400 mm, rotary table (horizontal axes u1-u2/ v1-v2), rotary table (nc / hydraulic clamping) : n x 360o, vertical axis, rotary table diameter : 330 mm
        • - Pallet clamping : 2 zero point clamping modules/ table
        • - Position measuring systems : absolute position measuring systems
        • - Position tolerance x - y - z : 0. 008 mm (vdi/dgq 3441)

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
