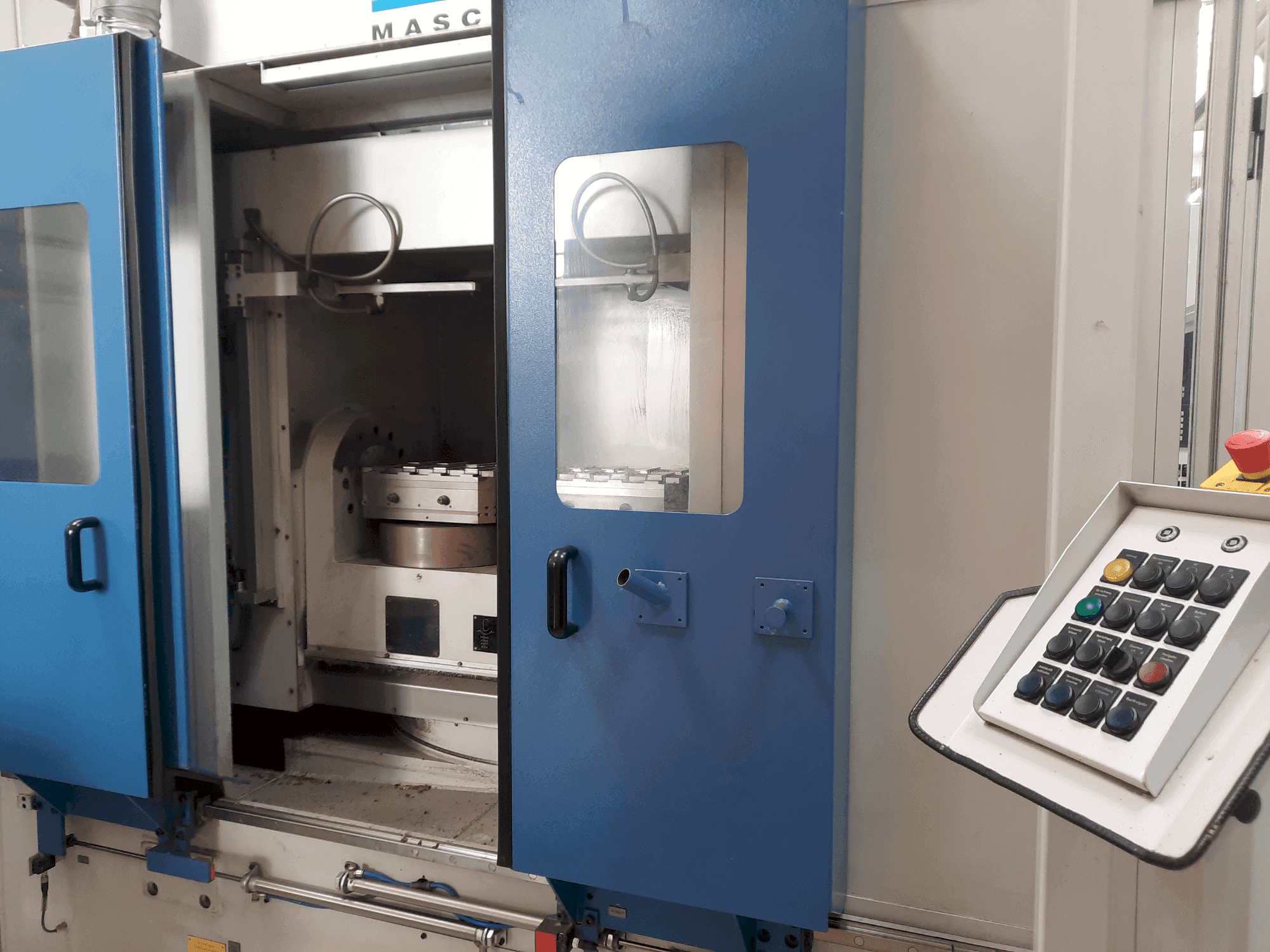

Front view of SCHMID SE 371  machine

SCHMID - SE 371DE-MIL-SCH-2019-00001

415,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis SCHMID SE 371 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control system, a shuttle table, and a 30-position tool changer with HSK-A63 tool holders. Additional highlights include a chip conveyor by Knoll and a recooling system by Lahntechnik. A great opportunity to buy this SCHMID SE 371 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.

Overview

  • brand: SCHMID
  • year: 2019
  • MODEL: SE 371
  • production hours: 5936
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - SCHMID SE 371

General Data

  • Machine weight: 10000 kg

Control Unit

  • Brand: SIEMENS
  • Model: Sinumerik 840 D SL

Main drive

  • Spindle speed range: 50 - 10000 rpm 1/MIN
  • Tool taper: HSK-A63
  • Number of axis: 5

Movement

  • X-AXIS Movement: 715 mm
  • X-AXIS Rapid traverse: 50000 mm/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Rapid traverse: 50000 mm/min
  • Z-AXIS Movement: 500 mm
  • Z-AXIS Rapid traverse: 50000 mm/min

Turret

  • Number of turrets: 1

Tools

  • Number of index: 30
  • Max weight: 8 kg
  • Max tool diameter: 80 mm/ 125 mm with free secondary positions
  • Max tool length: 245 mm

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Shuttle table
    • - 2x NC rotary swivelling unit
    • - Chip conveyor Knoll 600K-1/II 2019
    • - Filter system
    • - Recooling system Lahntechnik KOF1803-100 2020
    • - Hydraulic unit
    • - Switch and control cabinets
    • - Rotary table rotation axes NC/hydr. clamping : 360 x n° degrees
    • - Rotary table diameter : 284 mm,

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Swivelling range: -22/+95°
        • - Traverse range x - y - z : 715 - 400 - 500 mm
        • - Three-phase main drive : 20/26 kw at s1 100% / s6 40% ed
        • - Key performance data working spindle kw / s1 / s6 : 0. 5/0. 7 10/14 20/26 20/26
        • - Spindle speeds approx. 1/min : 50 1,000 1,850 10,000
        • - Torque approx. Nm s1/s6 : 100/135 100/135 100/135 24/31
        • - Acceleration x - y - z : 4-6-9 m/sec2
        • - Tool change time : approx. 2. 5 sec.
        • - Horizontal swivelling range nc/hydr. Clamping : - 22° / + 95° degrees
        • - Centre distance of the rotary axes / chuck : 430 mm
      • Qualitative Machine Benefits:
        • - Digital inverter system
        • - Space requirement incl. Operation : approx. 3. 5 x 5 m2

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
